Square D 9422CSF50 Cable Operating Mechanism 250 Amp Circuit Breaker

Product Description

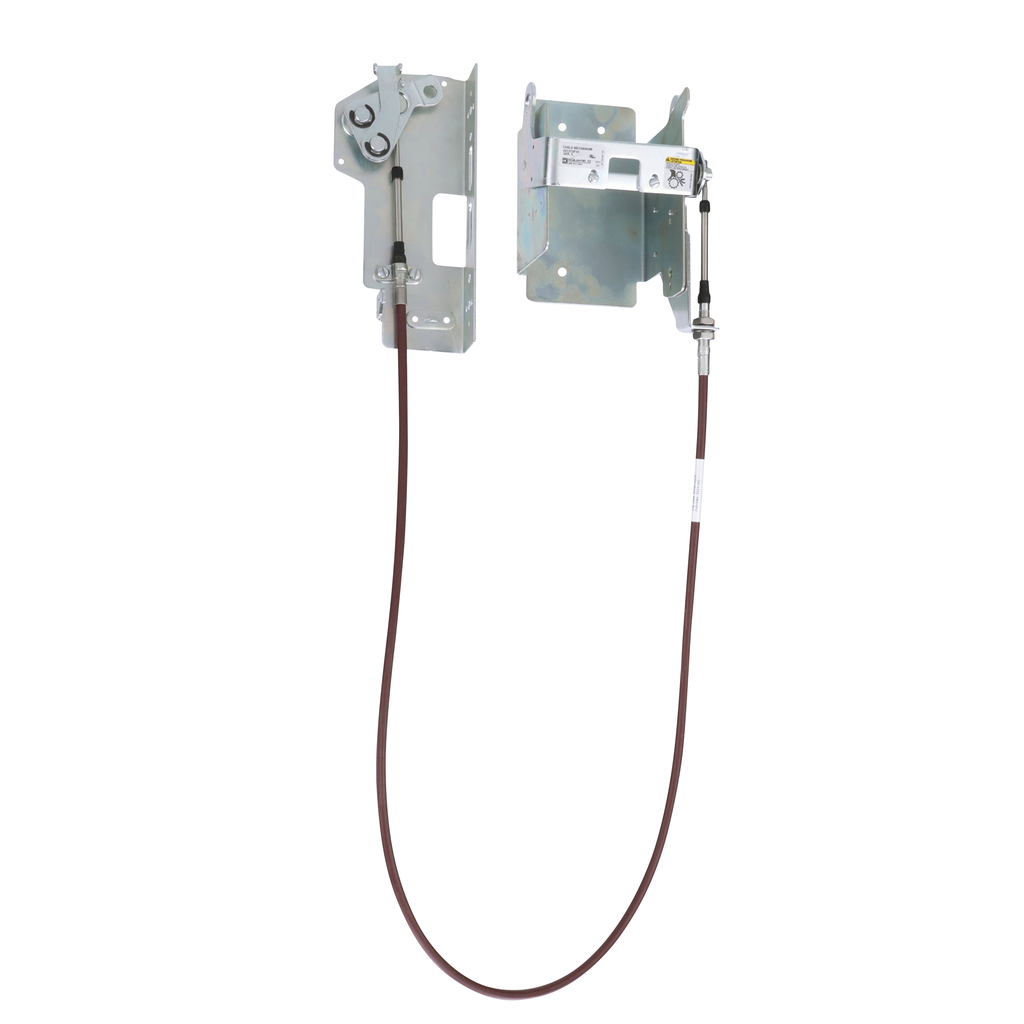

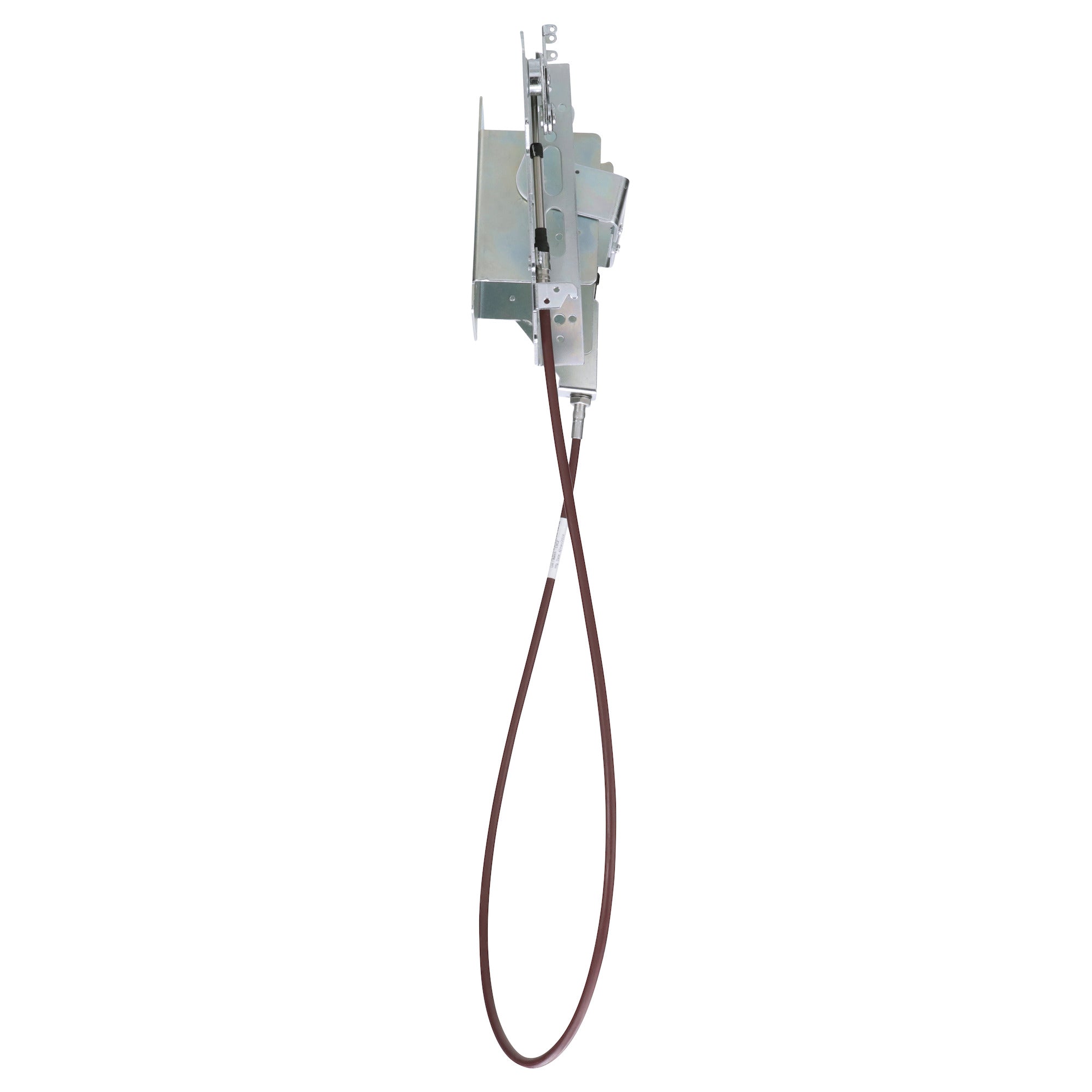

The Square D 9422CSF50 is a cable operating mechanism designed for circuit breakers, compatible with Compact NSF, PowerPact H, and PowerPact J. This mechanism supports both two and three-pole configurations with a frame size of two hundred fifty amps. The cable measures sixty inches in length and provides the flexibility needed for tall and deep enclosures. An operating handle, model 9422A, is sold separately. This mechanism is recognized by UL and certified by CSA, ensuring safety and reliability.

• Compatible with Compact NSF, PowerPact H, and PowerPact J breakers
• Supports 250 Amp frame size in 2 or 3-pole configurations
• UL Component Recognized and CSA certified for safety

Product Highlights

Designed for flexibility in installation within tall enclosures, the Square D 9422CSF50 is ideal for various circuit breaker applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 9422CSF50
• UPC: 785901104124
• GTIN: 00785901104124
• Amperage: 250 Amp
• Cable Length: 60 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
