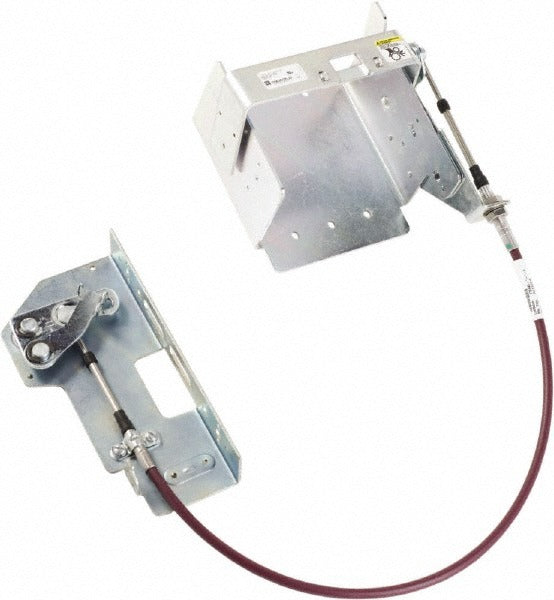

Square D 9422CSF304 Cable Operating Mechanism

Product Description

The SQUARE D 9422CSF304 is a cable operating mechanism designed for use with MG-NSF circuit breakers. It allows remote mechanical actuation of a circuit breaker without direct manual access to the breaker itself, making it well-suited for switchgear panels, motor control enclosures, and distribution equipment where the breaker is mounted in a hard-to-reach location. Licensed electricians and industrial maintenance technicians typically install this accessory as part of a controlled power distribution or isolation system. The unit weighs 5.98 pounds and measures 13.3 inches in length, 12.7 inches in width, and 7.1 inches in height.

This cable operating mechanism is intended for use in commercial and industrial electrical installations where remote operation of an MG-NSF series circuit breaker is required. It is commonly installed in scenarios where panel layout, enclosure depth, or safety zoning prevents direct front-of-breaker operation. The mechanism transmits mechanical force via cable to open or close the breaker from a remote handle position, supporting both operational convenience and isolation safety procedures.

Key Features

• Enables remote cable-actuated operation of MG-NSF circuit breakers
• Packaged as a single unit, ready for direct installation
• Dimensions of 13.3 x 12.7 x 7.1 inches suit standard enclosure mounting configurations
• Weighs 5.98 pounds for manageable handling during installation
• OEM accessory designed to integrate with the MG-NSF circuit breaker platform

Compatibility

Designed for use with the MG-NSF series circuit breaker as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. Disconnect and lock out all power to the circuit breaker and associated equipment before beginning installation. Verify that the cable routing does not create pinch points or interfere with enclosure doors, and confirm that mechanical travel of the cable mechanism is correctly adjusted before returning the system to service.
