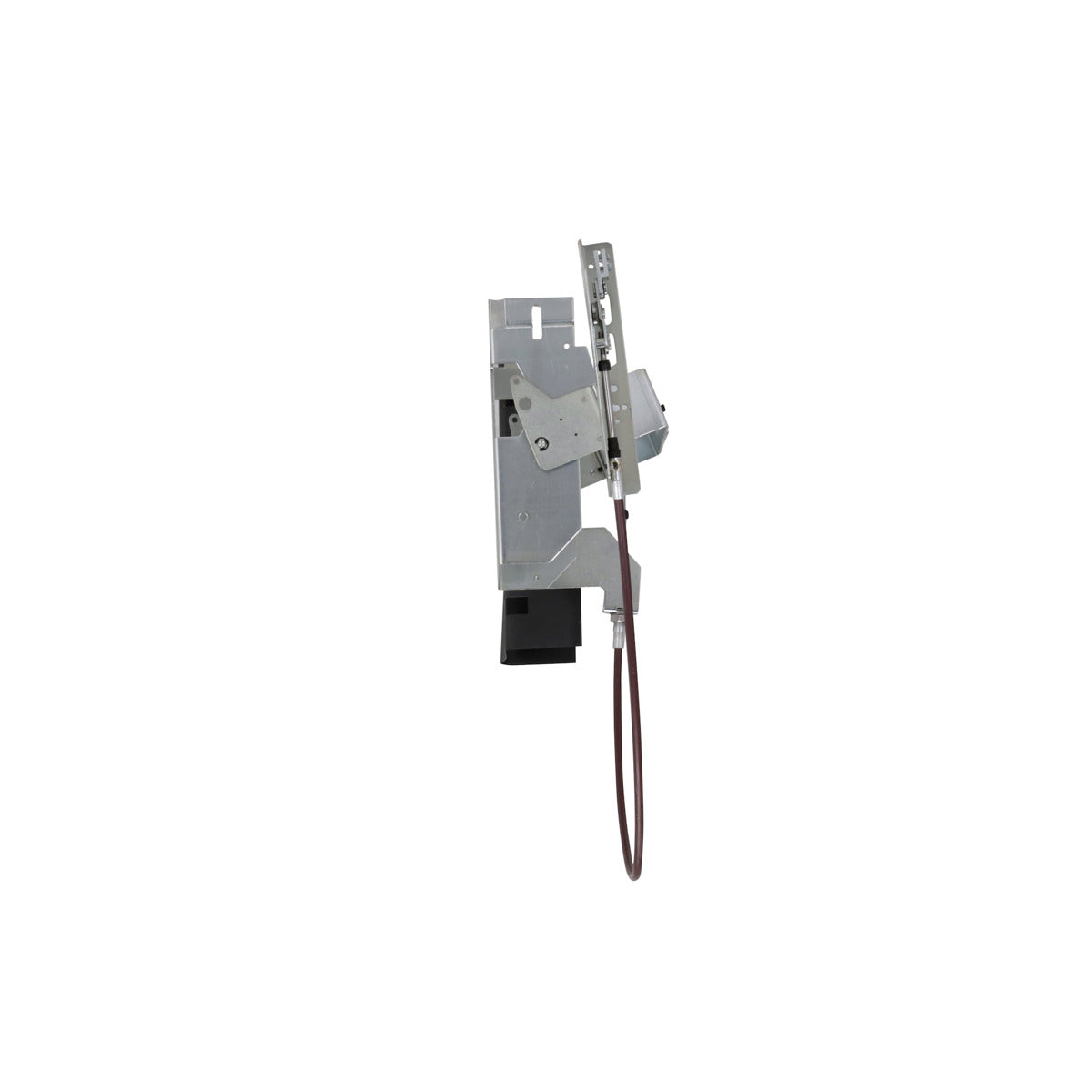

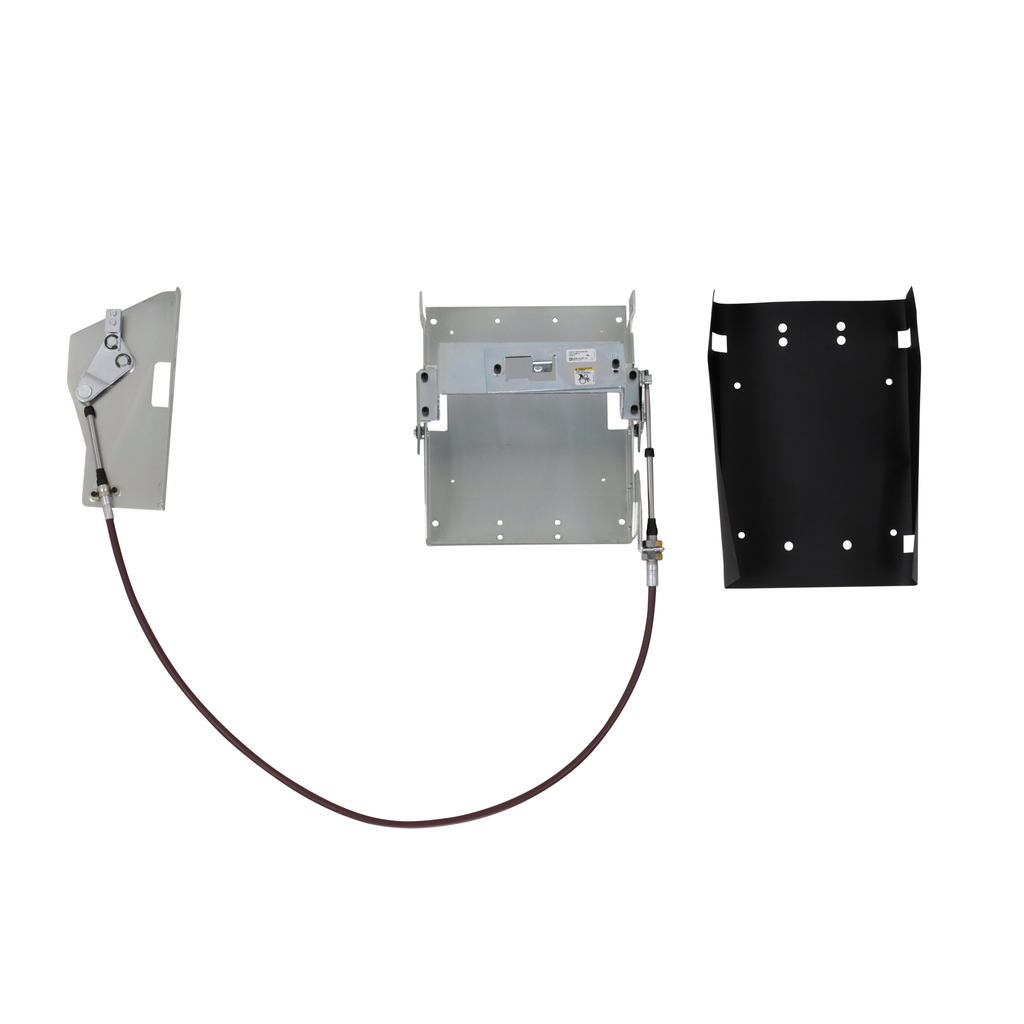

Square D 9422CMP50 NEMA Cable Operating Mechanism

Product Description

The Square D 9422CMP50 Nema Cable Operating Mechanism is designed for use with PowerPacT M and P circuit breakers. It features a cable length of fifty inches and allows for field installation and modification of circuit breakers during any stage of the design and build process. This product is compliant with UL standards and is suitable for 1200A maximum amperage in three-pole configurations.

• Compatible with PowerPacT M and P circuit breakers.
• Fifty inch cable mechanism length.
• Meets UL safety standards.

Product Highlights

This cable operating mechanism enhances the functionality of circuit breakers by allowing adjustments in the field, ensuring flexibility and efficiency in installation.

Product Information

Standard Information

• Catalog Number: 9422CMP50
• Brand: Square D

Technical Specifications

• Type: Single Cable Operating Mechanism
• Max Amperage: 1200A
• Cable Length: 50 inches
• Number of Poles: 3
• Country of Origin: Mexico
• Warranty: 18 months
• GTIN: 00785901833253
