Square D 9422BTEF11 Operating Mechanism, Flange Mounted, Fixed Depth Assembly, 100A, 600 V, Fuseholder, Switch Mechanism, 6 Inch Handle

Product Description

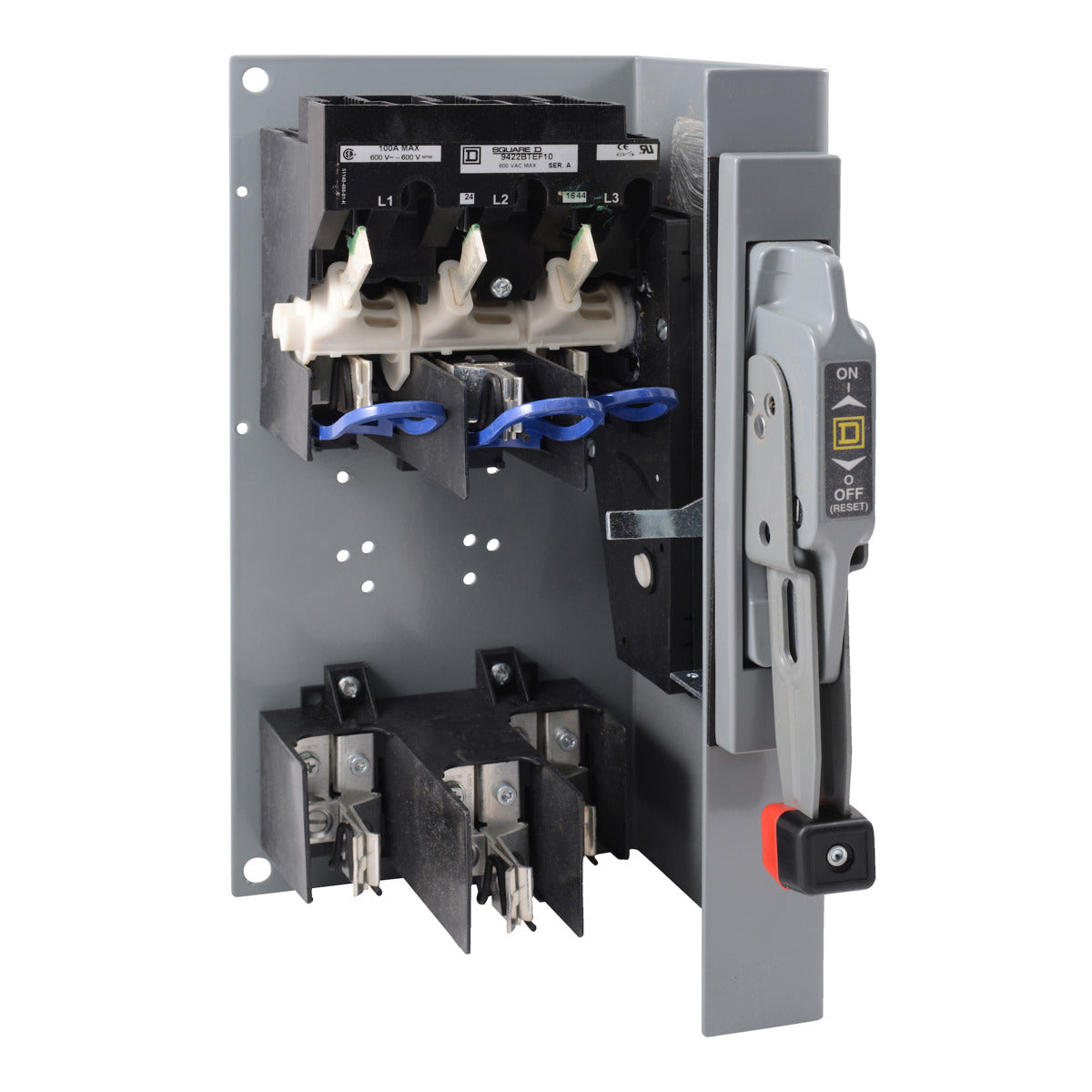

The SQUARE D 9422BTEF11 is a bracket mount disconnect switch designed for combiner boxes and control panel applications. It ships with the switch and external handle assembled to a bracket for quick installation. This disconnect switch accepts Class J fuses only and is rated at 100 Amps up to 600 V. It is fully compatible with the 9423 closing mechanisms.

• Bracket mount disconnect switches are designed for combiner boxes and control panel applications
• Protective trim plate prevents mounting screws from being accessible from the front
• Lugs are rated for #10 AWG to #0 AWG copper wire and #6 AWG to #0 AWG aluminum wire

Product Highlights

The SQUARE D 9422BTEF11 is UL component recognized, CSA certified and has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9422BTEF11
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 9422BTEF11
• Manufacturer: Schneider Electric
• Brand: SQUARE D
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901717942
• GTIN: 00785901717942
• Fuse Type: J
• Actuator: 6 HANDLE INCLUDED (9422A1)
• Amperage: 100 Amp
• Applications: 25 HP 200 V AC-30 HP 230 V AC-60 HP 460 V AC-75 HP 575 V AC-20 HP 250 V DC
• Current: 100 Amp
• Handle Type: 6 in handle included
• Line Rated Current: 100 A
• Mounting Type: Bracket Fixed Depth
• Trip Type: CLASS J 100A@250/600V
• Type: Fusible disconnect switch;Disconnect Switch
• 12-Digit UPC: 785901717942
• Certifications: CSA,UL Recognized
• Manufacturer Part Number: 9422BTEF11
• Numeric ID: 4079255
• Series: Class 9422 Series
• UPC Code: 785901717942
• Standards: California Proposition 65
