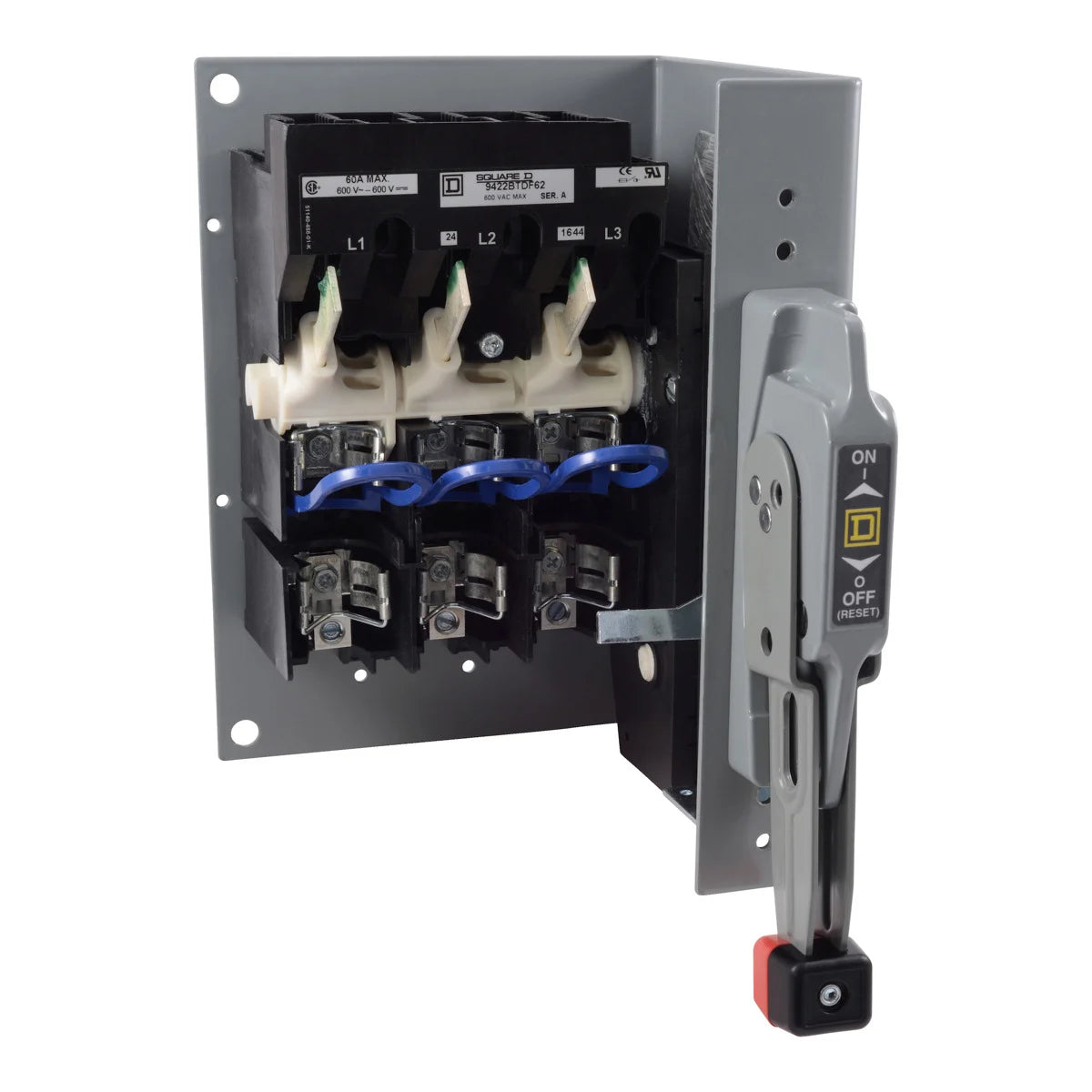

Square D 9422BTDN60 operating mechanism, flange mounted, fixed depth assembly, 60A, 600 V, fuseholder, switch mechanism, 6 inch handle

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: 9422BTDN60
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D 9422BTDN60 is an operating mechanism designed for flange mounting in fixed depth assemblies. This product allows for the quick installation of a disconnect switch in combiner boxes and control panels. It features a bracket with the switch and handle pre-assembled, ensuring ease of installation. A protective trim plate is included to cover mounting screws, enhancing safety and accessibility.

  • Rated at 60 Amperes and accommodates up to 50 HP at 600 VAC.
  • Compatible with 9423 closing mechanisms and available without fuse clips.
  • Suitable for wire sizes from 14 AWG to 2 AWG in both copper and aluminum.

Product Highlights

This disconnect switch operates efficiently in various voltage ranges and power ratings, making it a reliable choice for industrial applications.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer: Schneider Electric
Technical Specifications
Catalog Number
9422BTDN60
Mounting
Bracket Fixed Depth
Country of Origin
Mexico
Warranty Description
Contractual Warranty: 18 months
UPC
785901872313
Item Type
Non-fusible disconnect switch; Disconnect Switch
GTIN
00785901872313
