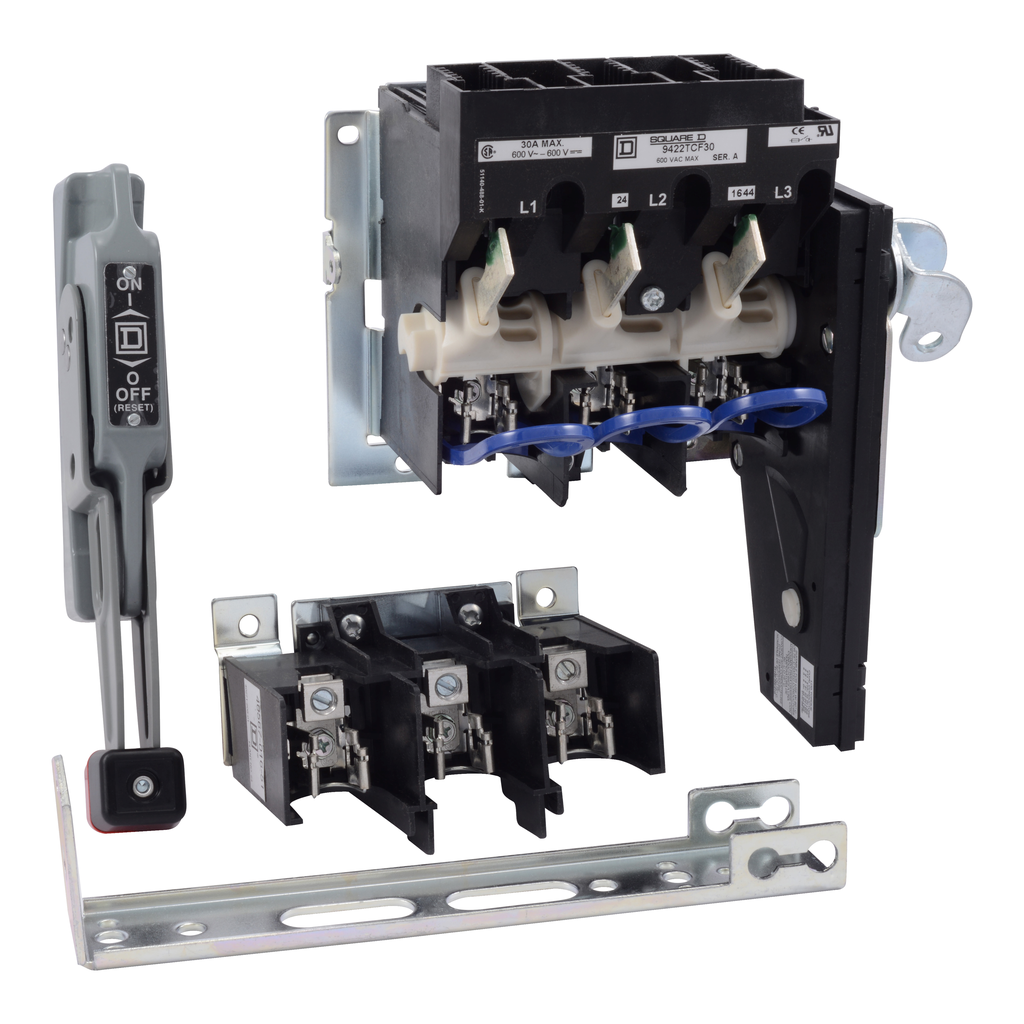

Square D 9422ATEF101 NEMA 600 VAC 100 Amp Disconnect Switch

Product Description

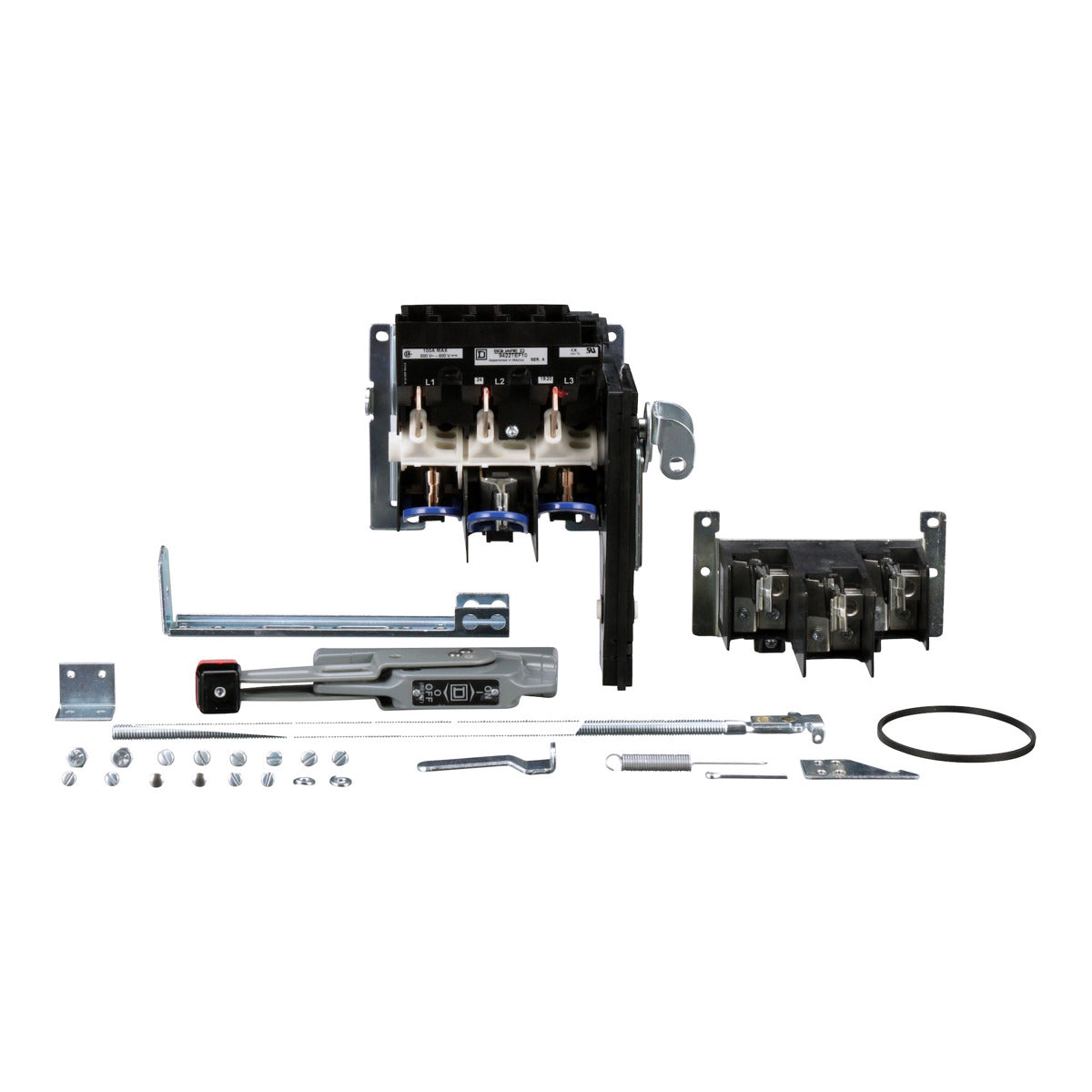

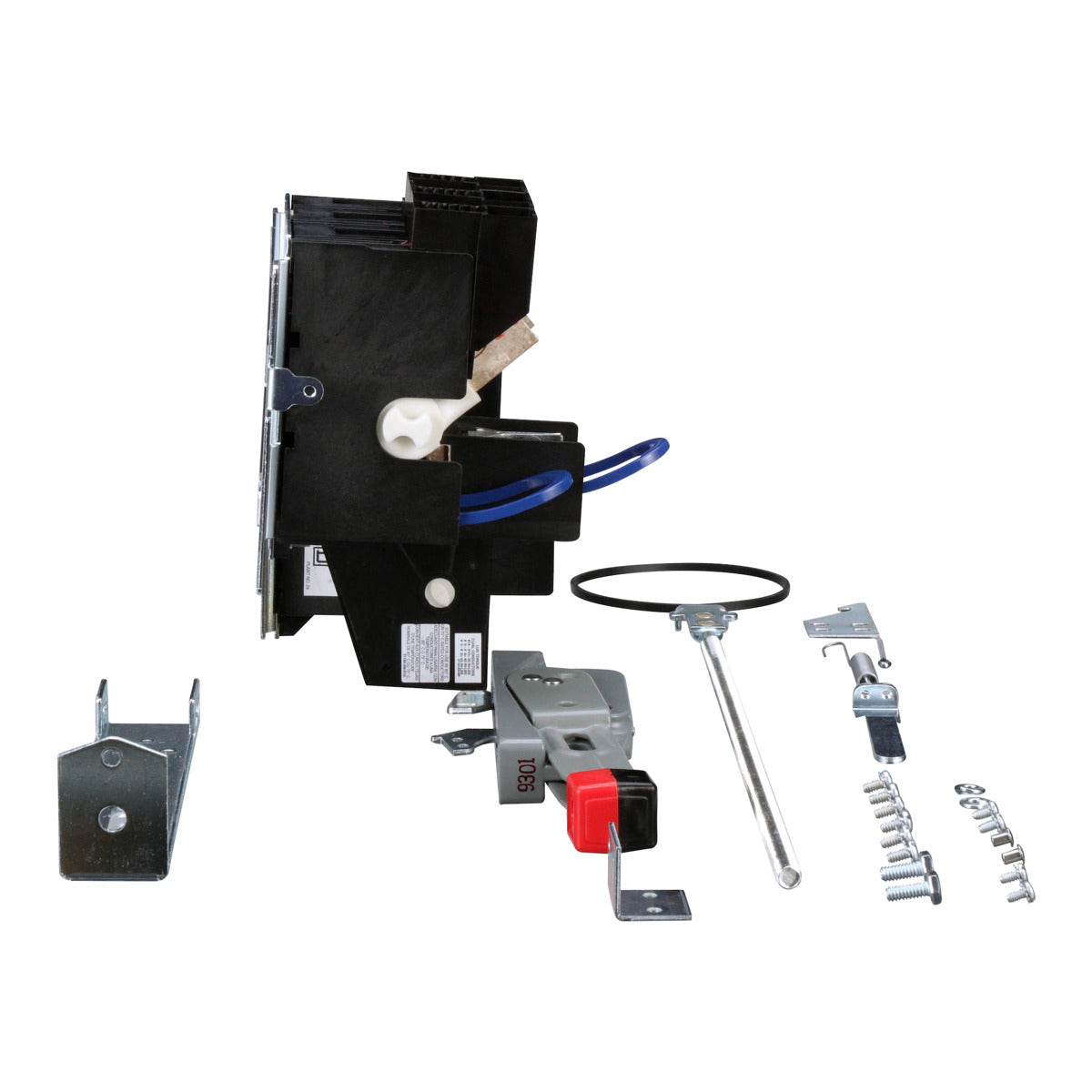

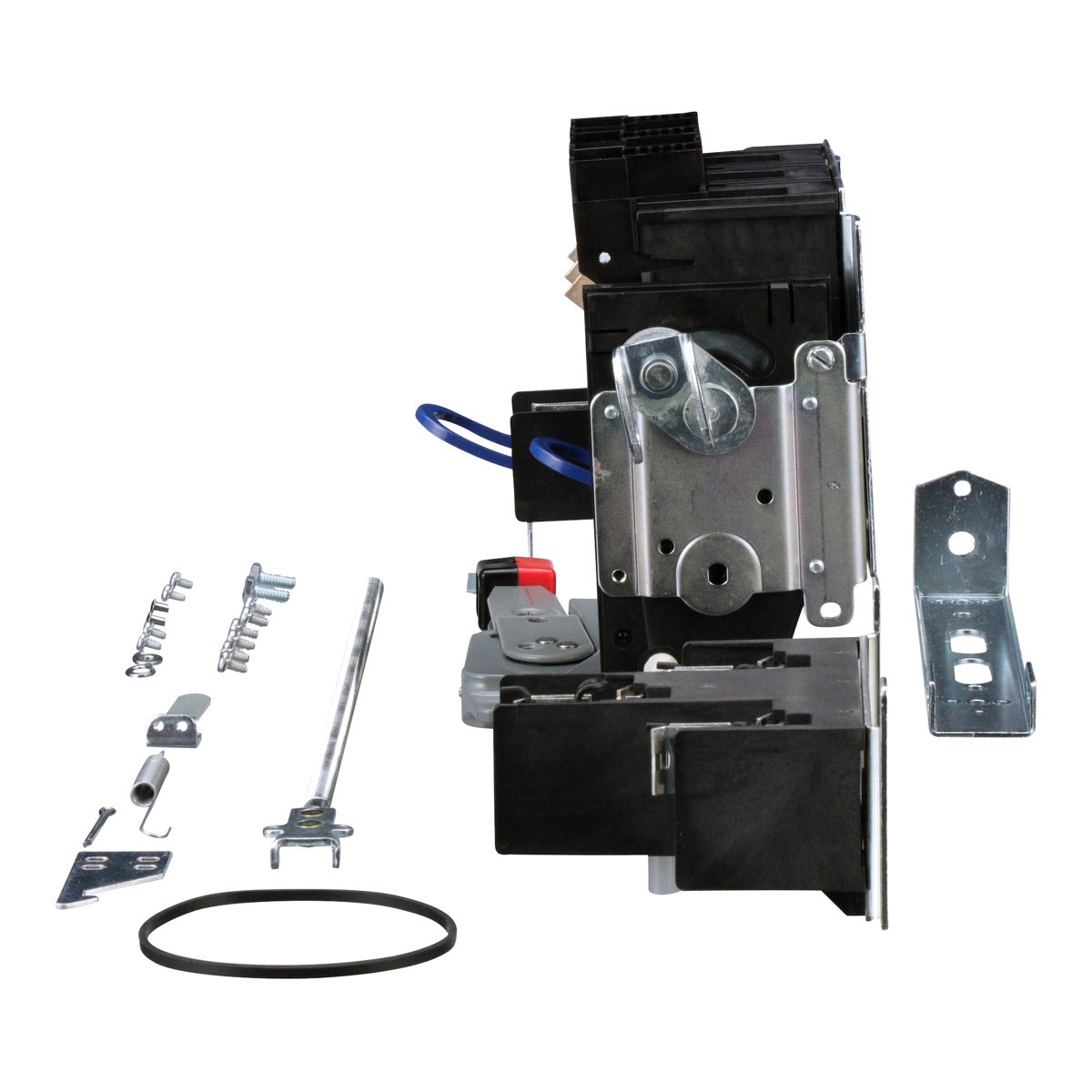

The Square D 9422ATEF101 is a disconnect switch rated for 100 Amps and up to 600 Volts. It is designed for control panel installations and is compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch accepts Class H, J, K, or R fuses only.

• Voltage rating: Up to 600 V
• Flange mounting with variable depth: Six point six three to eighteen inches
• Horsepower ratings: 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC, and 75 HP at 600 VAC

Product Highlights

The 9422ATEF101 switch is suitable for both AC and DC operations, supporting various fuse types and a range of wire sizes. It is UL Component Recognized and CSA certified.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9422ATEF101
• Current Rating: 100 Amp
• Actuator: Handle included (9422A1)
• Enclosure: NEMA 1/3/3R/4/12
• Fuse Type: H, J, K, R
• Number of Poles: 3 Pole
• Country of Origin: Mexico
• Warranty: 18 months
