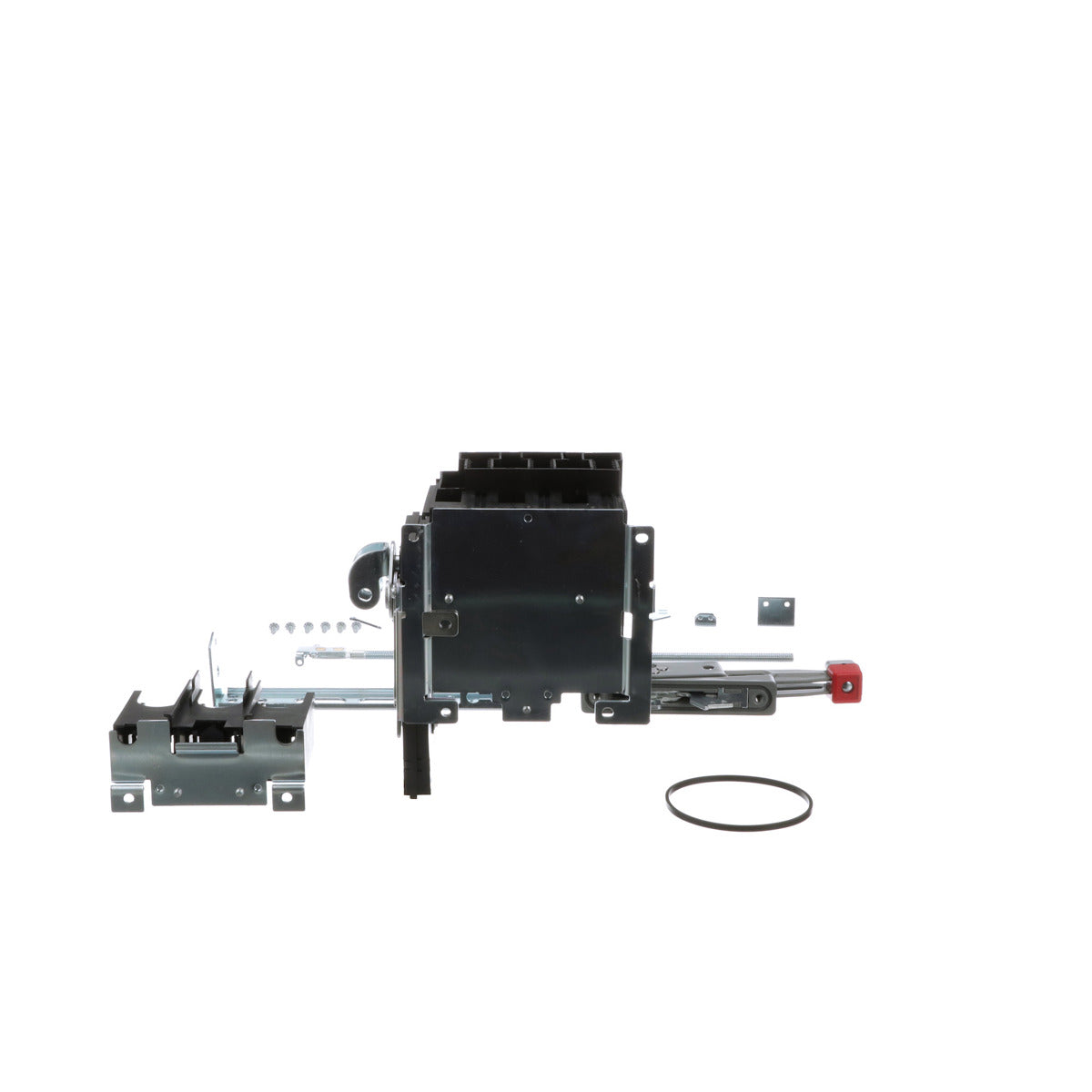

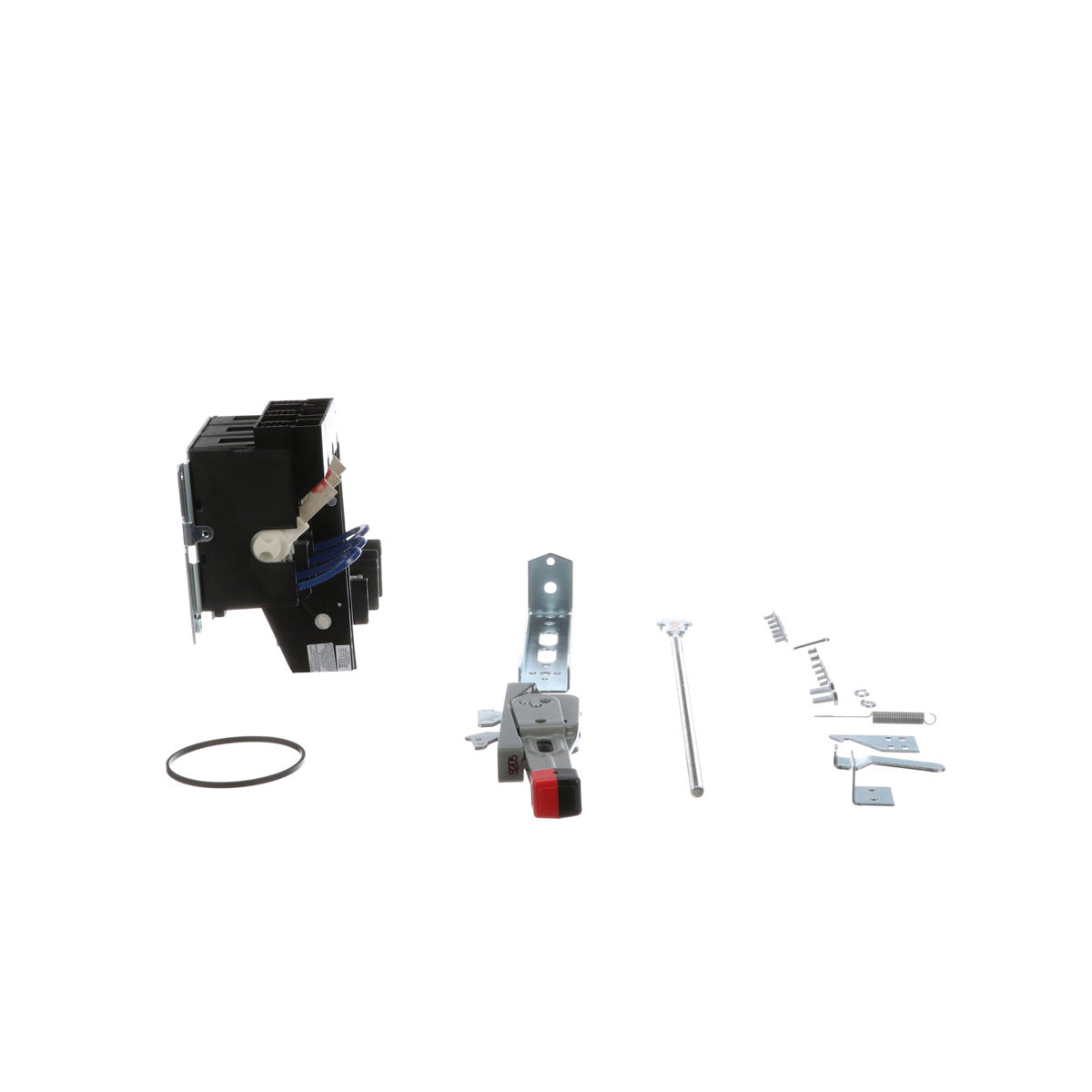

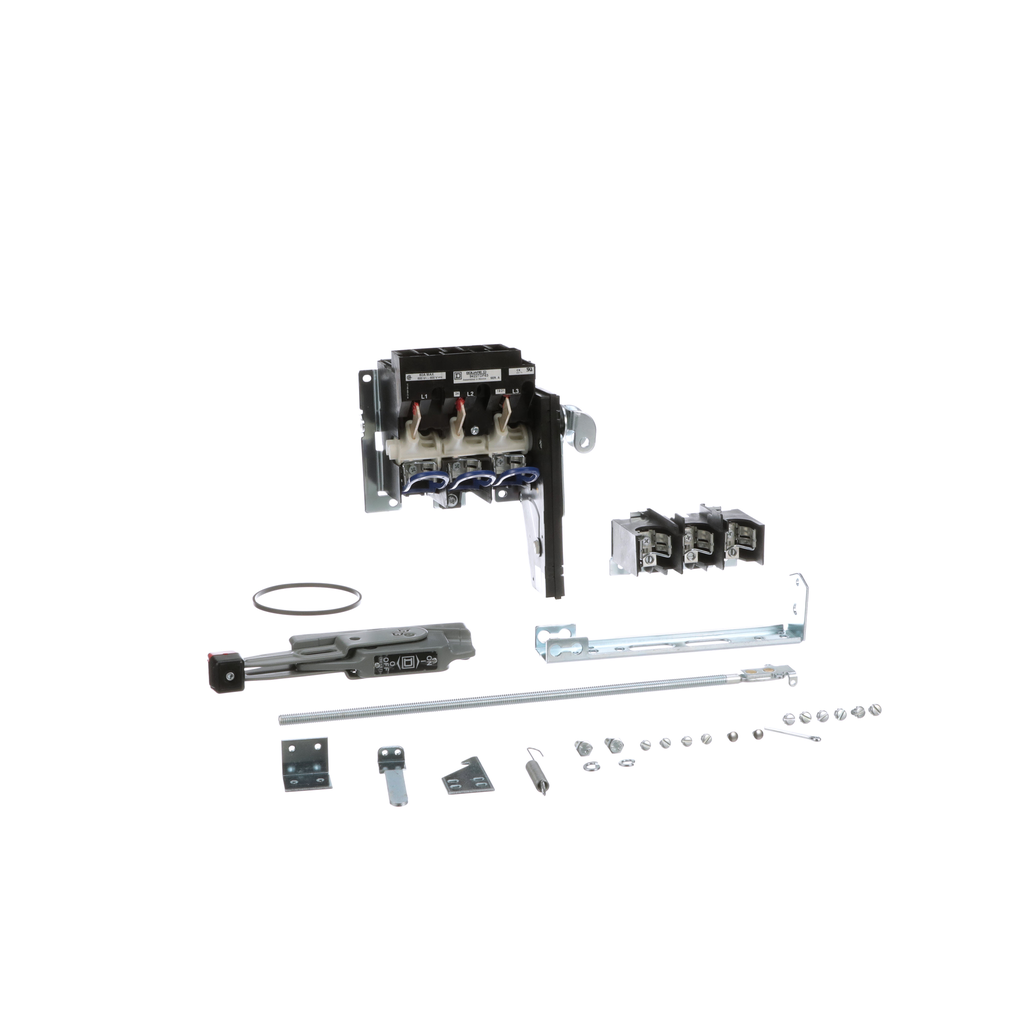

Square D 9422ATDF631 Fusible Disconnect Switch 60 Amp 600 VAC/VDC NEMA 1/3/3R/4/12

Product Description

The Square D 9422ATDF631 is a fusible disconnect switch with a current rating of 60 Amps at a maximum voltage of 600 VAC and VDC. This switch is ideal for control panel installations and compatible with Square D handle operators and door closing mechanisms. The device accepts Class H, J, K, or R fuses and features a flange mounting design with a variable depth range of six point six three to eighteen inches.

• Compatible with 9422A handle operators and 9423 closing mechanisms.
• Rated for up to 50 HP at 600 VAC and 30 HP at 600 VDC.
• UL recognized and CSA certified for safety.

Product Highlights

The 9422ATDF631 disconnect switch provides reliable performance for safety and control in electrical installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9422ATDF631
• Current Rating: 60 Amp
• Enclosure Type: NEMA 1/3/3R/4/12
• Fuse Type: Class H, J, K, R
• Mounting Type: Flange Rod Variable Depth
• Number of Poles: 3 Pole
• Country of Origin: Mexico
