Square D 9422ATCN302 30 Amp 600 VAC Non-Fusible Switch

Product Description

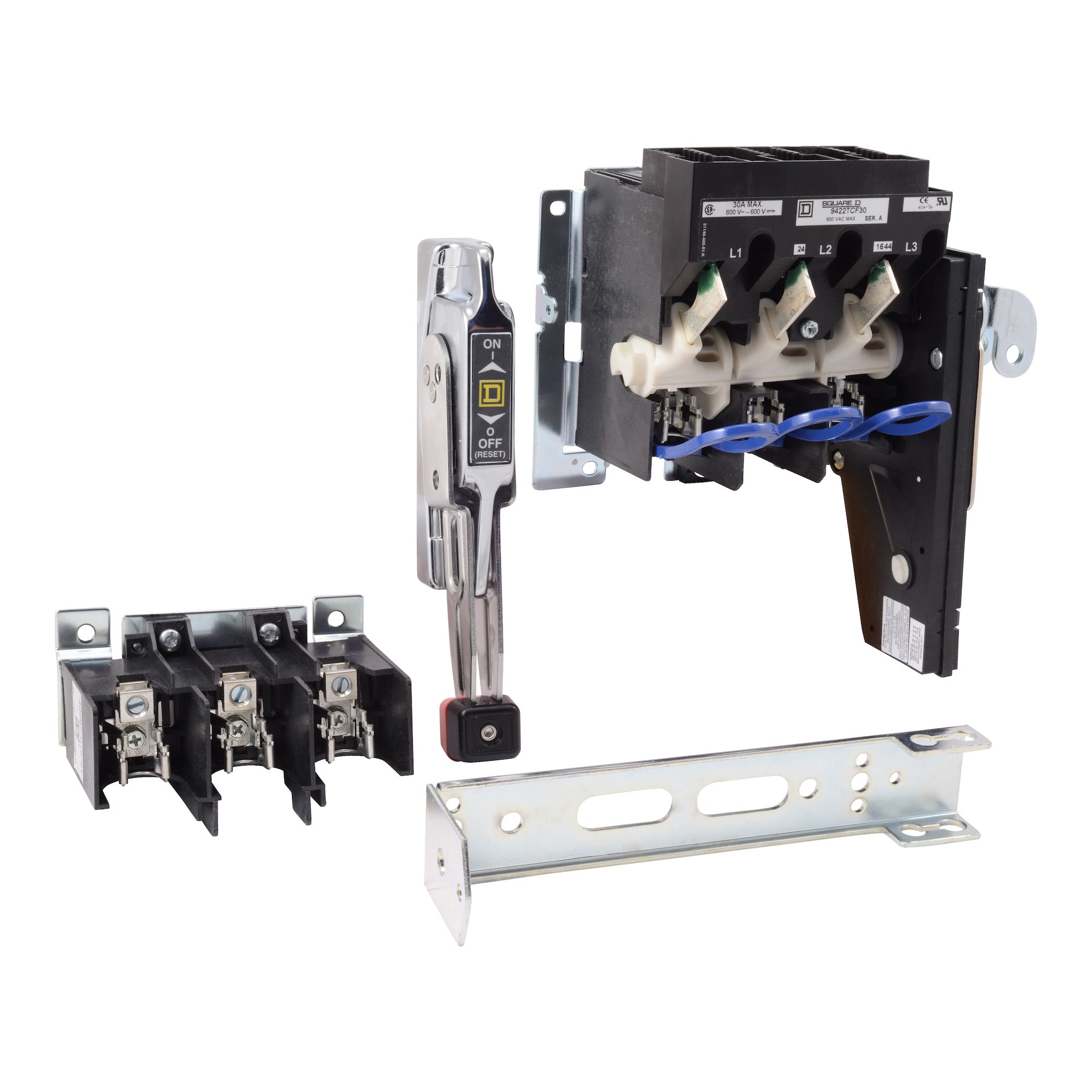

The Square D 9422ATCN302 is a non-fusible disconnect switch rated for thirty amps at six hundred volts AC. This switch is designed for control panel installations and is compatible with various handle operators. It features a mounting depth variable from six point six three inches to eighteen inches. The switch has horsepower ratings including seven point five HP at two hundred eight volts, fifteen HP at four hundred eighty volts, and twenty HP at six hundred volts.

• Compatible with 9422A handle operators.
• UL Component Recognized and CSA certified.
• Mounting type: flange rod variable depth.

Product Highlights

This switch offers reliable performance and robust functionality for various electrical applications. Suitable for both commercial and industrial use, the 9422ATCN302 ensures safe disconnection of circuits and equipment.

Product Information

Standard Information

• Catalog Number: 9422ATCN302
• Brand: Square D

Technical Specifications

• Current Rating: 30 Amp
• Actuator: 6 in handle included (9422A2)
• Trip Type: Non-fusible
• Applications: Rod operated - variable depth/flange mount
• Mounting Type: Flange rod variable depth
• Certifications: CSA, UL Recognized
• Warranty Length: 18 months
• Country of Origin: Mexico
