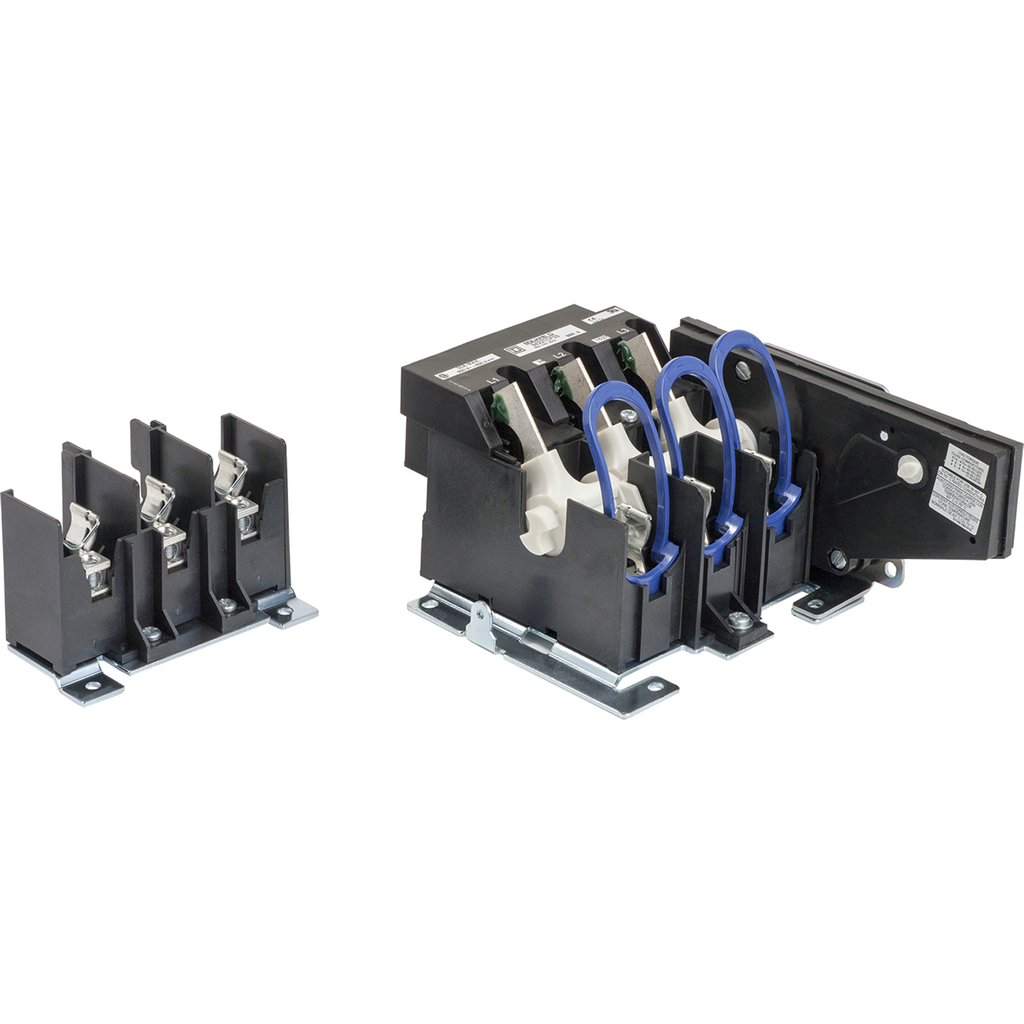

Square D 9422ATCF332 30 Amp 600 VAC A2 Mechanical Handle Fuse Switch

Product Description

The Square D 9422ATCF332 is a 30 Amp, 600 VAC disconnect switch suitable for control panel installations. This fuse switch works with 9422A handle operators and 9423 door closing mechanisms. It accepts Class H, J, K, or R fuses and comes with a 9422A2 handle mechanism included.

• Mounting type: Flange with variable depth from 6.63 inches to 18 inches.
• Horsepower ratings: 7.5 HP at 208 and 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC, 5 HP at 250 VDC.
• UL Component Recognized and CSA certified for reliable safety and performance.

Product Highlights

This disconnect switch is ideal for various applications, including industrial and commercial control panels.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9422ATCF332
• Type: Fusible disconnect switch
• Current Rating: 30 Amp
• Handle Type: 6 inch handle included
• Fuse Type: Class H, J, K, R
• Trip Type: 60A at 250V - 30A at 600V
• Applications: Flange mount
• Certifications: UL Recognized, CSA certified
