Square D 9422ATCF331 Fusible Disconnect Switch 30 Amp 600 VAC/VDC NEMA 1/3/3R/4/12

Product Description

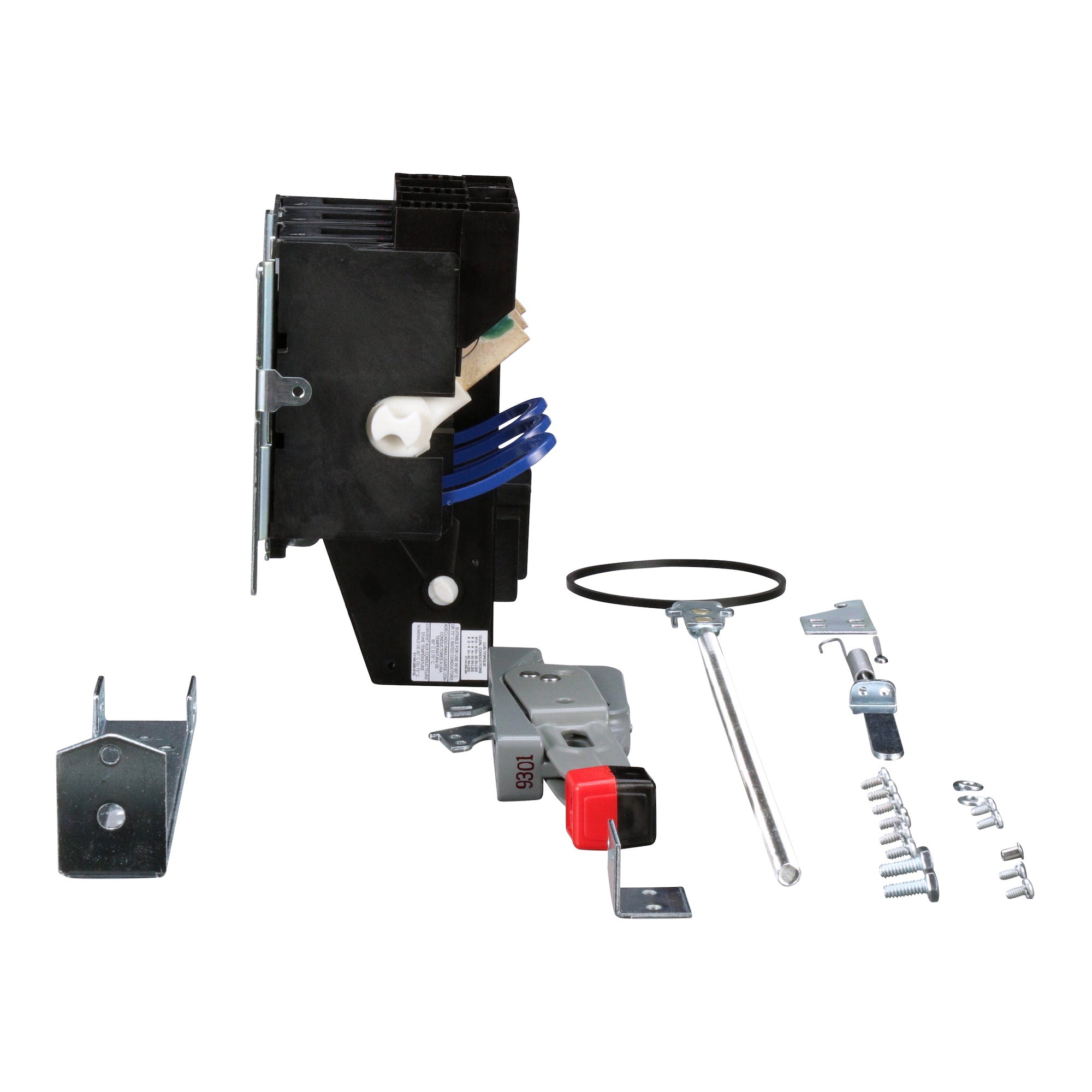

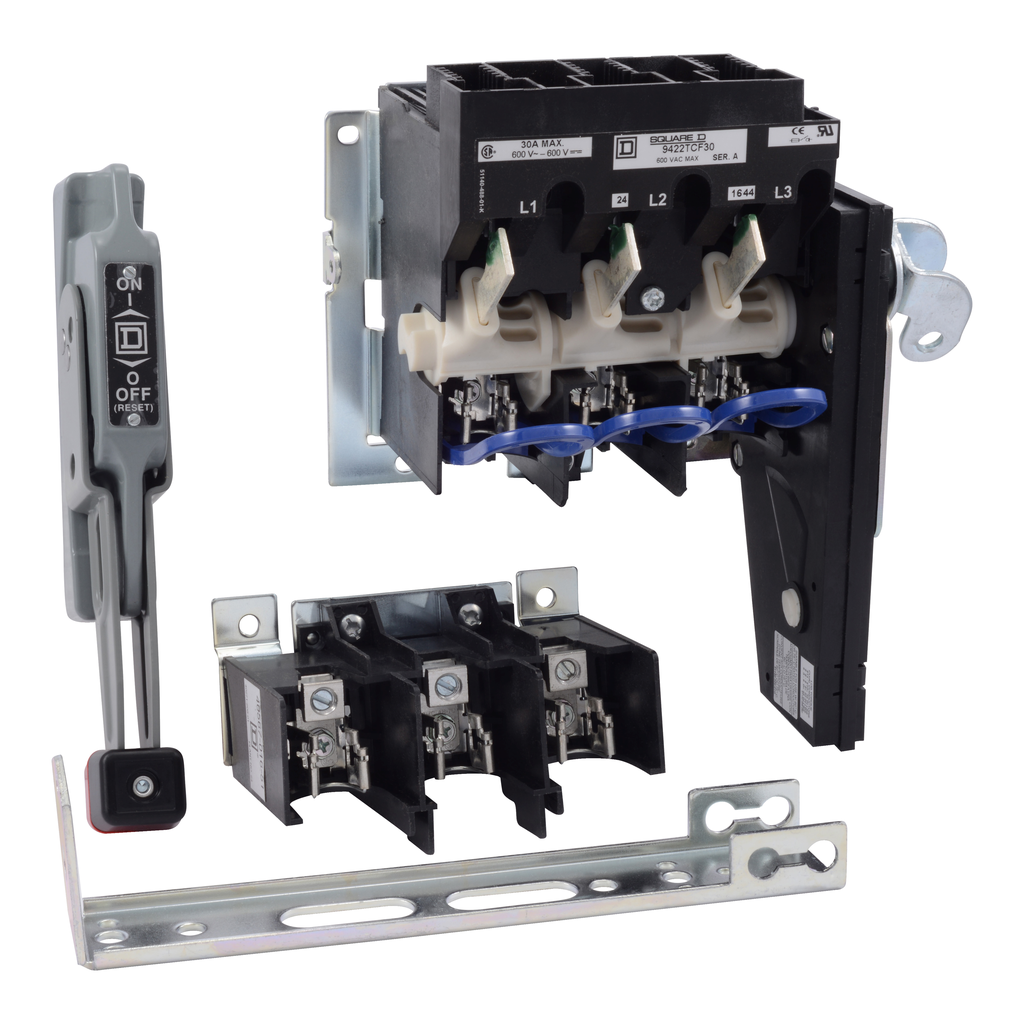

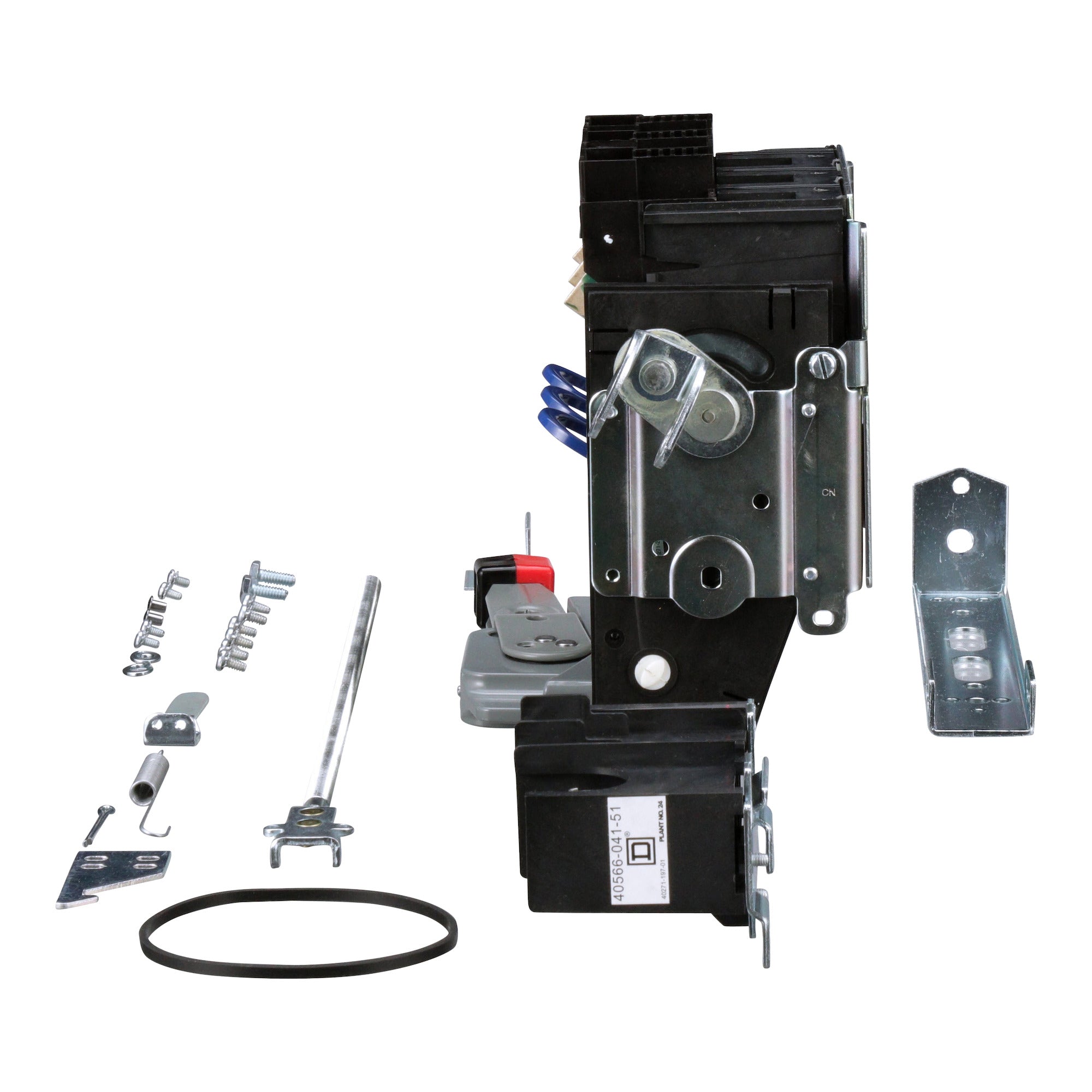

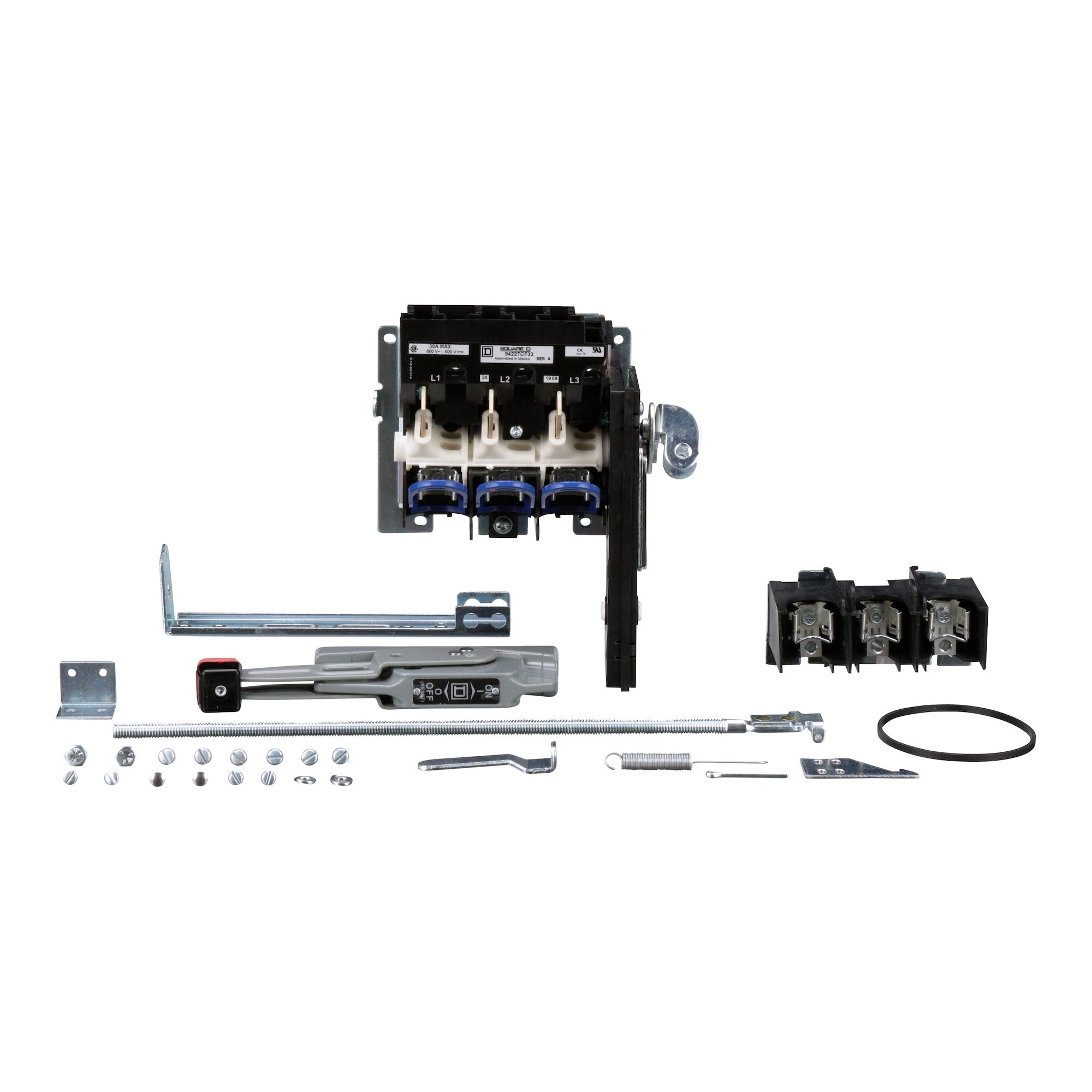

The Square D 9422ATCF331 is a thirty amp fusible disconnect switch suitable for various electrical applications. This switch is designed for control panel installations and is compatible with 9422A handle operators and 9423 door closing mechanisms. It only accepts Class H, J, K, or R fuses with ratings of sixty amps at up to two hundred fifty volts and thirty amps at six hundred volts.

• Flange mounting design for easy installation
• Variable depth mounting range of six point six three to eighteen inches
• UL Component Recognized and CSA certified

Product Highlights

This disconnect switch features horsepower ratings, accommodating up to seven point five horsepower at two hundred eight volts AC and twenty horsepower at six hundred volts AC. It allows for five horsepower at two hundred fifty volts DC. The switch includes a 9422A1 operating handle and is suitable for use with copper or aluminum wire ranging from fourteen to two AWG.

Product Information

Standard Information

• Catalog Number: 9422ATCF331
• Manufacturer: Schneider Electric

Technical Specifications

• Current: 30 Amp
• Enclosure Type: NEMA 1/3/3R/4/12
• Fuse Types Accepted: H, J, K, R
• Number of Poles: 3 Pole
• Warranty Length: 18 months
• Country of Origin: Mexico
• UPC: 78590187216
• GTIN: 00785901872160
