Square D 9422A2 NEMA Operating Mechanism Handle 6 Inch Replacement MPN

Product Description

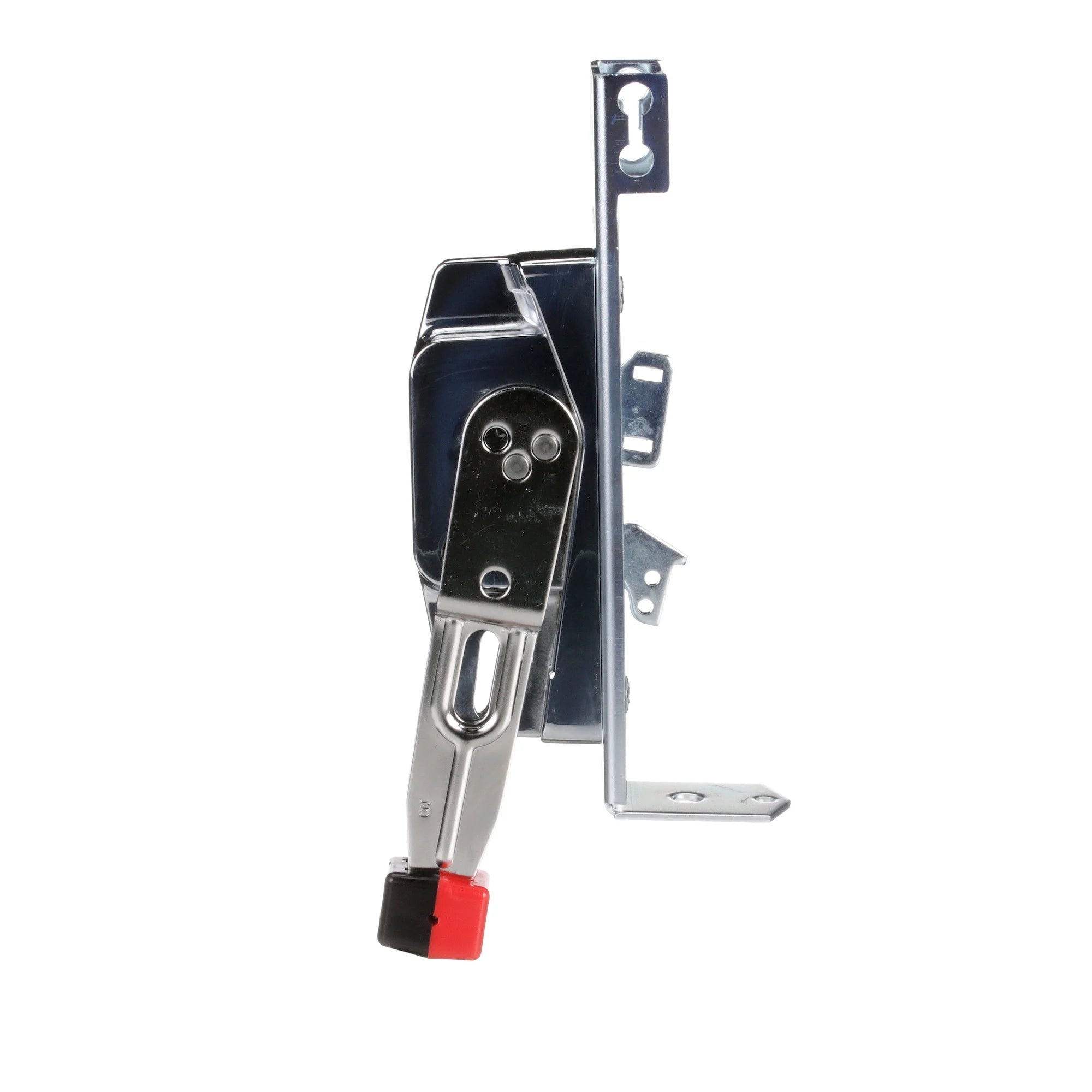

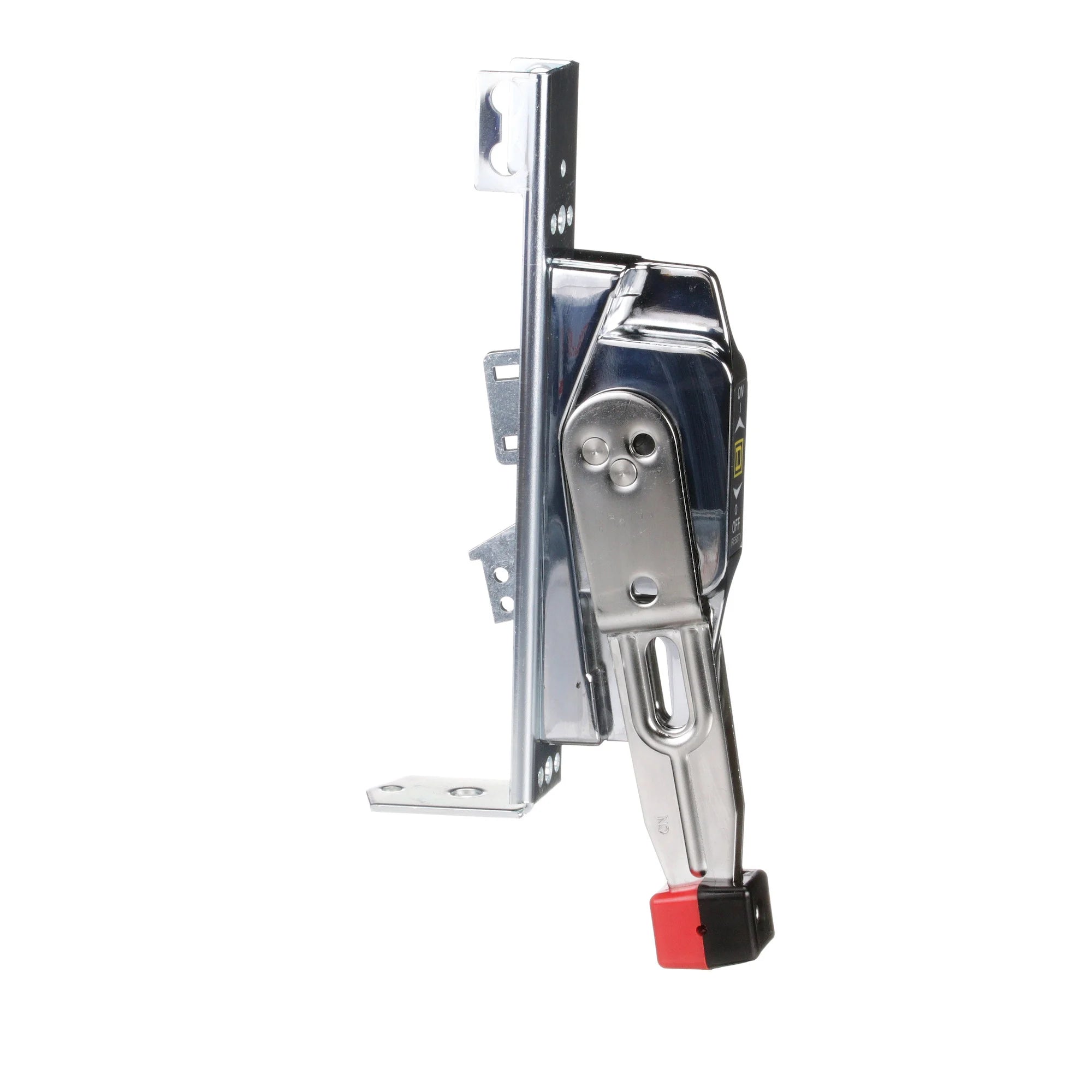

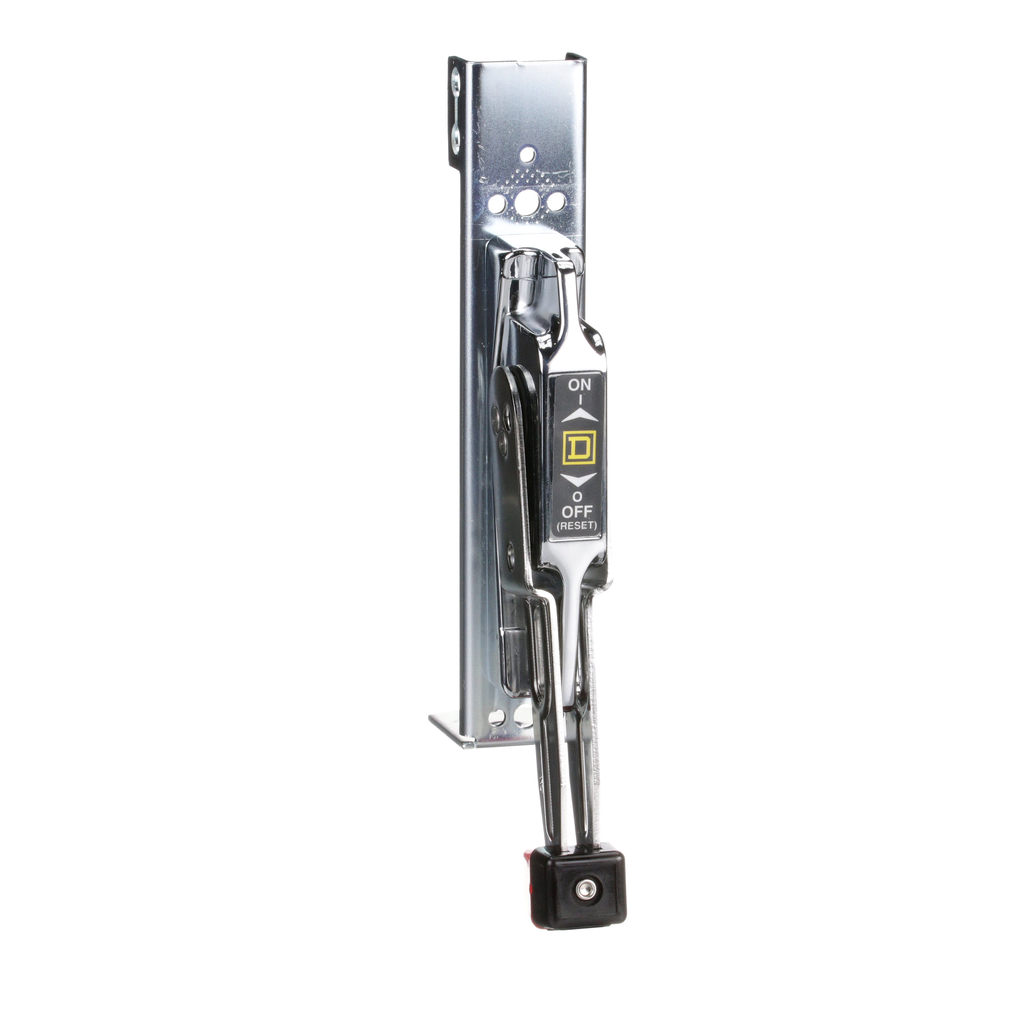

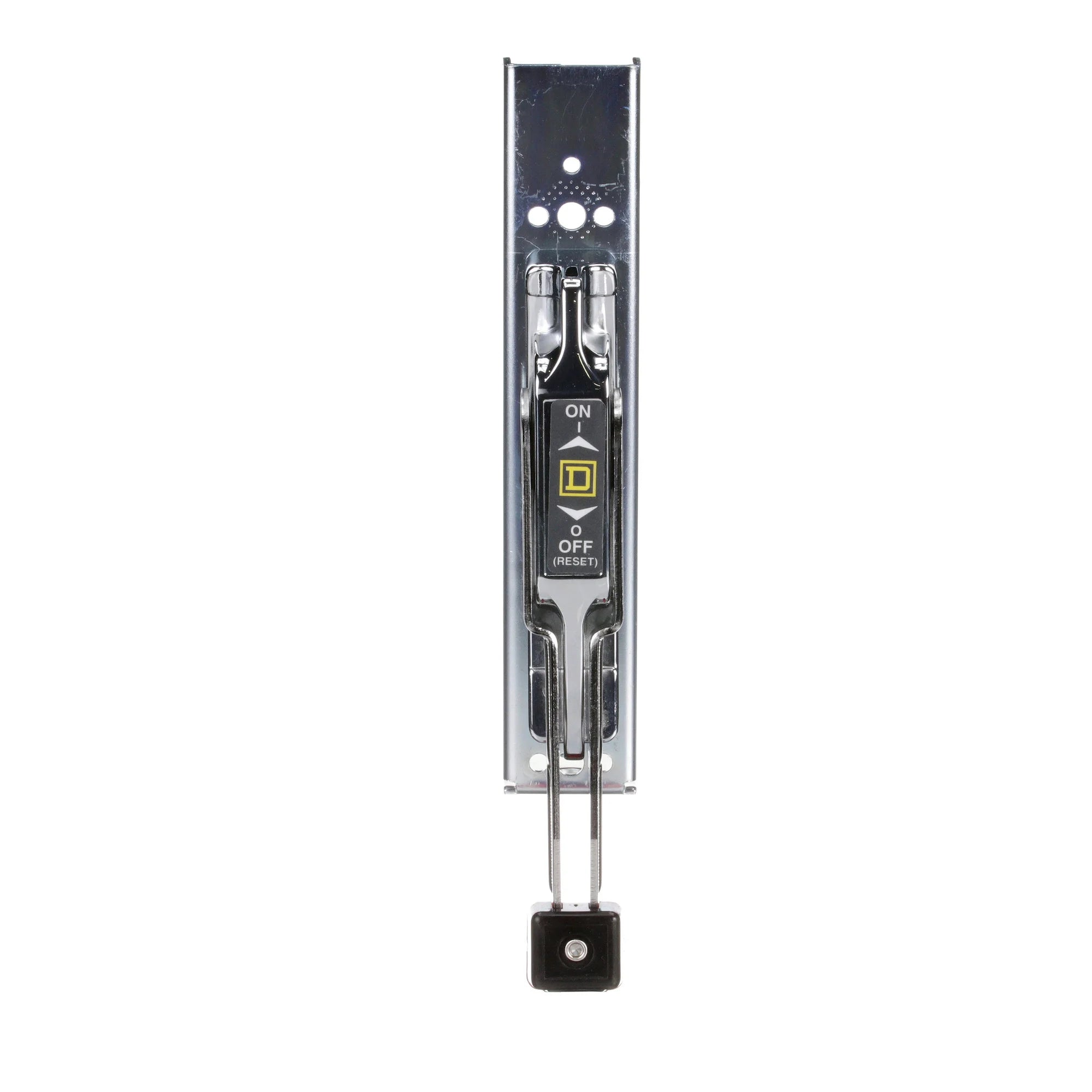

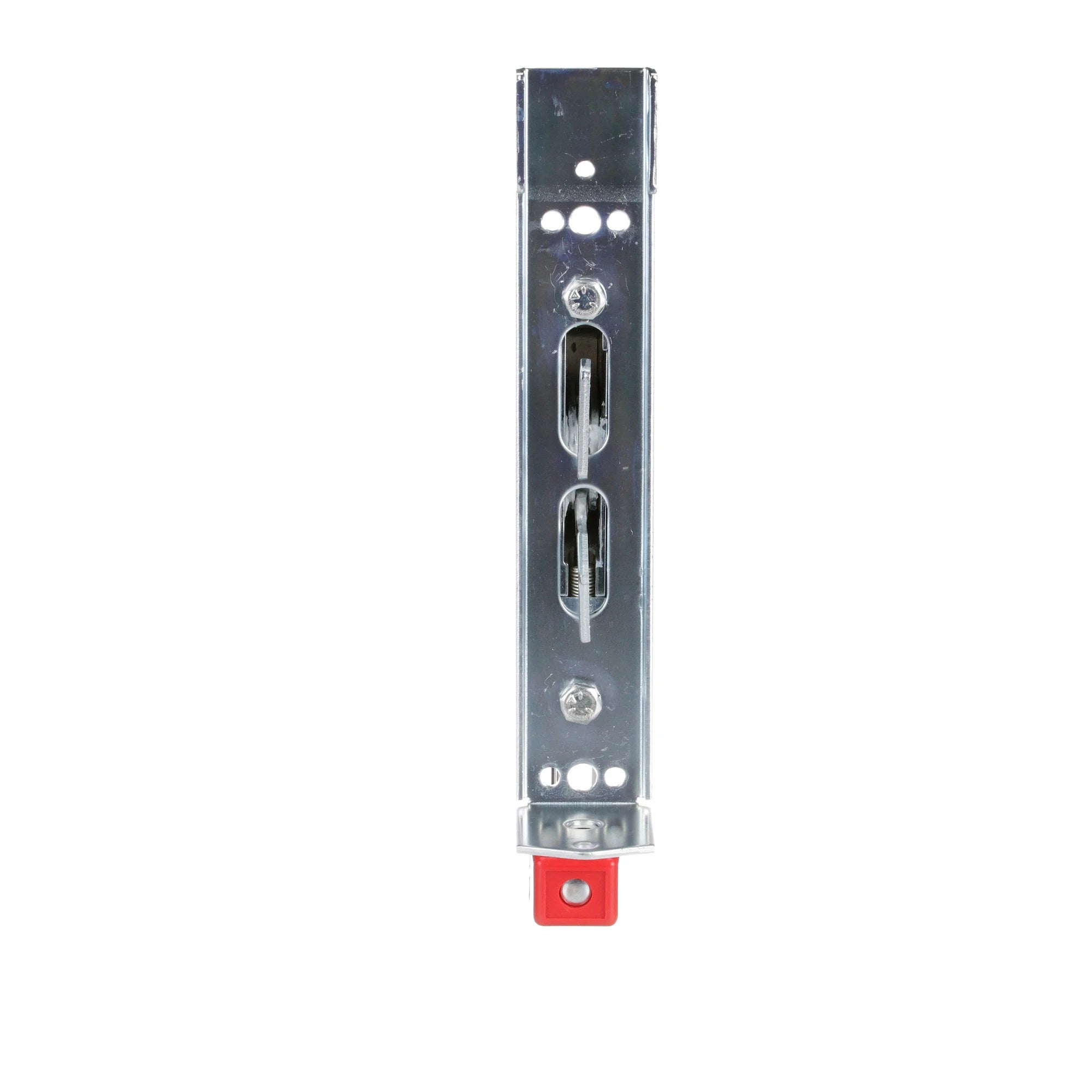

The Square D 9422A2 is a NEMA operating mechanism handle designed for use with PowerPacT M, P, and R-Frame circuit breakers. This handle allows for modification of circuit breakers during installation. It features a six inch handle depth suited for NEMA 4/4X environments and works with disconnect switches rated from thirty to two hundred amps.

• Field installable for easy modifications.
• Compatible with various circuit breaker mechanisms.
• UL standards compliant for safety.

Product Highlights

This product enhances circuit breaker functionality and adaptability in demanding environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9422A2
• Type: Handle Mechanism
• Size: 6 inch
• Enclosure Type: NEMA 4/4X
• Applications: Disconnect switches (30 to 200 A)
• Warranty Length: 18 months
• Country of Origin: Mexico
• Compliance: UL standards
