Square D 9421LR4 NEMA 600 VAC 400 Amp Operating Mechanism

Product Description

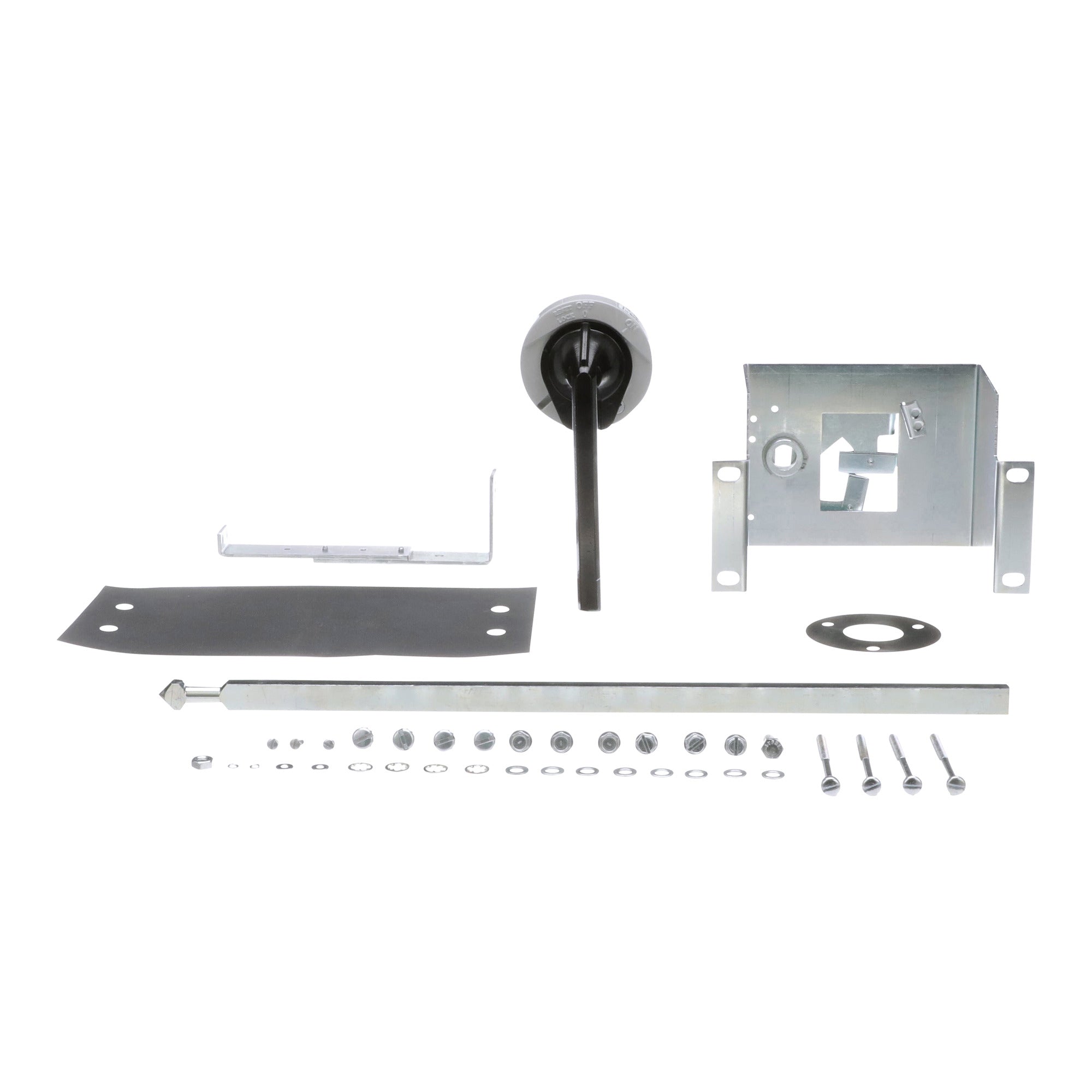

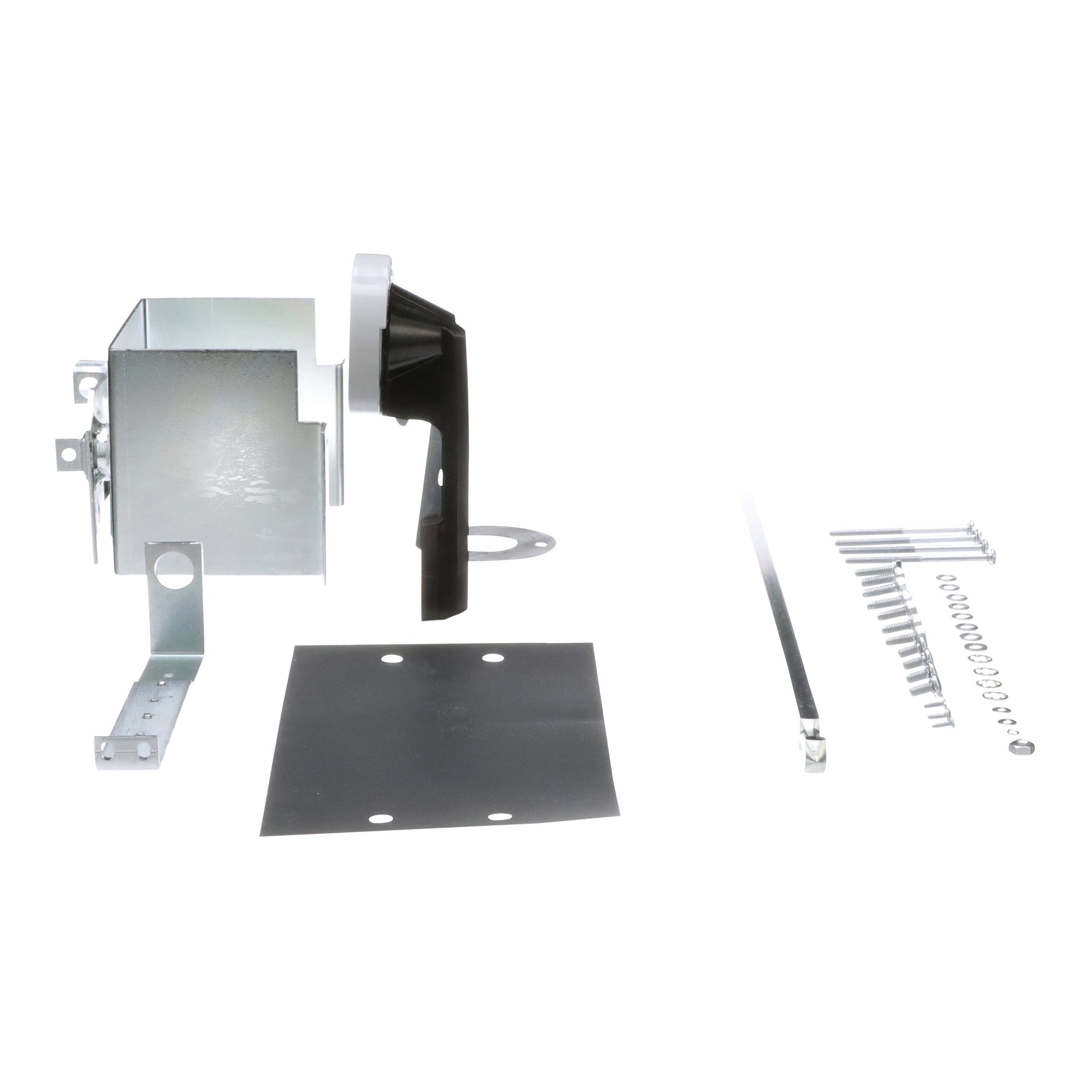

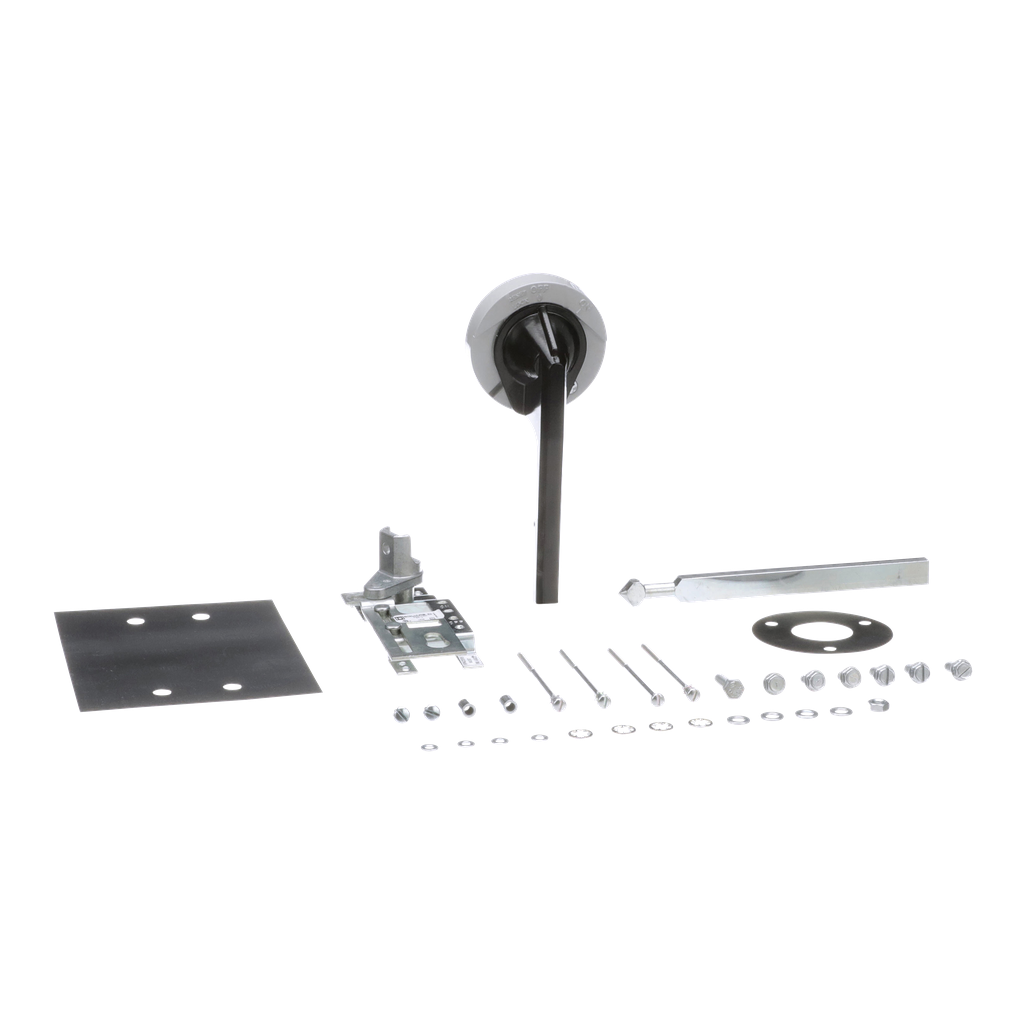

The Square D 9421LR4 NEMA 600 VAC 400 Amp Operating Mechanism is designed for use with LAL, LHL, and Q4L circuit breakers. The kit includes a six-inch handle rated for NEMA 1/3R/12. It features durable metal construction for reliability. This mechanism allows for padlocking in the Off position while the enclosure door is open. The handle assemblies can be secured with padlocks to prevent unauthorized access.

• Compatible with 2 or 3 pole circuit breakers
• Trip indication feature included
• UL and CSA certified for safety and compliance

Product Highlights

This operating mechanism kit allows a mounting depth from six inches to twenty-one and a half inches from the circuit breaker surface to the enclosure door. The mechanism is suitable for heavy-duty applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9421LR4
• Voltage Rating: 600 VAC
• Amperage Rating: 400 Amp
• Handle Length: 6 inches
• Enclosure Type: NEMA 1/3R/12
• Trip Type: LAL/LHL or Q4L 400A
• Country of Origin: Mexico
• Warranty Length: 18 months
