Square D 9421LP1 NEMA 600 VAC 250 Amp Operating Mechanism

Product Description

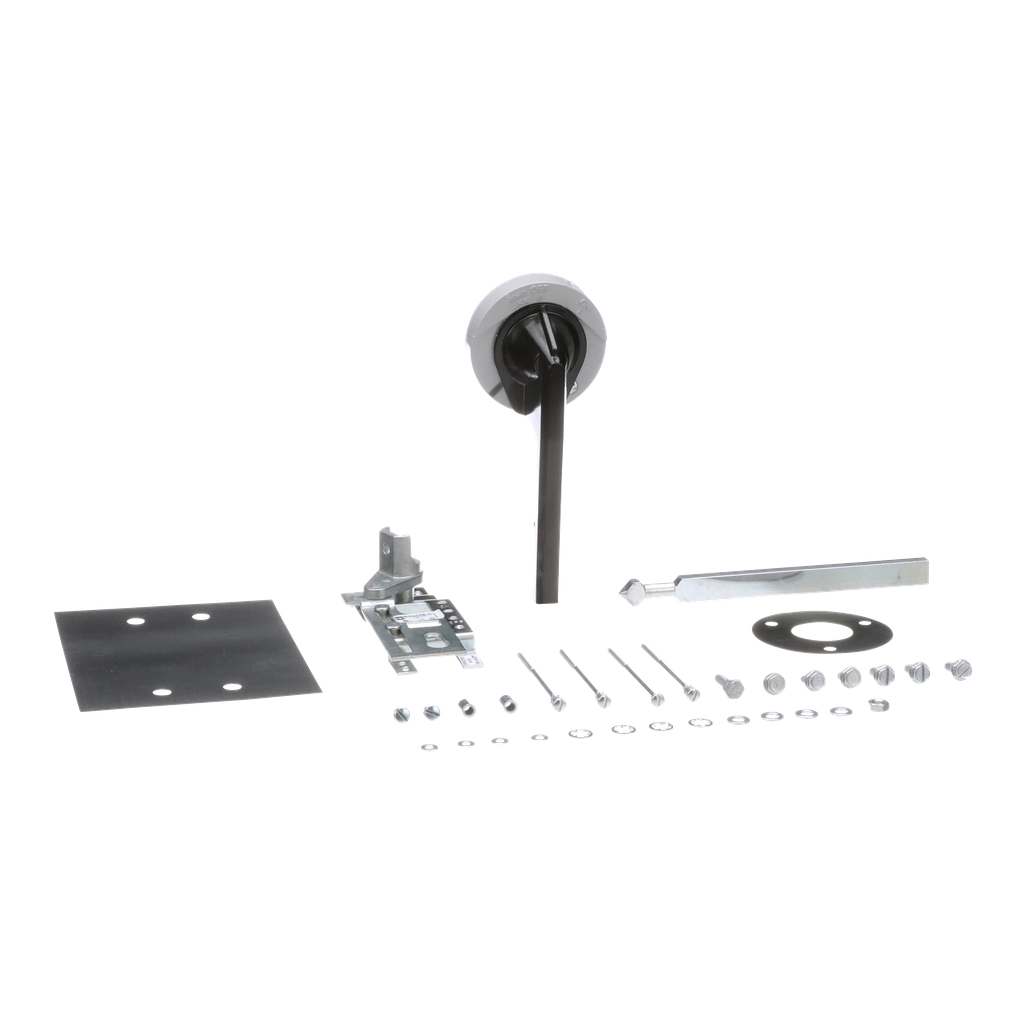

The Square D operating mechanism model 9421LP1 is designed for NEMA 600 VAC applications and supports a maximum of 250 amps. This robust mechanism features an all-metal construction for reliability. The kit allows for padlocking in the off position to ensure safety during maintenance. It is compatible with KAL, KCL, and KHL circuit breakers and supports both two and three-pole configurations.

• Heavy-duty all-metal construction
• Compatible with specific circuit breaker types
• UL recognized and CSA certified

Product Highlights

The operating mechanism includes a six-inch handle rated NEMA 1/3R/12 and has a depth adjustment range of six point twenty-five inches to eleven point nineteen inches, making it versatile for various installations.

Product Information

Standard Information

• Brand: Square D
• MPN: 9421LP1

Technical Specifications

• Voltage: 600 VAC
• Amperage: 250 Amp
• Handle Length: 6 inches
• Enclosure Type: NEMA 1/3R/12
• Catalog Number: 9421LP1
• Country of Origin: United States
• Warranty: 18 months
• UPC: 785901830085
