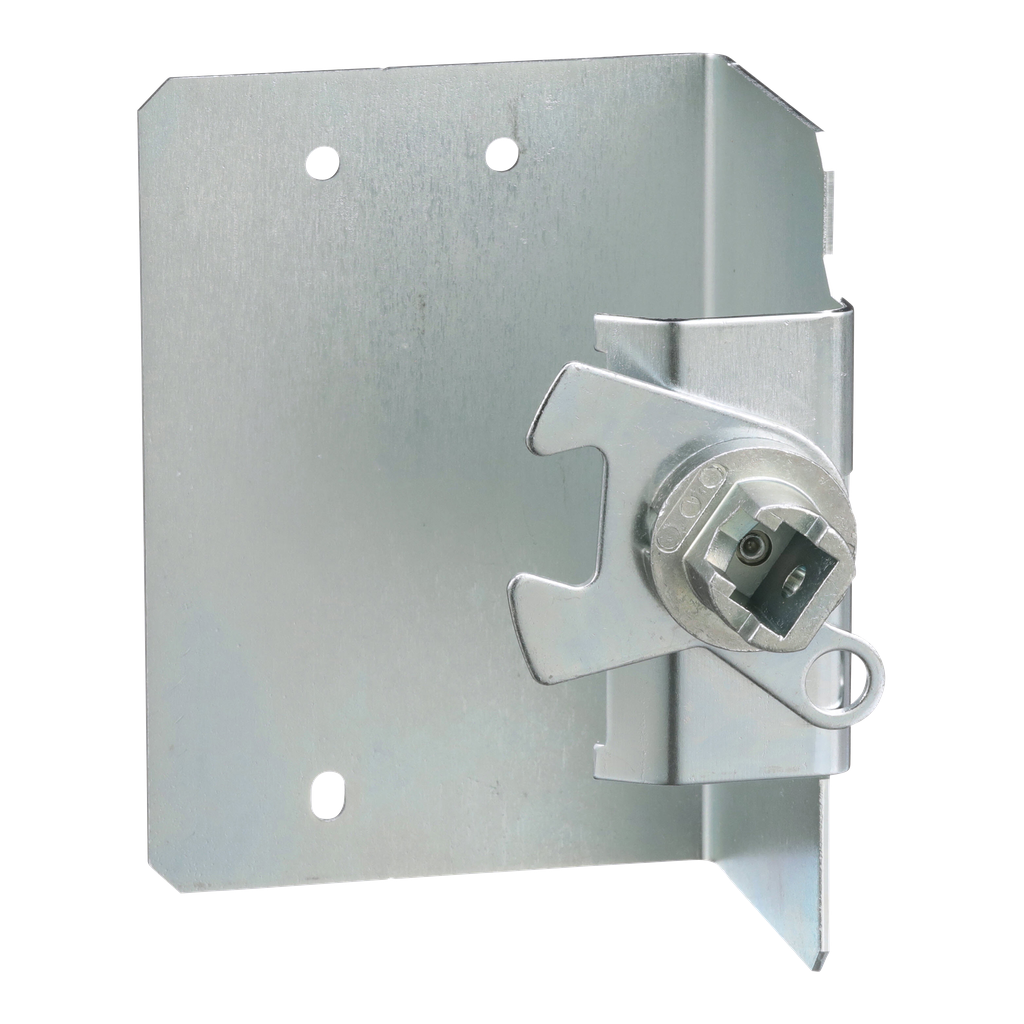

Square D 9421LJ7 Nema 600 Vac 250 Amp Rotary Operating Mechanism

Product Description

The Square D 9421LJ7 Nema 600 VAC 250 Amp Rotary Operating Mechanism is designed for heavy-duty applications. This operating mechanism is suitable for Type L door mounted setups and operates with PowerPact H and J circuit breakers, compatible with both two-pole and three-pole configurations.

• UL Component Recognized and CSA certified for safety.
• All-metal construction with trip indication enhances durability.
• Allows for padlocking in the Off position for safety during maintenance.

Product Highlights

The operating mechanism features a variable depth design, allowing for flexibility in installation based on the enclosure depth. It can be locked with up to three padlocks to prevent unauthorized access.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9421LJ7
• Voltage: 600 VAC
• Amperage: 250 Amp
• Applications: PowerPact H or J, MG-NSF Circuit Breakers
• Country of Origin: Mexico
• Warranty Length: 18 months
• GTIN: 00785901538028
• UPC: 785901538028
