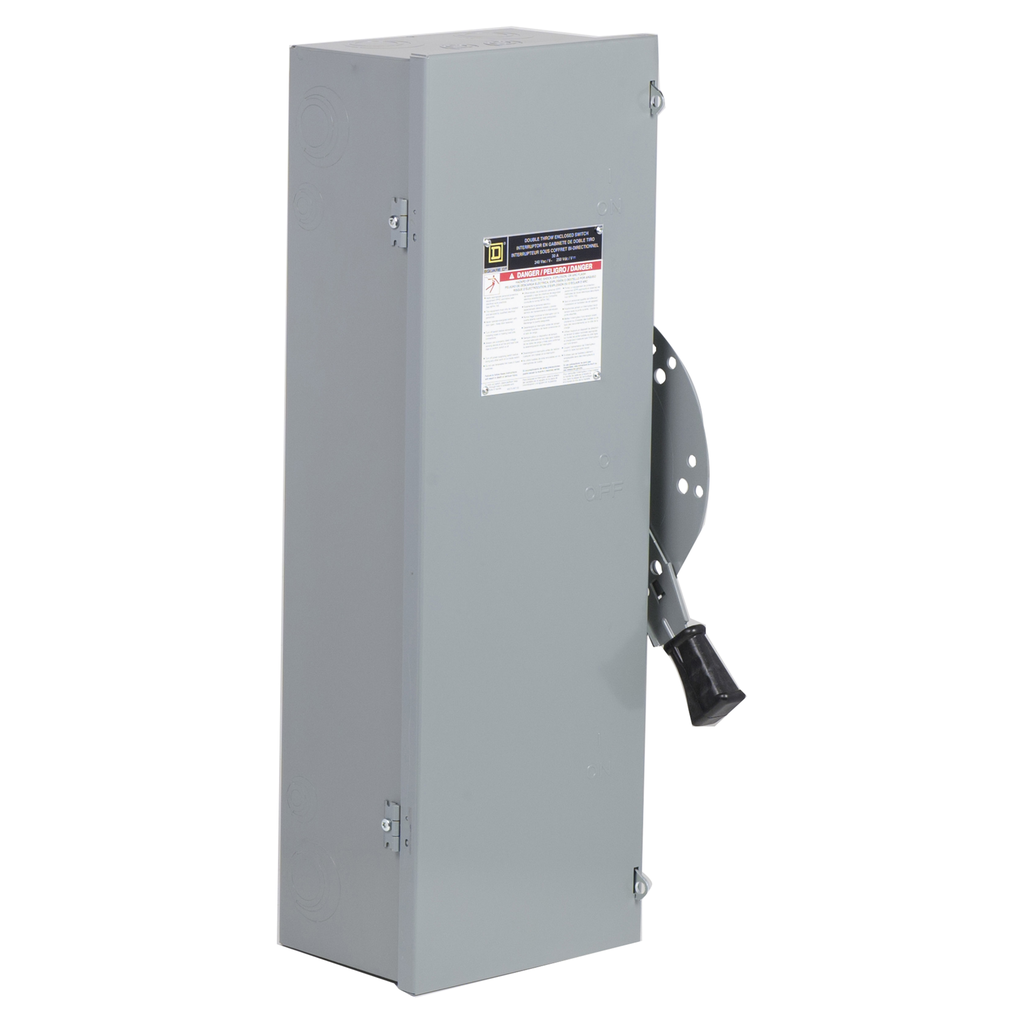

Square D 92451 240 VAC 30 Amp 4-Pole Non-Fusible Double Throw Safety Switch

Product Description

The Square D brand by Schneider Electric offers the model 92451, a 240 volt, thirty amp, four-pole non-fusible double throw safety switch. This switch is suitable for residential, light commercial, and industrial applications. The double throw feature allows users to transfer loads between two different power sources. The switch is designed to provide high mechanical endurance and can be modified for field conversion to transfer loads.

• Rated current of thirty amps
• UL listed certifications
• Surface mounted with a NEMA 1 rating

Product Highlights

This switch features a tough design that ensures reliability in demanding conditions, allowing for effective manual transfer of one load between two power sources.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 92451
• Voltage: 240 Volt
• Amperage: 30 Amp
• Number of Poles: 4 Pole
• Mounting Type: Surface
• Dimensions: 11.75 inches (H) × 10 inches (W) × 4.75 inches (D)
• Weight: 9.04 lb
• Warranty Length: 18 months
