Square D 9080LBC365208 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 3-Pole Standard Power Distribution Block

Product Description

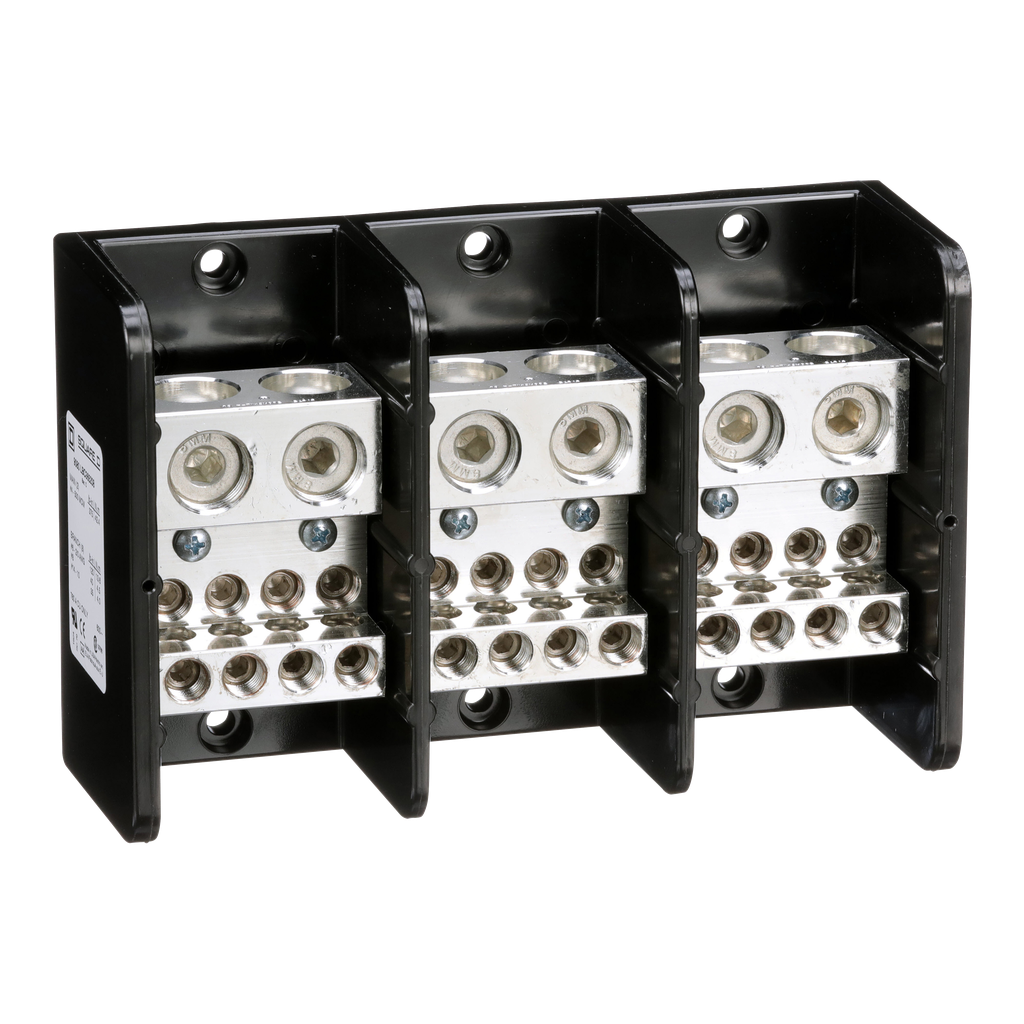

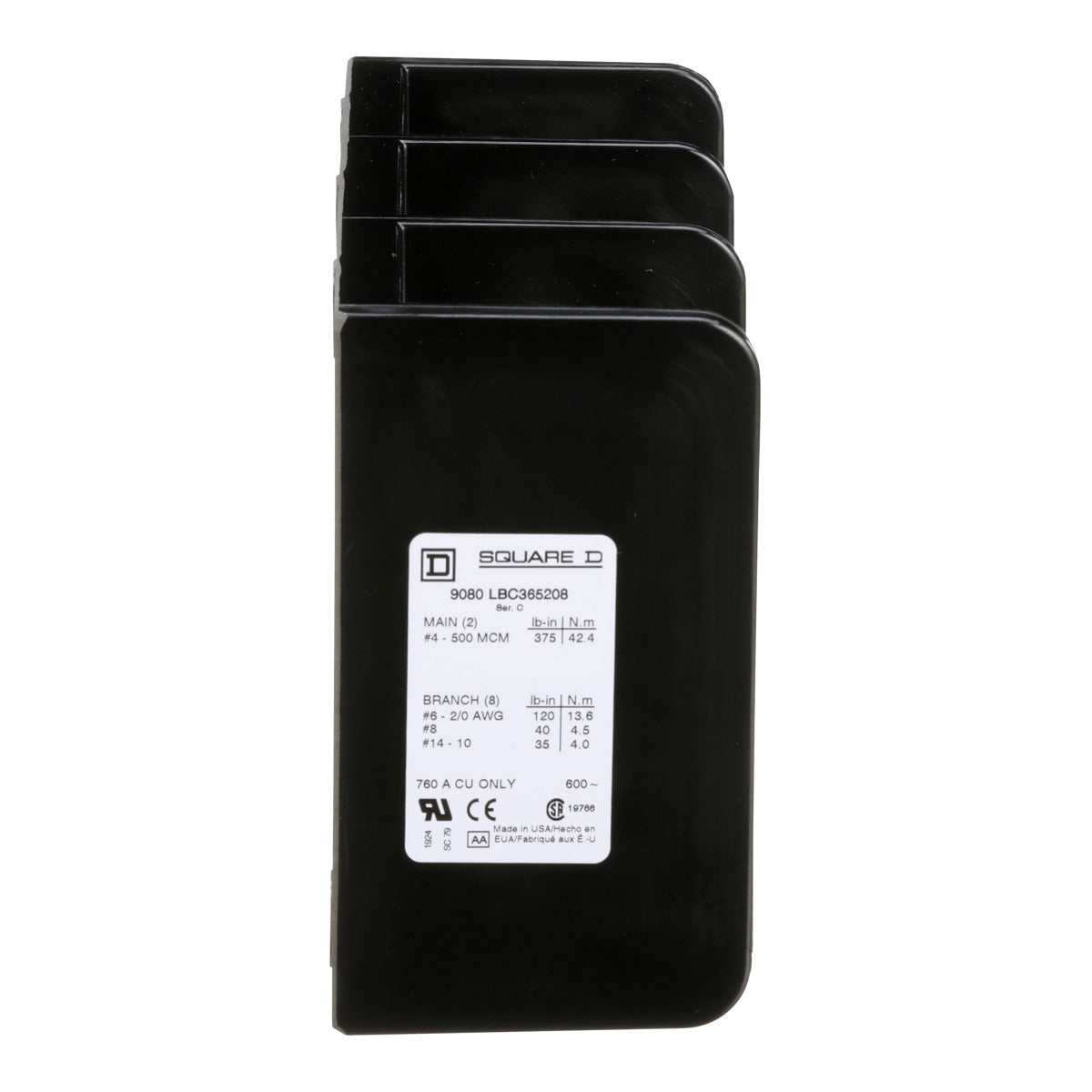

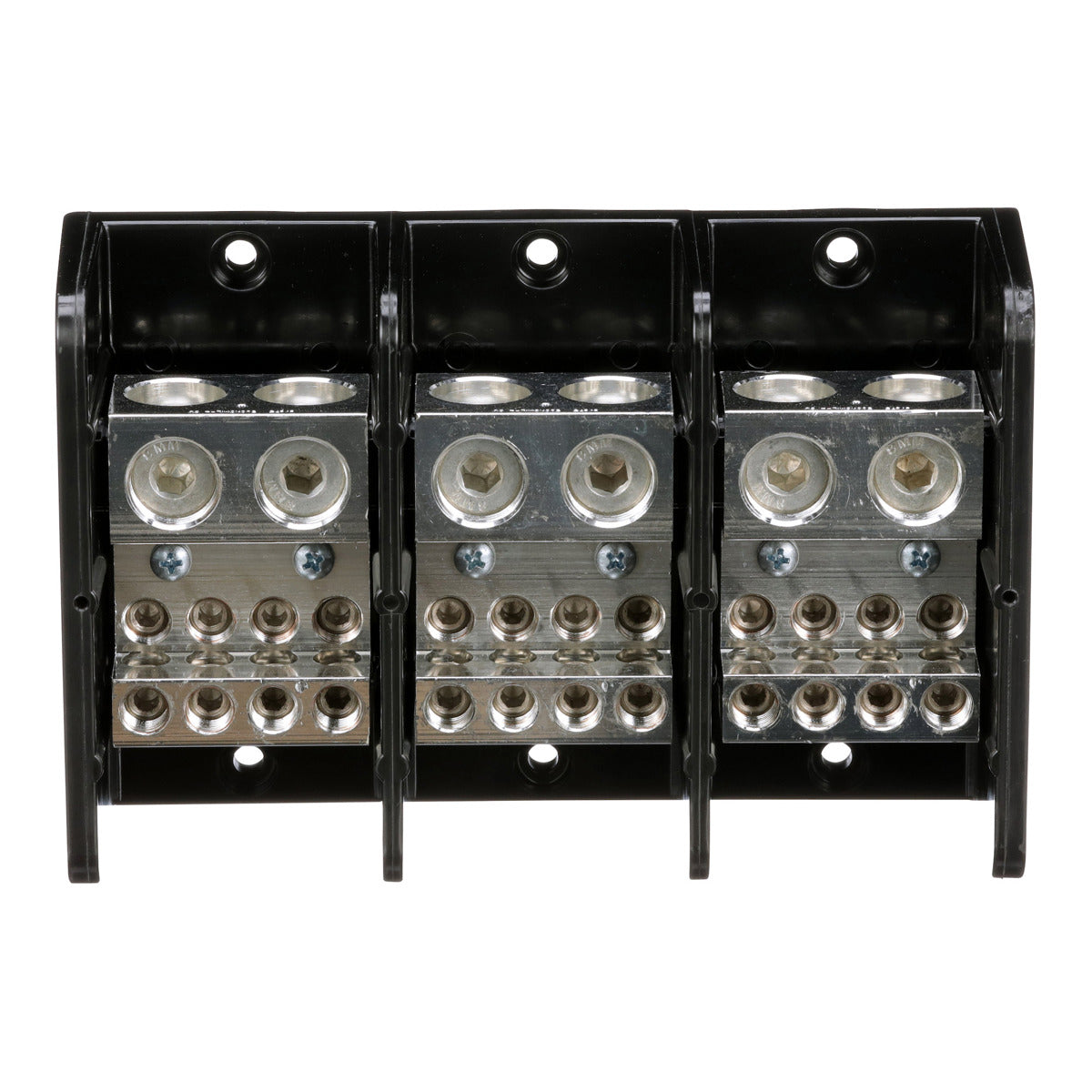

Square D 9080LBC365208 is a power distribution block for terminating wires. It is built according to NEMA standards and features a three-pole design. The block has two lug openings on the line side and eight on the load side. The line lugs accommodate wire sizes from four AWG to five hundred kcmil, while the load lugs are suitable for sizes 14 AWG to 2/0. Rated for 760 amperes and 600 volts, this block is made with copper lugs and phenolic housing.

• Three pole design with robust construction
• Rated for 760 amperes and 600 volts
• UL recognized and CSA certified

Product Highlights

This product is ideal for commercial and industrial electrical applications that require safe and efficient wire termination.

Product Information

Standard Information

• Catalog Number: 9080LBC365208
• Manufacturer: Schneider Electric

Technical Specifications

• Wire Size: Line 4-500 kcmil copper; Load 14-2/0 copper
• Dimensions: Depth 3.13 inches, Width 8.54 inches, Height 5.5 inches
• Material: Phenolic housing
• Operating Temperature: -40 to 302 degrees Fahrenheit
• Connection Type: Tin plated copper lugs
• Warranty Length: 18 months
• Country of Origin: United States
