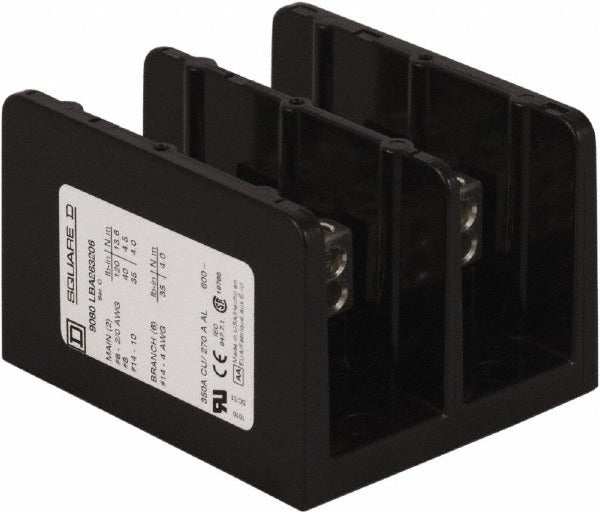

Square D 9080LBC263206 350A 2-pole Distribution Block

Product Description

The SQUARE D 9080LBC263206 is a 2-pole phenolic power distribution block rated for 350 amps (copper) at 600 VAC. It serves as a central termination point for distributing electrical power from a single main feed to multiple branch circuits within a panel, enclosure, or industrial control cabinet. The phenolic housing provides solid dielectric insulation at line voltage. With 2 primary connections and 6 secondary connections, this block supports one main lug input per pole and distributes to up to 6 downstream conductors per pole. Licensed electricians install this block as part of panelboard builds, motor control centers, or custom enclosure wiring projects.

This distribution block is suited for commercial and industrial electrical installations where branch circuit distribution is required at 600 VAC or below. Typical applications include power distribution panels, machine control enclosures, and switchgear assemblies. The 2-pole configuration handles both legs of a single-phase or split-phase distribution system. It meets CE, CSA, RoHS, and UL Listed standards, making it appropriate for installations subject to North American and international compliance requirements.

Key Features

• 350-amp (copper) rating per pole at 600 VAC
• 2 primary connections and 6 secondary connections for flexible branch distribution
• Phenolic housing for high dielectric strength and heat resistance
• UL Listed, CSA, CE, and RoHS certified
• Compact form factor at 5.3 x 4.4 x 3 inches for enclosure-friendly mounting
• Weighs 1.32 pounds for easy handling during panel assembly

Compatibility

Designed as an OEM-style replacement or new-installation power distribution block for use in electrical enclosures, panelboards, and motor control centers rated up to 600 VAC.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel or enclosure completely and verify zero voltage with a meter before any wiring work. Torque all conductor terminals to the values specified on the block label or manufacturer documentation. Do not exceed the 350-amp copper conductor rating or the 600 VAC voltage rating of this block.
