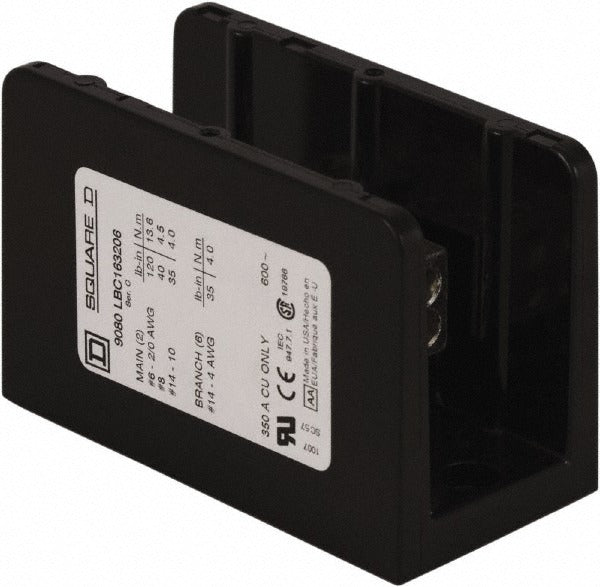

Square D 9080LBC163206 350A 1-pole Distribution Block

Product Description

The SQUARE D 9080LBC163206 is a single-pole power distribution block rated for 350 amps (copper) at 600 VAC, housed in a phenolic enclosure. It is designed to distribute electrical power from a single source to multiple branch circuits within panelboards, enclosures, and industrial control assemblies. The block provides 2 primary connections and 6 secondary connections, making it well suited for applications where one feed must be split cleanly to several downstream loads. Licensed electricians and panel builders are the primary installers of this component.

This distribution block is used in residential, commercial, and light industrial electrical panels and enclosures where a compact, high-ampacity distribution point is required. Its phenolic housing provides solid dielectric insulation properties at elevated voltage ratings. The 2-primary, 6-secondary configuration supports common power distribution layouts in motor control centers, junction enclosures, and custom control panels where clean termination of multiple branch conductors is needed.

Key Features

• 350-amp copper conductor rating at 600 VAC for high-capacity circuit distribution
• Single-pole design with 2 primary and 6 secondary connection points
• Phenolic housing offers durable electrical insulation
• Meets CE, CSA, RoHS, and UL Listed standards
• Compact footprint at 4 inches long, 2.6 inches wide, and 1.9 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation distribution block for use in 600 VAC-rated electrical enclosures and panelboard assemblies requiring single-pole power distribution.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the circuit before making any terminations. Verify conductor sizing is appropriate for the 350-amp rating before landing wires on the block. Do not exceed the rated voltage or amperage of the block under any operating condition.
