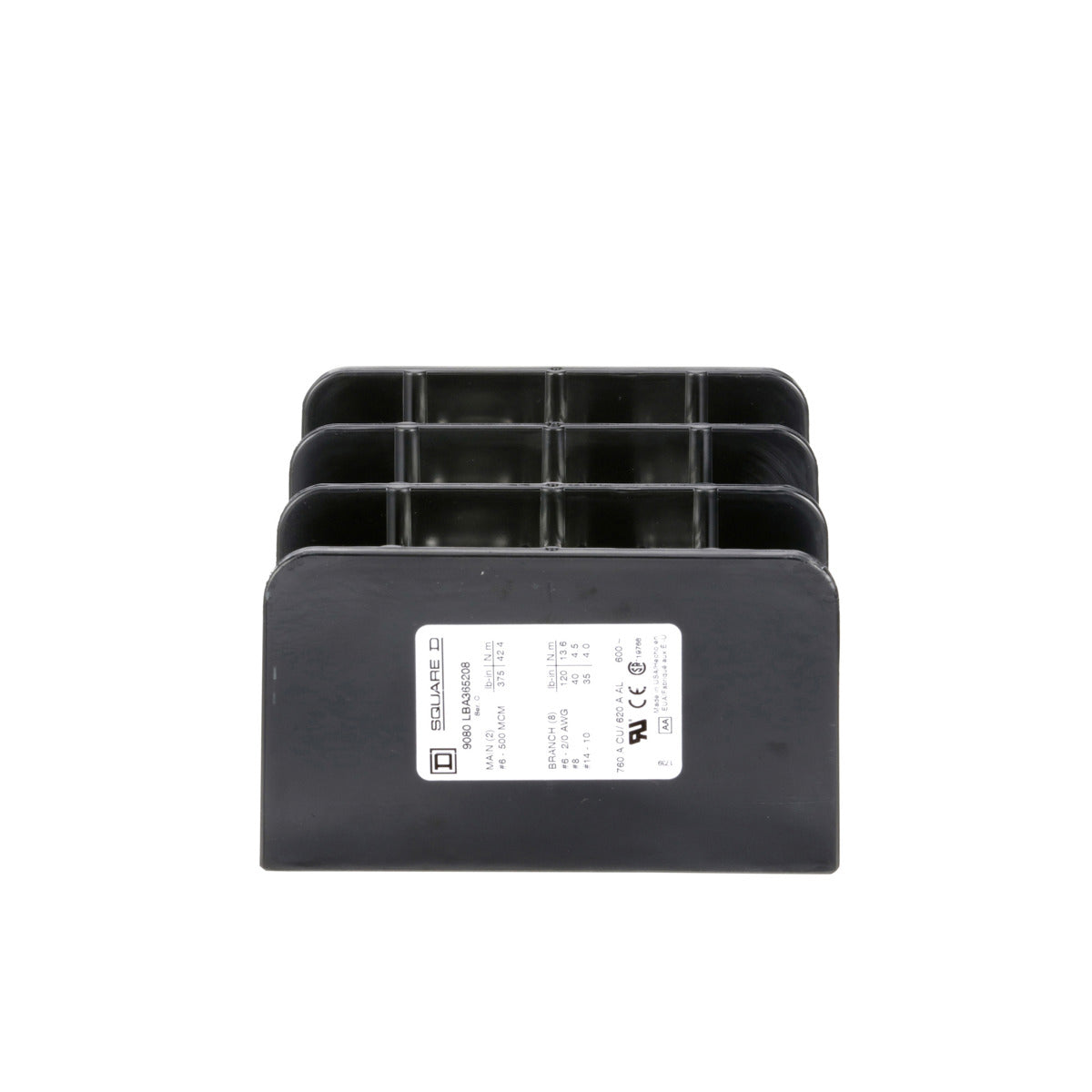

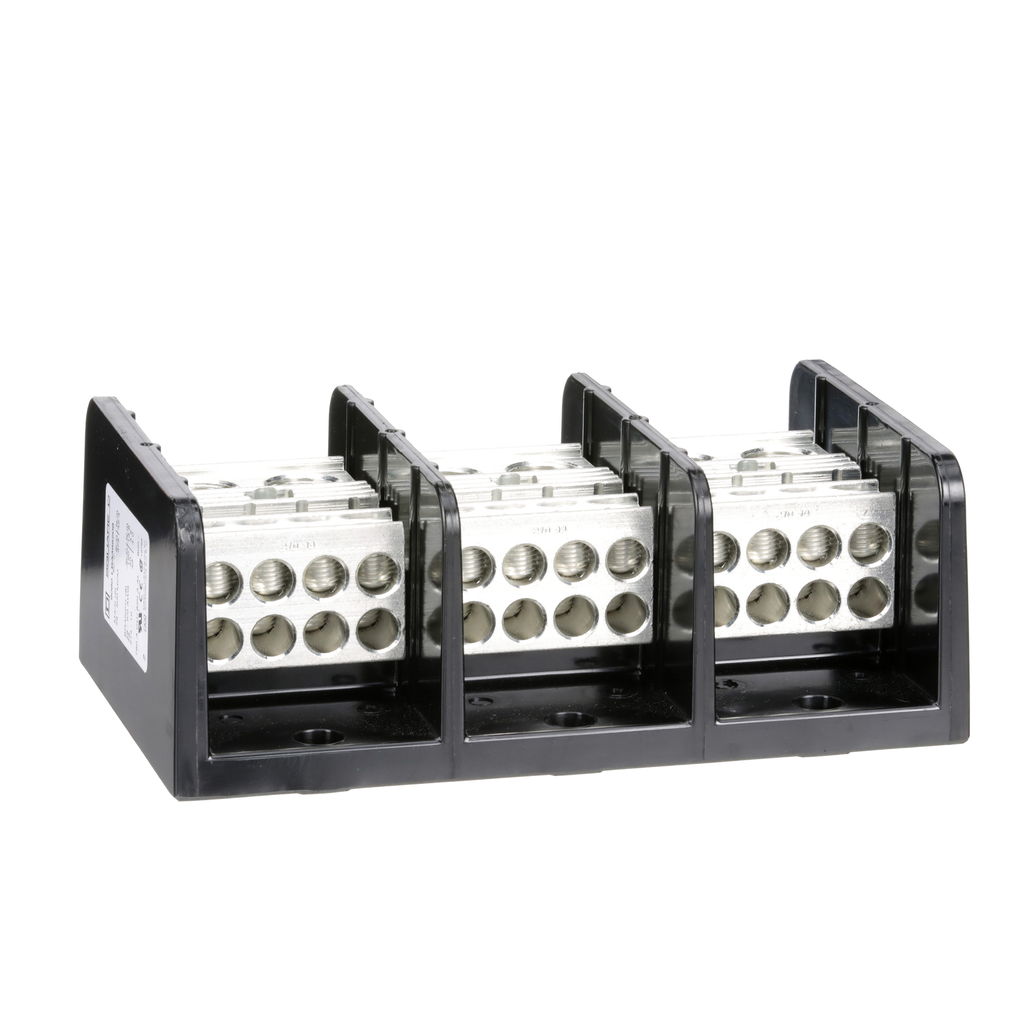

Square D 9080LBA365208 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 3-Pole Standard Power Distribution Block

Product Description

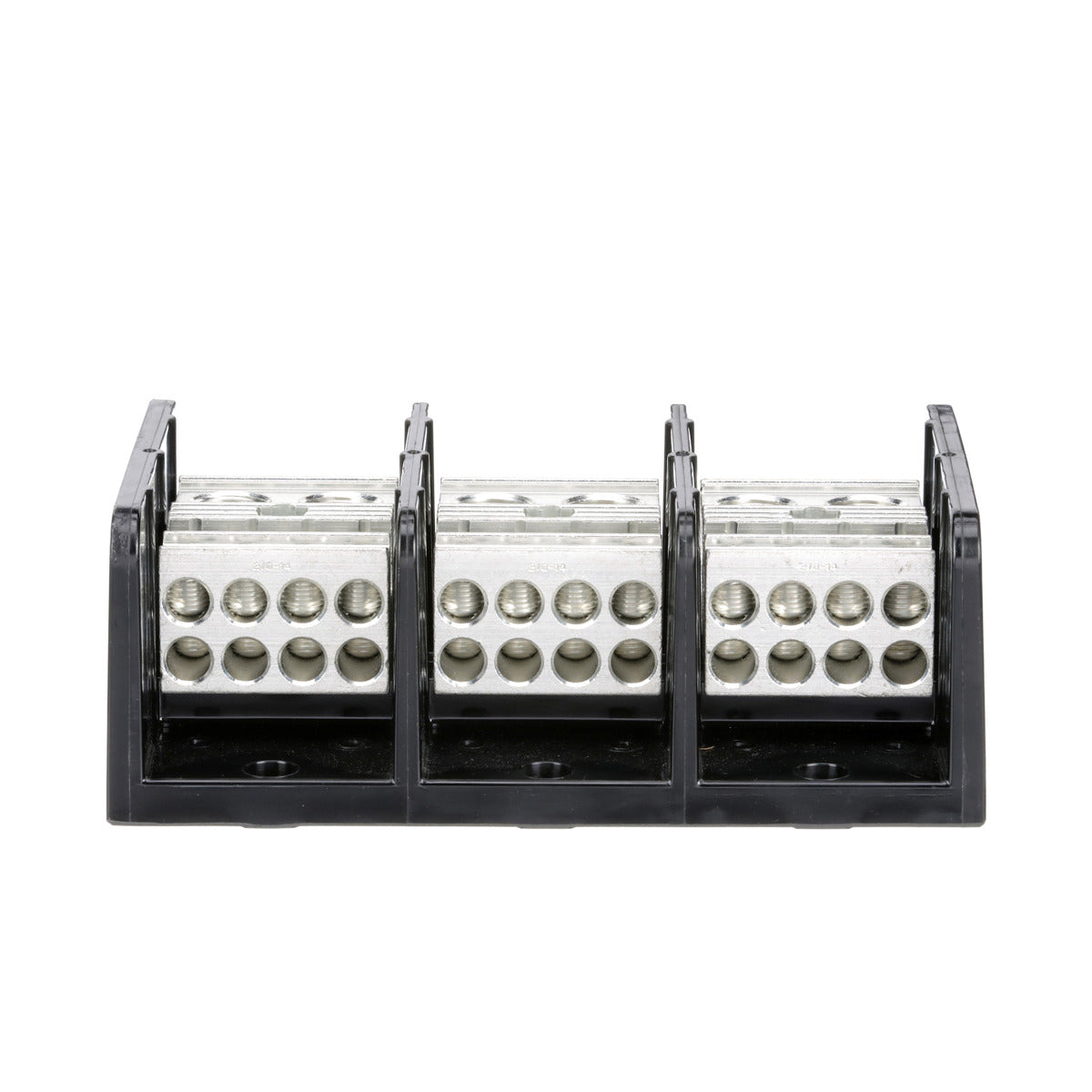

The Square D 9080LBA365208 is designed for wire termination under NEMA standards. This power distribution block comes with three poles, featuring two lug openings on the line side and eight lug openings on the load side. The line lug accommodates wire sizes from #6 to 500 kcmil, while the load side supports wire sizes from #14 to 2/0.

• Rated for 760 amperes with copper wire and 620 amperes with aluminum wire
• UL component recognized and CSA certified
• Constructed with general purpose phenolic housing

Product Highlights

This product is essential for electrical installations requiring reliable power distribution. Suitable for various applications, it meets strict safety certifications and guidelines.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA365208
• Weight: 3.66 lb
• Material: Phenolic
• Current Rating: 760 Amp copper, 620 Amp aluminum
• Voltage Rating: 600 Volt
• Wire Size: Line 4 AWG to 500 kcmil; Load 14 AWG to 2/0 AWG
• Number of Poles: 3
• Country of Origin: USA
• Warranty: 18 months
