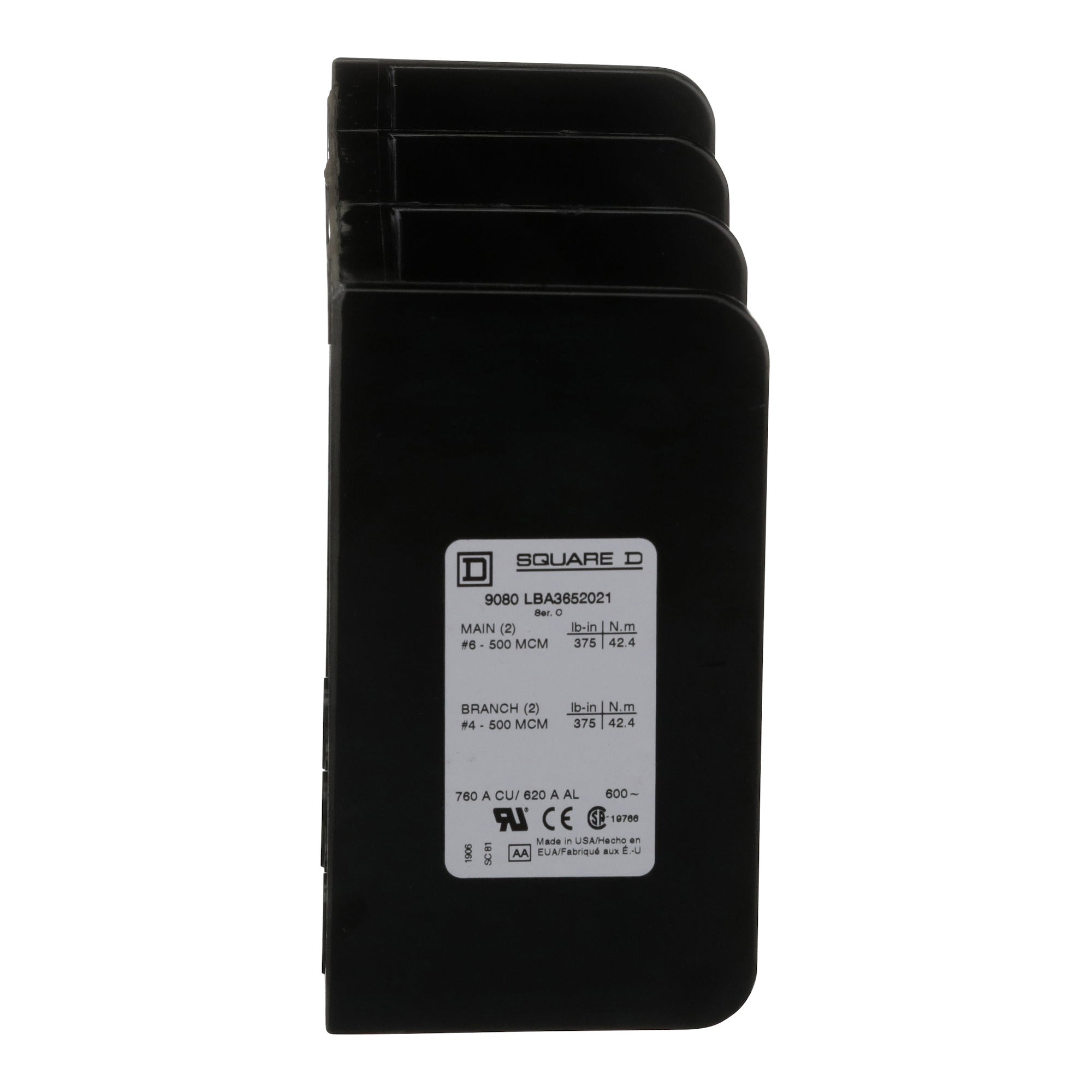

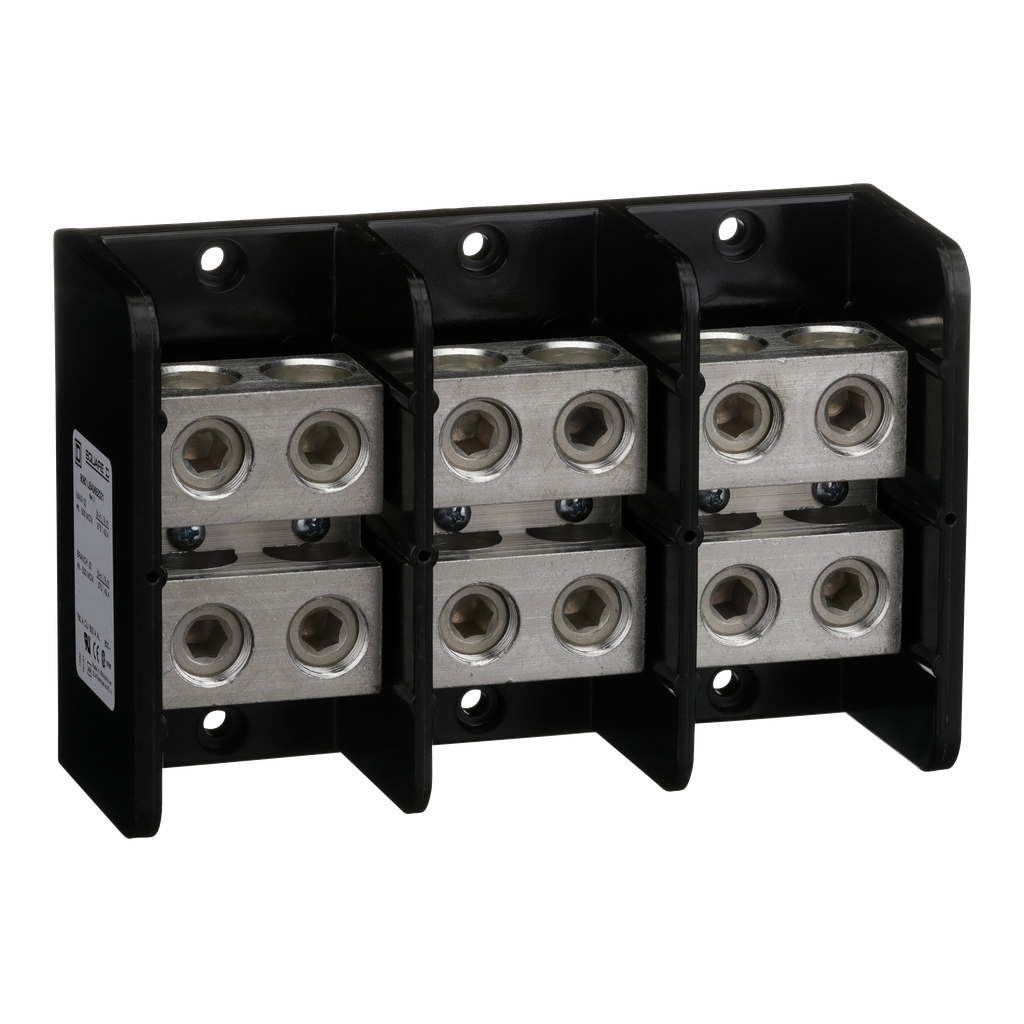

Square D 9080LBA3652021 Power Distribution Block 600 Volt 760 Amp

Product Description

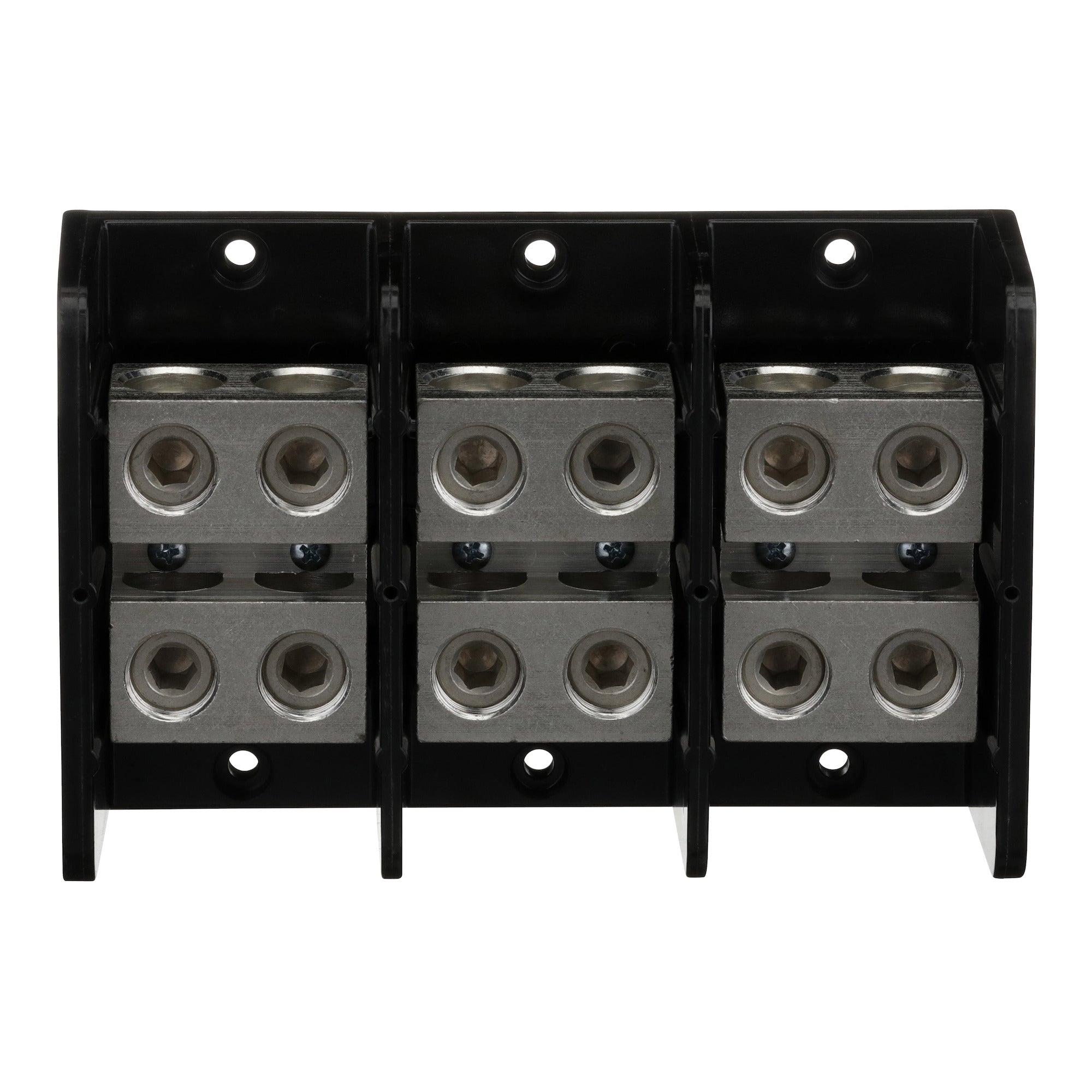

Square D 9080LBA3652021 is a power distribution block for wiring connections. It is rated for 600 volts and can handle 760 amperes with copper wire and 620 amperes with aluminum wire. This device features three poles, with two lug openings on both the line and load sides. It meets NEMA standards, ensuring durability and reliability in various installations.

• Compatible with #6 to 500 kcmil copper or aluminum wire
• UL component recognized and CSA certified
• Constructed from phenolic material

Product Highlights

This power distribution block is designed for surface mounting and includes aluminum lugs for secure connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA3652021
• Voltage: 600 Volt
• Current Ratings: 760 Amp (Copper), 620 Amp (Aluminum)
• Material: Phenolic
• Number of Poles: 3
• Dimensions: 3.13 inches depth, 8.54 inches width, 5.5 inches height
• Warranty Length: 18 months
• Country of Origin: USA
• Operating Temperature: -40 to 302 degrees F
