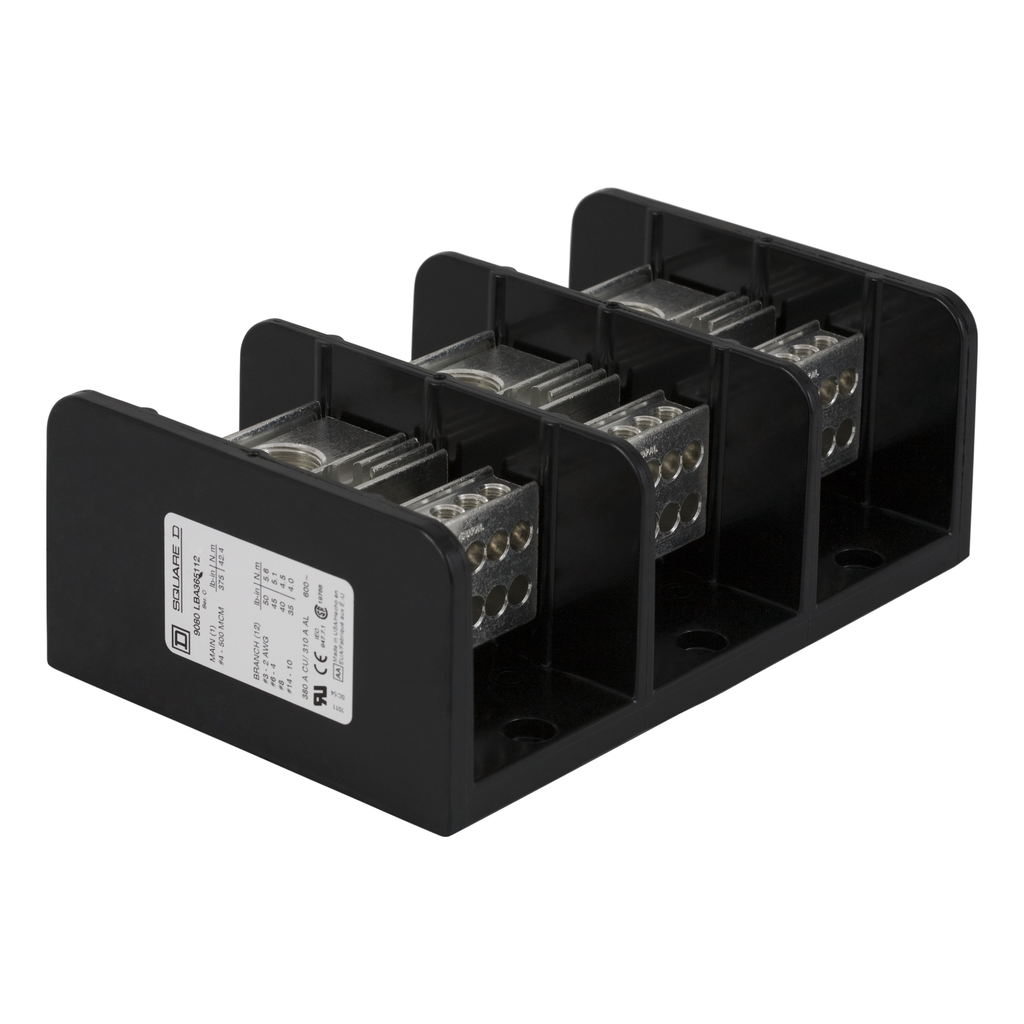

Square D 9080LBA365112 Power Distribution Block 600 Volt 380 Amp

Product Description

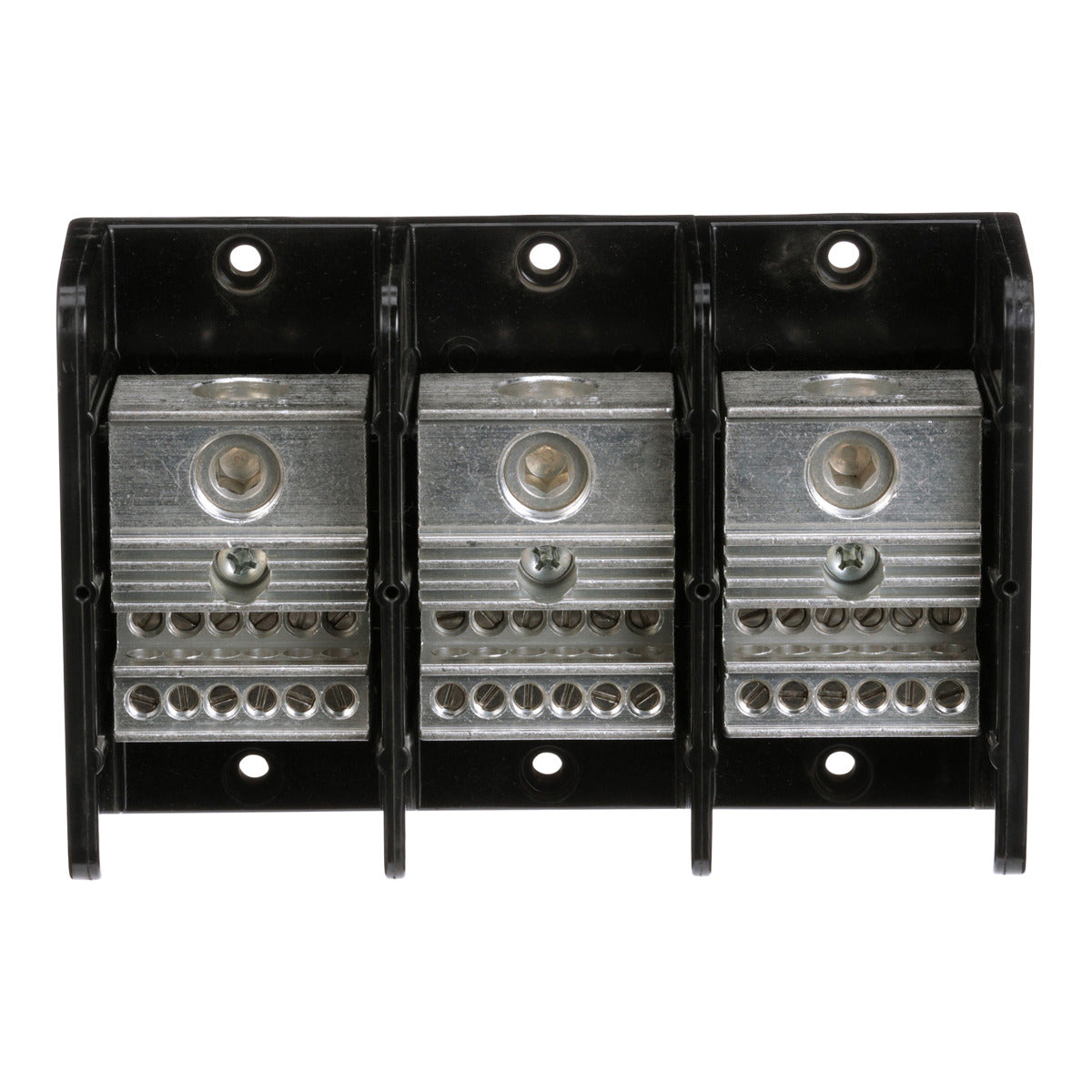

The Square D 9080LBA365112 is a power distribution block designed for effective wire termination and compliant with NEMA standards. It features three poles with one lug opening on the main line and twelve lug openings on the load side. The line lug accommodates wire sizes from four AWG up to five hundred kcmil made of copper or aluminum, while the load lugs can fit wire sizes from fourteen AWG to two AWG of similar materials. Constructed from aluminum, this block's lugs support up to three hundred eighty amperes with copper wire and three hundred ten amperes with aluminum wire, rated for six hundred volts.

• Three pole design with multiple lug openings
• Rated for 600 volts and 380 amperes (copper)
• UL component recognized and CSA certified

Product Highlights

Designed for ease of installation and reliable performance in power distribution applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9080LBA365112
• Voltage Rating: 600 Volt
• Current Rating: 380 Amp (copper), 310 Amp (aluminum)
• Material: Phenolic housing
• Number of Poles: 3 Pole
• Dimensions: 3.13 inches (depth), 3.17 inches (width), 5.5 inches (height)
• Wire Size: 1 line rated for AWG 4...500 kcmil; 12 load rated for AWG 14...2
• Country of Origin: USA
