Square D 9080LBA365106 Power Distribution Block 600 Volt 380 Amp

Product Description

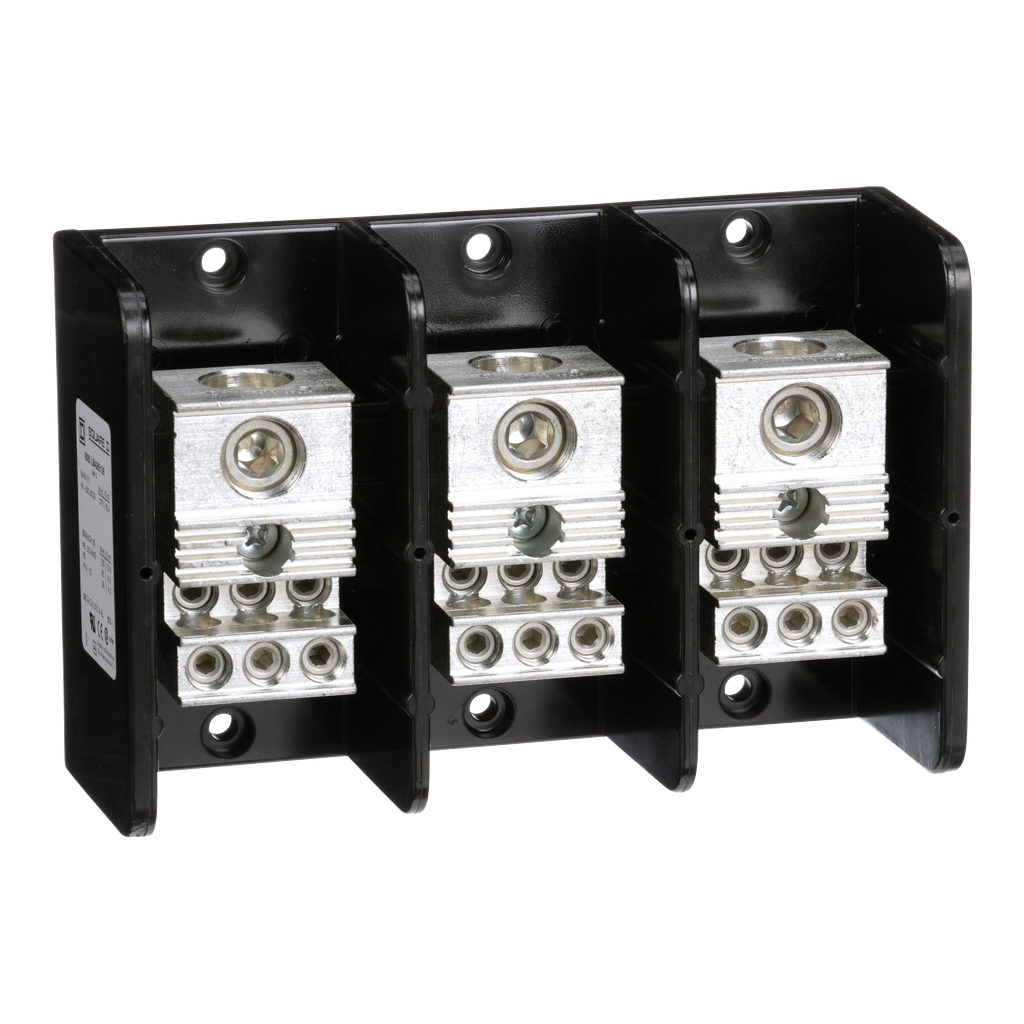

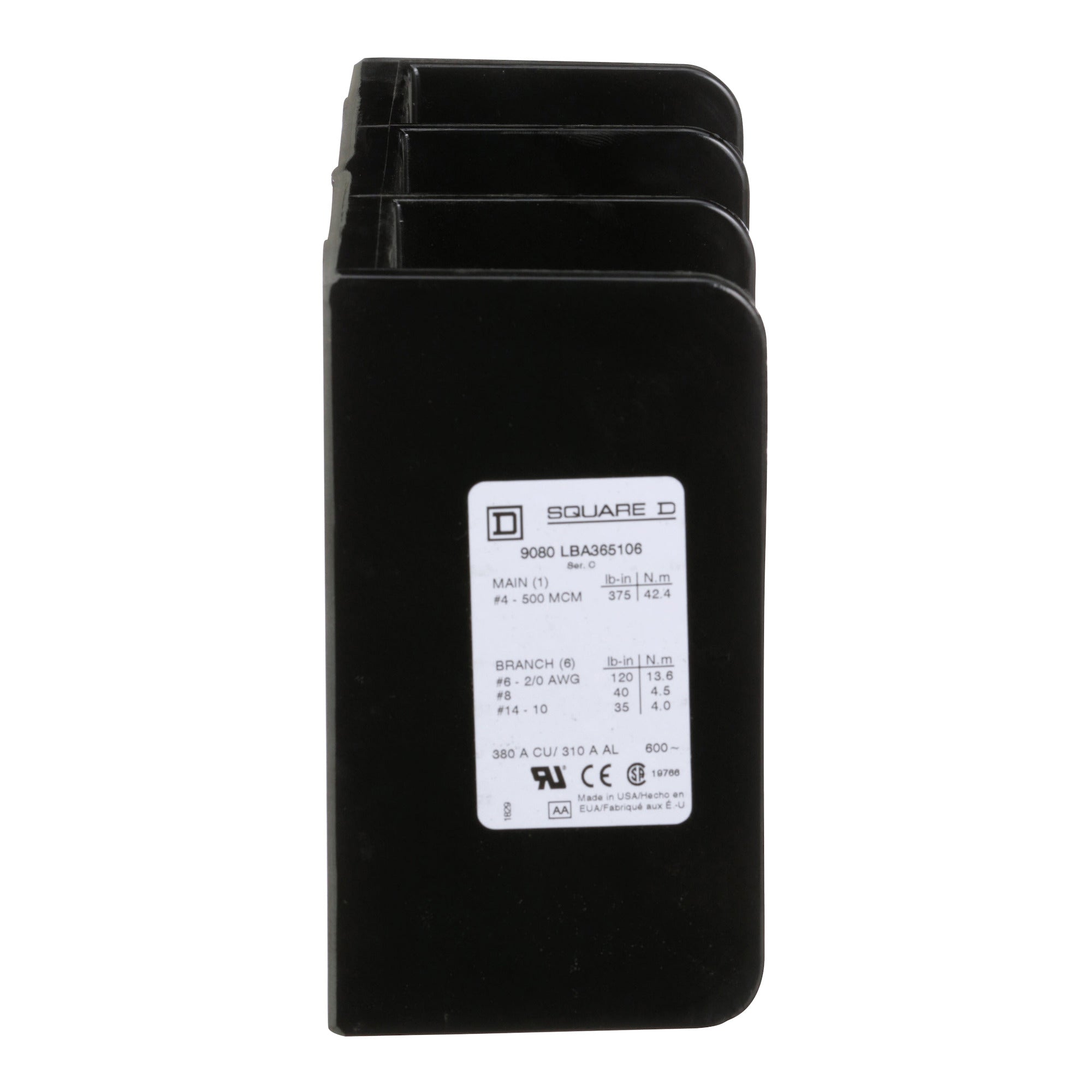

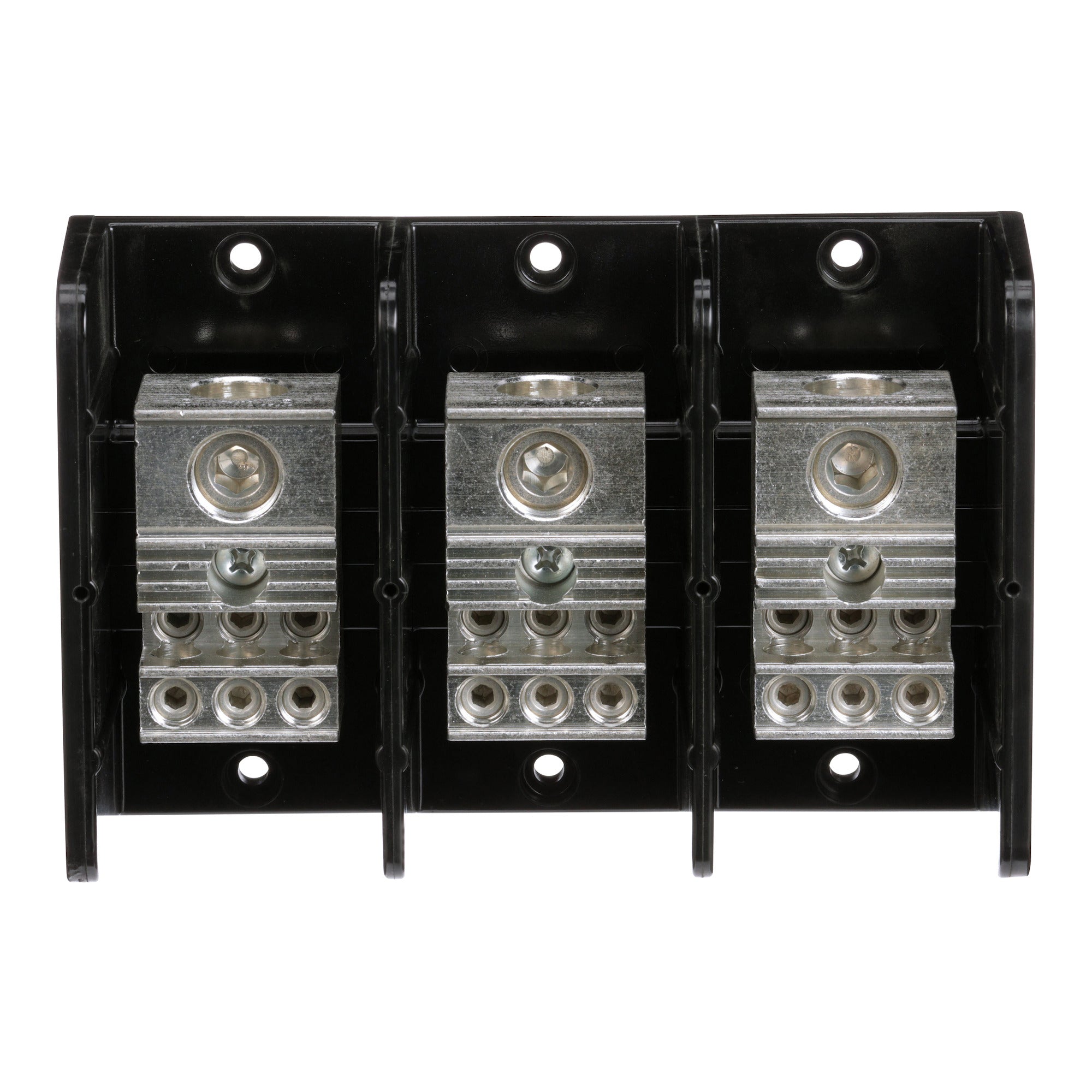

Square D 9080LBA365106 is a power distribution block suitable for wire termination. This block uses NEMA standards. It has three poles, with one lug opening on the line side and six on the load side. The line side lug accepts wire sizes from #4 to 500 kcmil for copper or aluminum. The load side lug accommodates wire sizes from #14 to 2/0 for copper or aluminum. The aluminum lugs support up to 380 amperes for copper and 310 amperes for aluminum, at a voltage of 600 volts. The block's housing is constructed from general-purpose phenolic material. This distribution block is UL recognized and CSA certified.

• Rated for 600 volts and 380 amperes copper or 310 amperes aluminum.
• UL recognized and CSA certified.
• Constructed from durable phenolic material.

Product Highlights

Designed for robustness and efficiency, making it ideal for power distribution applications.

Product Information

Standard Information

• Catalog Number: 9080LBA365106
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Depth: 3.13 inches
• Height: 5.5 inches
• Width: 8.54 inches
• Current Rating: 310 to 380 amperes
• Voltage Rating: 600 volts
• Material: Phenolic
• Wire Size: Line side #4 to 500 kcmil; Load side #14 to 2/0
• Number of Poles: 3
• Made in: USA
