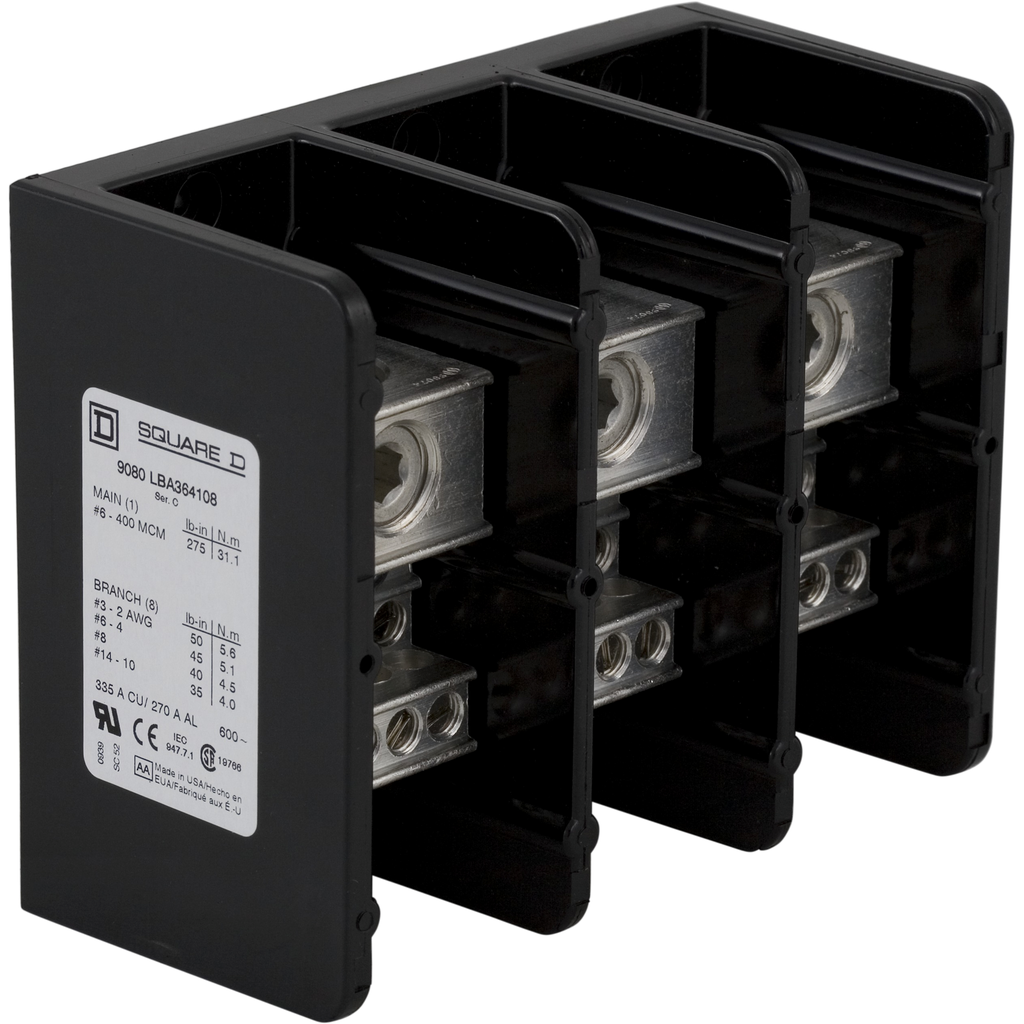

Square D 9080LBA364108 Power Distribution Block 335 Amp 600 Volt 3 Pole

Product Description

The Square D 9080LBA364108 is a power distribution block designed for wire termination in compliance with NEMA standards. It features a three pole setup with one lug opening on the line side and eight lug openings on the load side. The line side accommodation supports wire sizes ranging from four to six hundred kcmil in copper or aluminum. The load side allows connections for wires between fourteen and two AWG in copper or aluminum. This robust block can handle up to three hundred thirty-five amperes with copper wiring and two hundred seventy amperes with aluminum. Rated for six hundred volts, its housing is constructed from general purpose phenolic material. The product meets UL component recognition and CSA certification standards.

• Three pole design with multiple lug openings
• Rated capacity: 335 Amperes for copper, 270 Amperes for aluminum
• Compatible wire sizes: 4 AWG to 600 kcmil (line), 14 AWG to 2 AWG (load)

Product Highlights

This distribution block is suitable for power distribution applications where reliable termination and efficient connectivity are required.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9080LBA364108
• Number of Poles: 3
• Current Rating: 335 A (copper), 270 A (aluminum)
• Voltage Rating: 600 V
• Material: Phenolic
• Dimensions: Depth - 2.91 inches, Width - 6.03 inches, Height - 4.75 inches
• Connection Type: Tin plated aluminum lugs
• Operating Temperature Range: -40 to 302 degrees F
