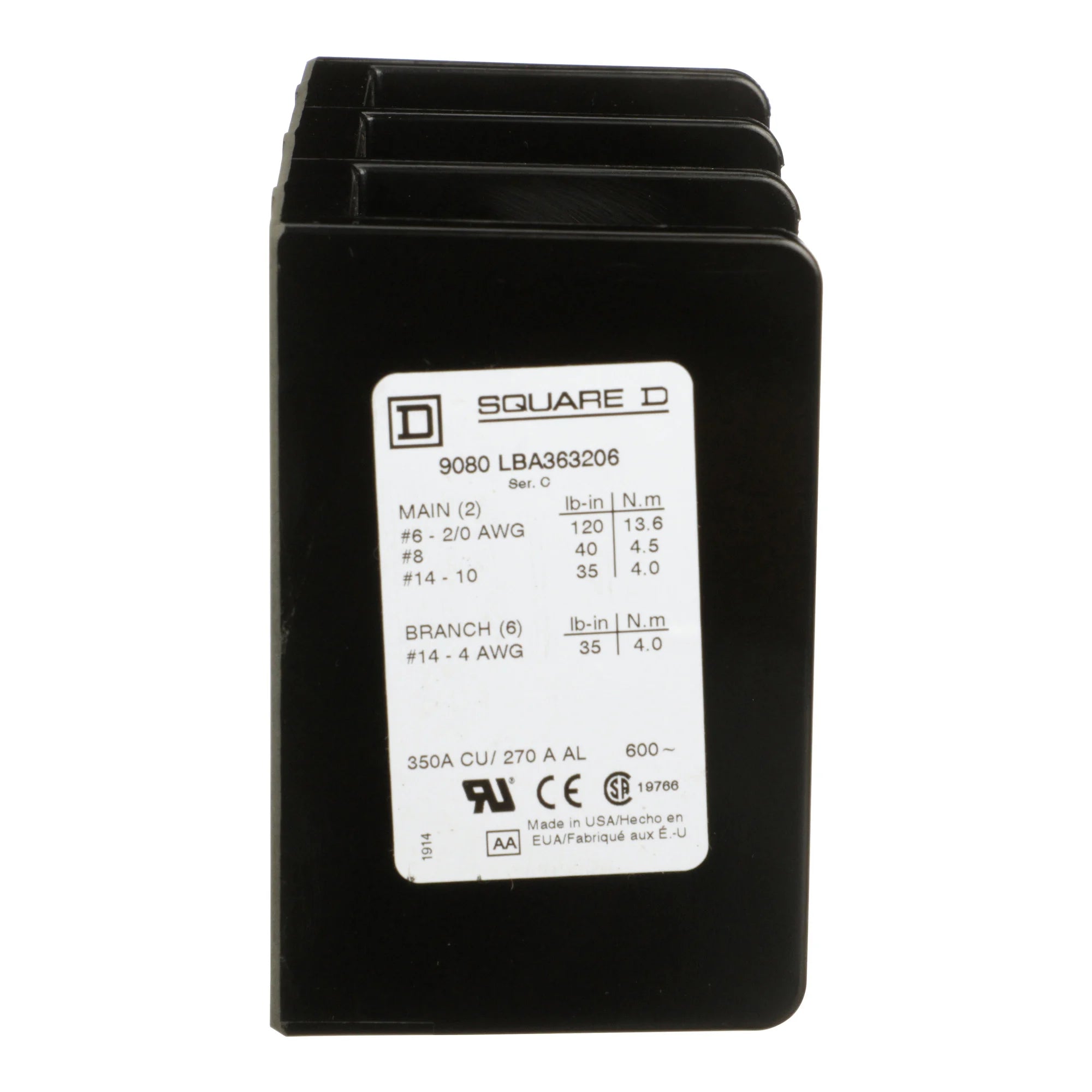

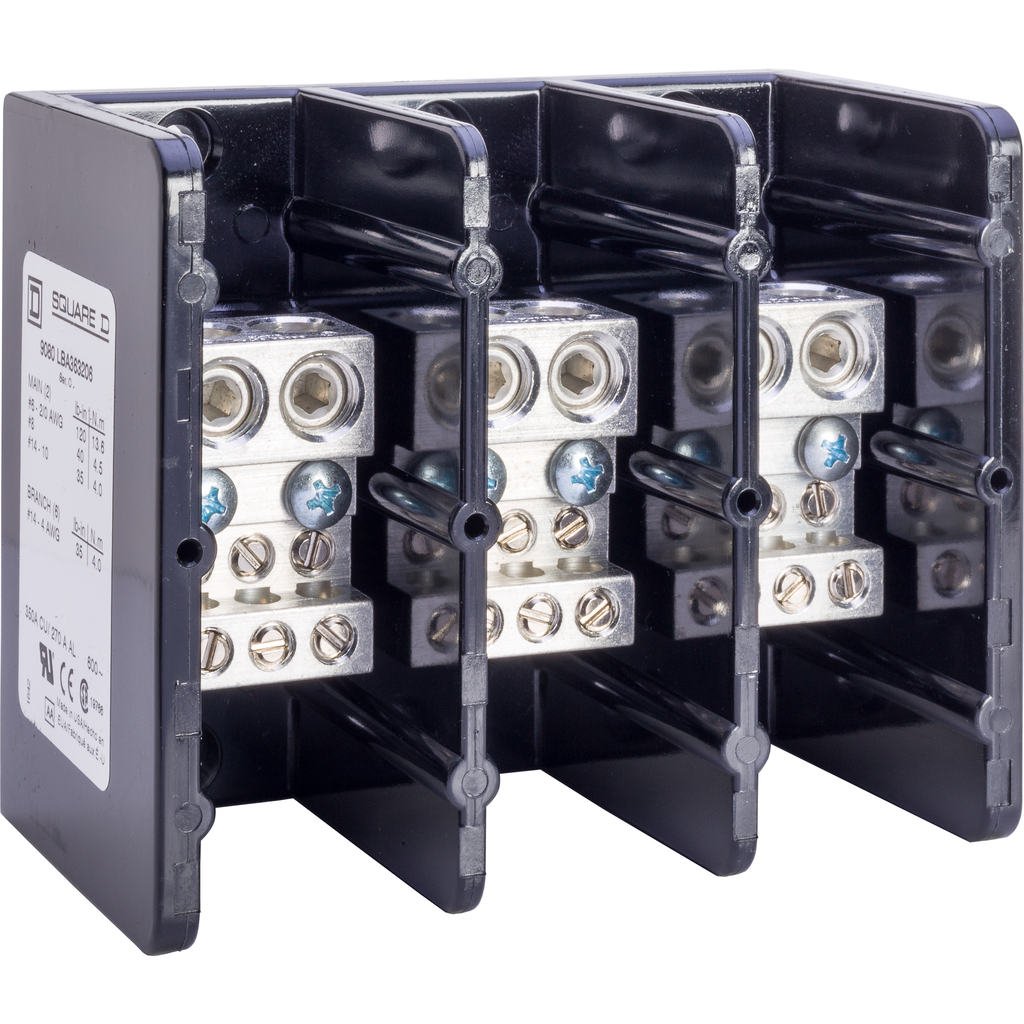

Square D 9080LBA363206 Power Distribution Block 600 Volt 350 Amp

Product Description

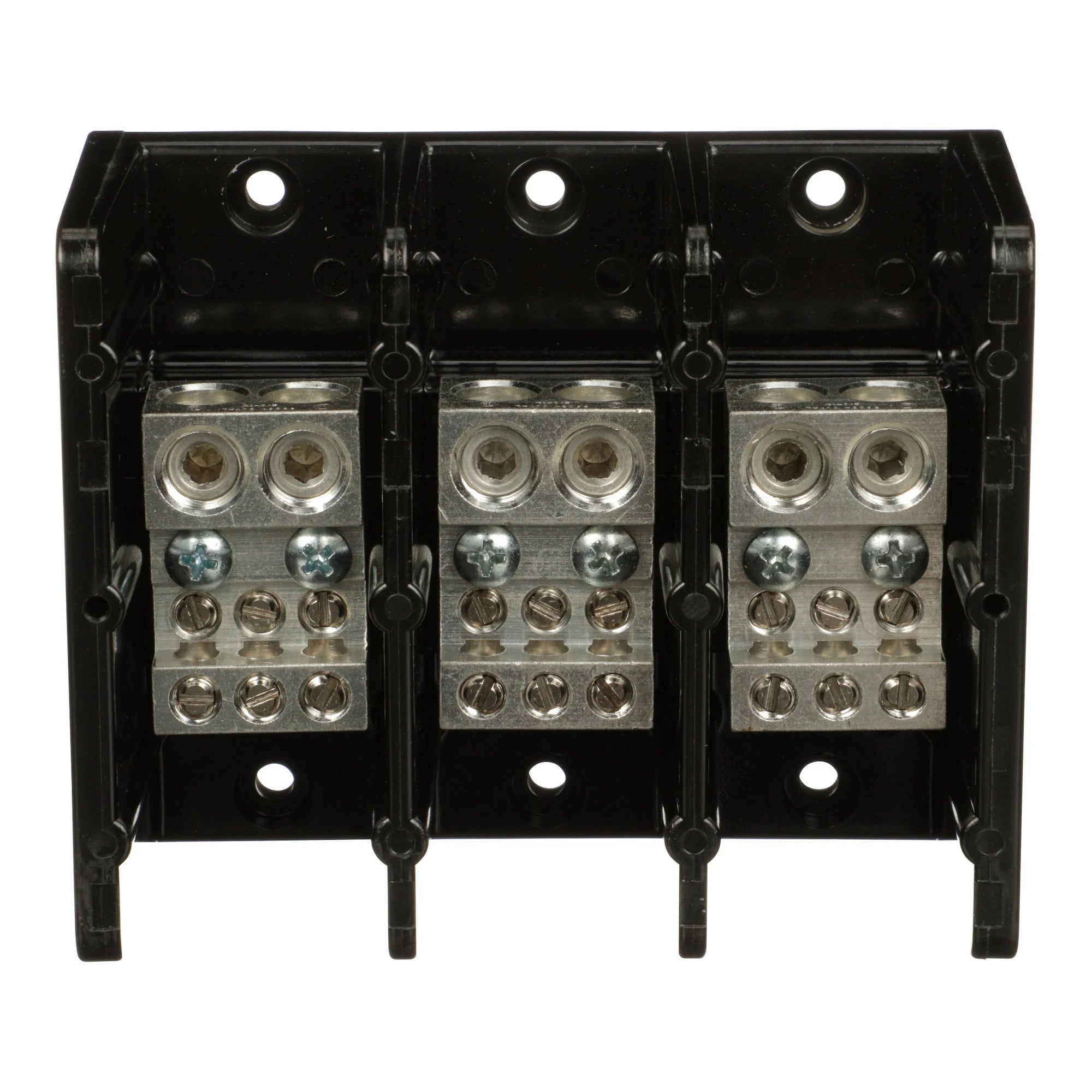

The Square D 9080LBA363206 is a power distribution block designed for terminating wires in accordance with NEMA standards. This three-pole block features two lug openings on the line side and six on the load side. It supports wire sizes from number fourteen to two-ought for copper or aluminum on the line side and number fourteen to number four on the load side. The aluminum lugs can handle 350 amperes with copper wire and 270 amperes with aluminum wire. Rated for 600 volts, the housing is constructed from general-purpose phenolic material and is UL recognized and CSA certified.

• Three-pole configuration
• Two line lugs, six load lugs
• UL recognized and CSA certified

Product Highlights

This product is ideal for applications requiring reliable wire terminations and connections.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA363206
• Voltage Rating: 600 Volt
• Amperage Rating: 350 Amp (Copper), 270 Amp (Aluminum)
• Number of Poles: 3 Pole
• Material: Phenolic Block
• Wire Size: Line 2, AWG 14 to AWG 2/0; Load 6, AWG 14 to AWG 4
• Mounting Type: Surface Mount
• Country of Origin: USA
• Warranty Length: 18 months
