Square D 9080LBA363106 Power Distribution Block 600 Volt 335 Amp 1 Line 6 Load

Product Description

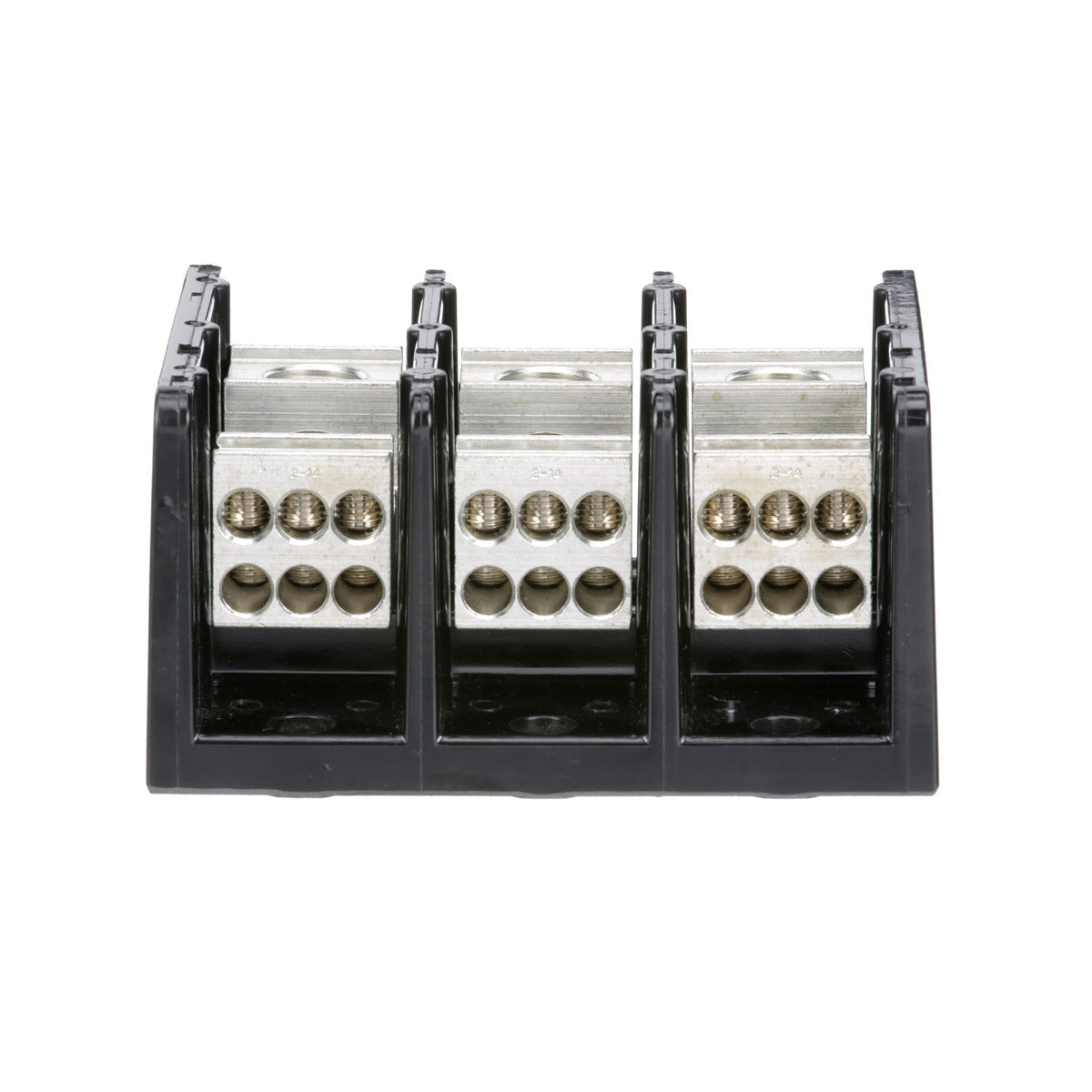

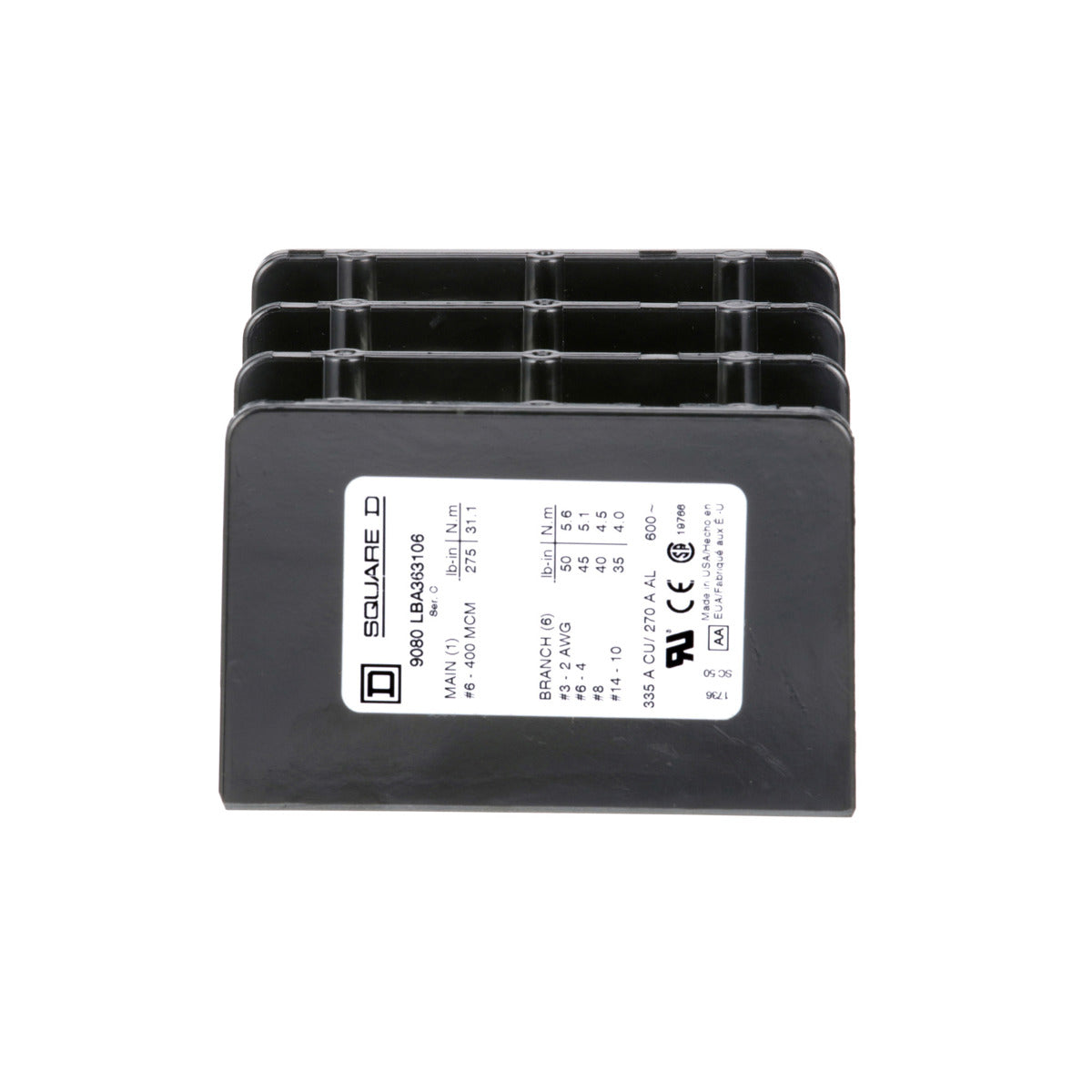

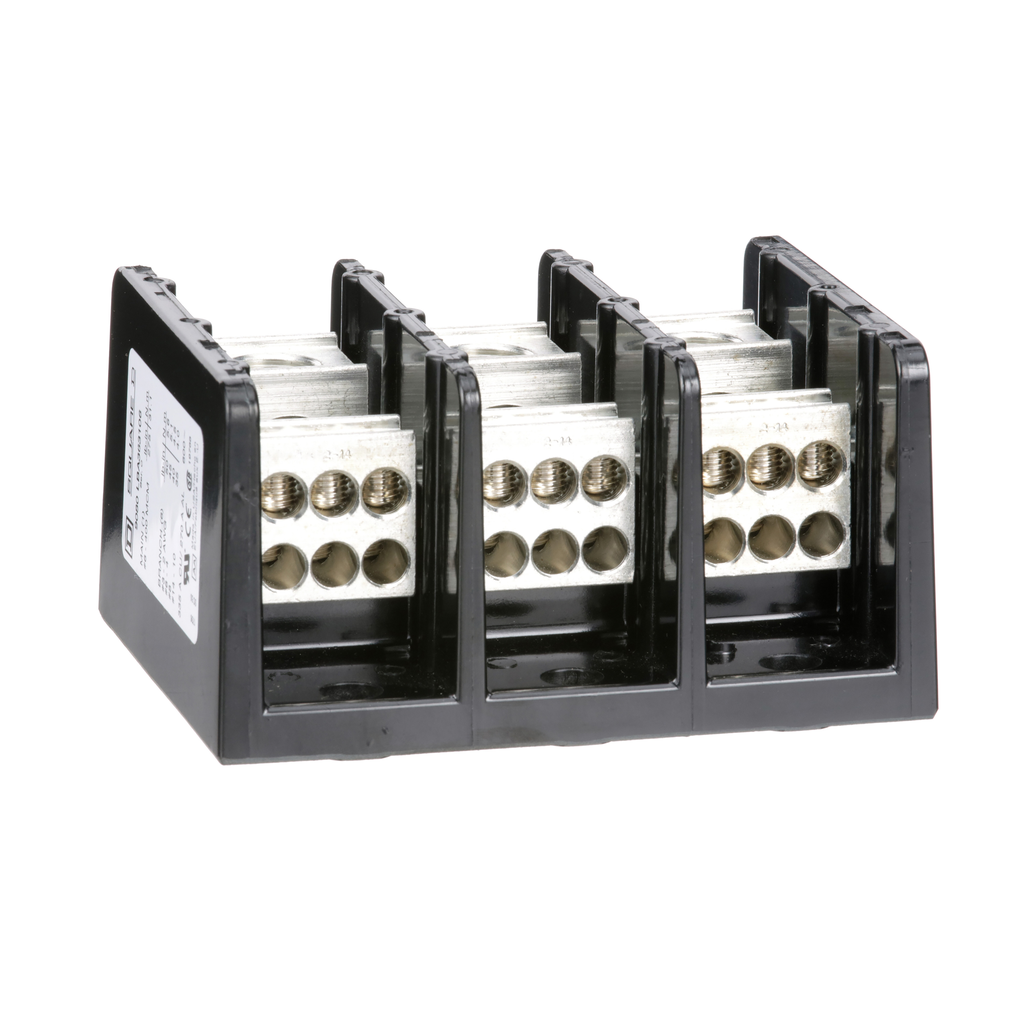

Square D 9080LBA363106 is a power distribution block that meets NEMA standards for wire termination. This three-pole device features one lug opening on the line side and six lug openings for the load side. It accepts one #6 to 400 kcmil copper or aluminum wire on the line side and one #14 to #2 copper or aluminum wire on each load side lug.

• UL component recognized and CSA certified
• Rated for 600 volts and up to 335 amperes with copper wire
• Made with phenolic housing

Product Highlights

Ideal for electrical installations requiring robust and reliable connections, the Square D 9080LBA363106 provides flexibility and safety in a compact design.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA363106
• Voltage: 600 Volt
• Current Ratings: 335 Amperes (copper), 270 Amperes (aluminum)
• Wire Size Line: AWG 6 to 400 kcmil
• Wire Size Load: AWG 14 to 2
• Material: Phenolic
• Dimensions: 2.91 inches depth, 6.03 inches width, 4.75 inches height
• Weight: 1.57 pounds
• Mounting Type: Surface Mount
• Number of Poles: 3
• Country of Origin: USA
