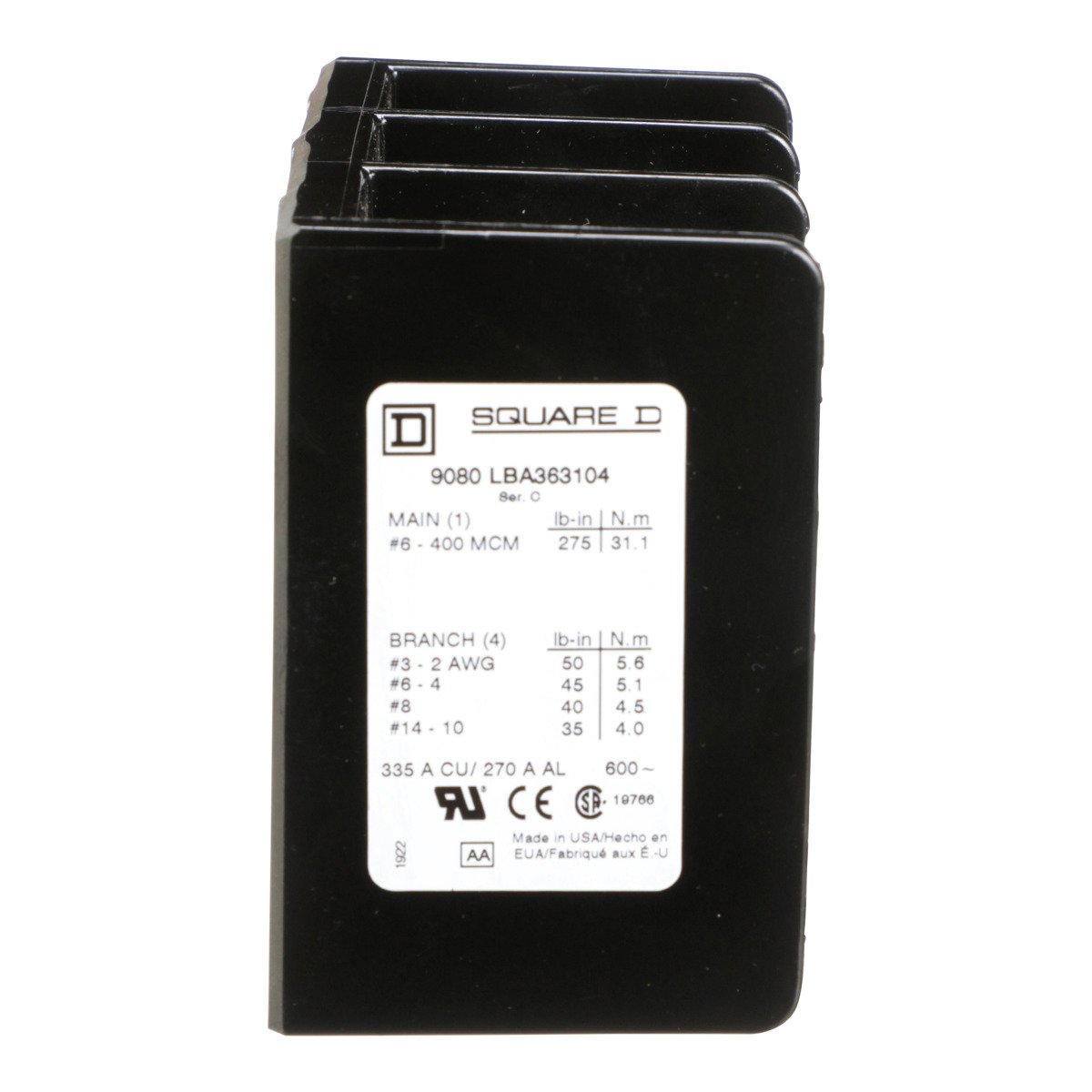

Square D 9080LBA363104 Power Distribution Block 600 Volt 335 Amp 1 Line 4 Load

Product Description

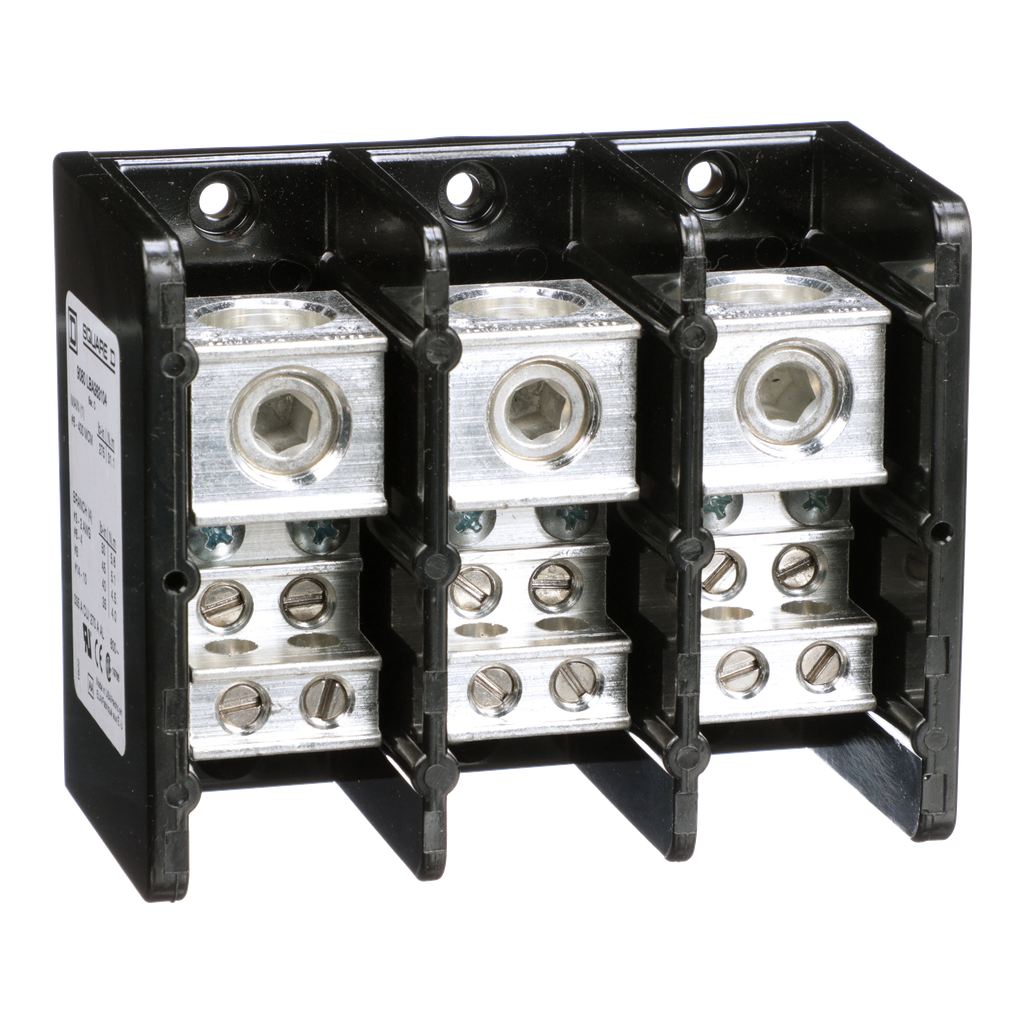

The Square D 9080LBA363104 is a power distribution block designed for wire termination in accordance with NEMA standards. This three-pole block includes one lug opening on the line side and four lug openings on the load side. The line side lug is capable of accepting wire sizes from #6 to 400 kcmil for copper or aluminum. Each load side lug can accommodate wire sizes from #14 to #2 for copper or aluminum. The aluminum lugs are rated for electrical currents of 335 amperes when using copper wire and 270 amperes for aluminum wire. The block operates at a maximum voltage of 600 volts and is housed in a phenolic casing which provides durability. This product is UL recognized and CSA certified, ensuring compliance with safety standards.

• UL recognized and CSA certified.
• Handles wire sizes from #6 to 400 kcmil on the line side.
• Rated for 335 amperes with copper and 270 amperes with aluminum.

Product Highlights

Ideal for reliable line and load connections in electrical installations, ensuring safety and compliance.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 9080LBA363104
• Current Rating: 270-335 Amps
• Voltage Rating: 600 Volts
• Number of Poles: 3
• Material: Phenolic block
• Wire Size: Line 6 - 400 kcmil, Load 14 - 2 AWG
• Dimensions: 2.61 in depth, 1.94 in width, 3.38 in height
• Weight: 1.57 lb
• Operating Temperature: -40 to 302 degrees F
