Square D 9080LBA363101 600 Volt 310 Amp Power Distribution Block

Product Description

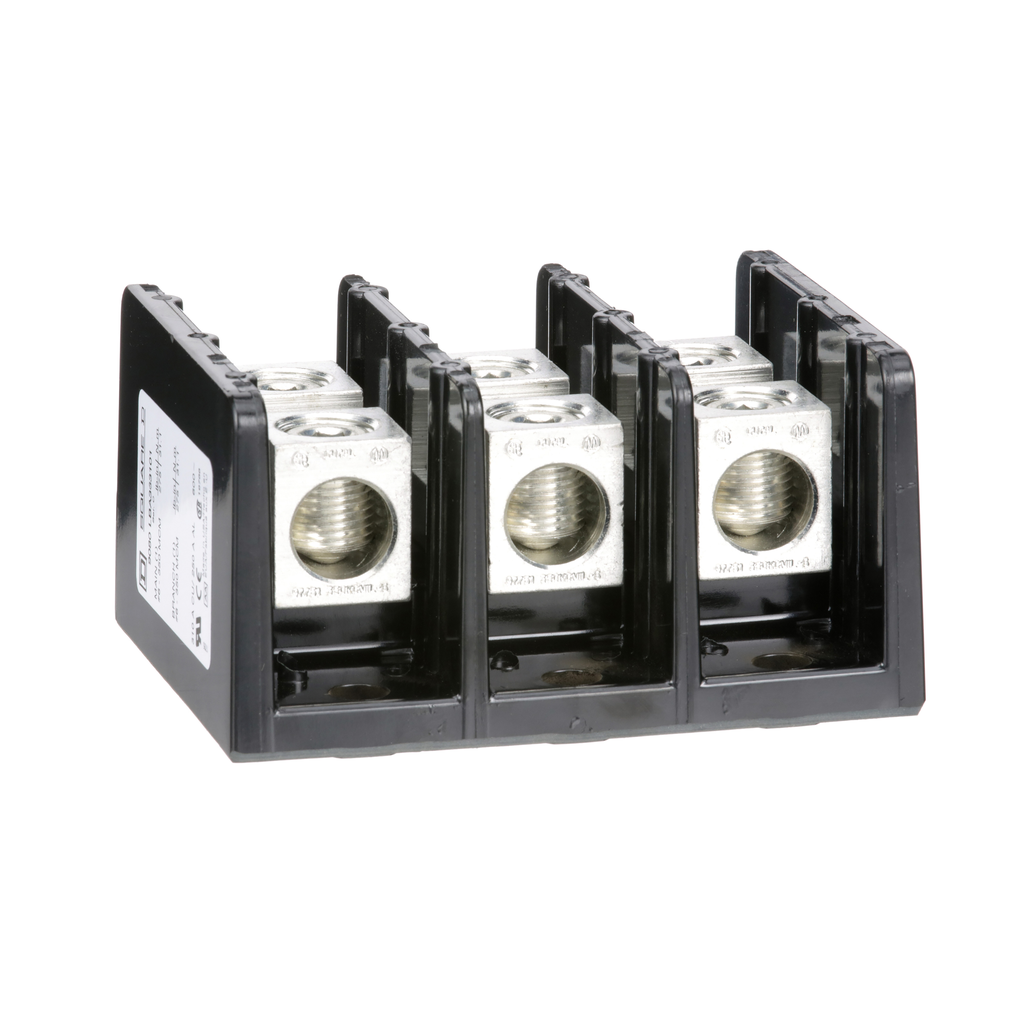

Square D 9080LBA363101 is a power distribution block designed for terminating wires according to NEMA standards. This component features a three-pole setup with a lug opening on both the line side and load side, facilitating efficient power distribution. Each lug is compatible with AWG six to three hundred fifty kcmil copper or aluminum wire. The block is rated for three hundred ten amperes with copper wire and two hundred fifty amperes with aluminum wire, making it suitable for high-performance requirements. The unit operates at a voltage of up to six hundred volts and features aluminum lugs for enhanced conductivity. Constructed from general-purpose phenolic material, this block is recognized by UL and certified by CSA, ensuring reliability in demanding environments.

• Rated for six hundred volts and up to three hundred ten amperes.
• Compatible with AWG six to three hundred fifty kcmil wire.
• UL component recognized and CSA certified for safety.

Product Highlights

This power distribution block is suitable for various applications involving high-current wiring. With its robust construction and compliance with strict standards, it provides a dependable solution in electrical distribution.

Product Information

Standard Information

• Catalog Number: 9080LBA363101
• Manufacturer: Schneider Electric

Technical Specifications

• Material: Phenolic
• Mounting Type: Surface Mount
• Current Rating: 310 Amps (copper), 250 Amps (aluminum)
• Voltage Rating: 600 Volts
• Conductor Size: 6 AWG - 350 kcmil
• Number of Poles: 3
• Country of Origin: USA
• Warranty Length: 18 months
