Square D 9080LBA362101 Power Distribution Block 175 Amp 600 Volt

Product Description

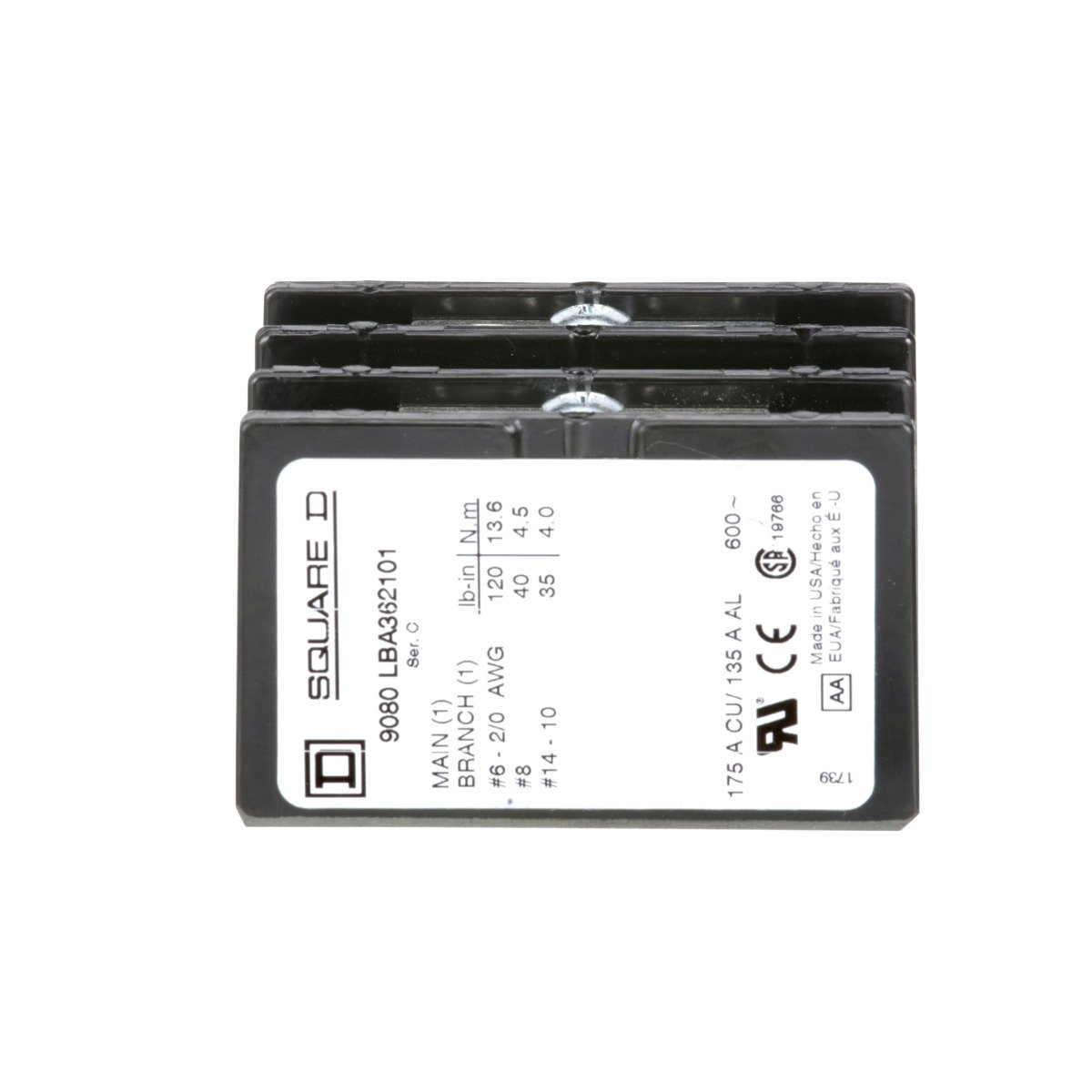

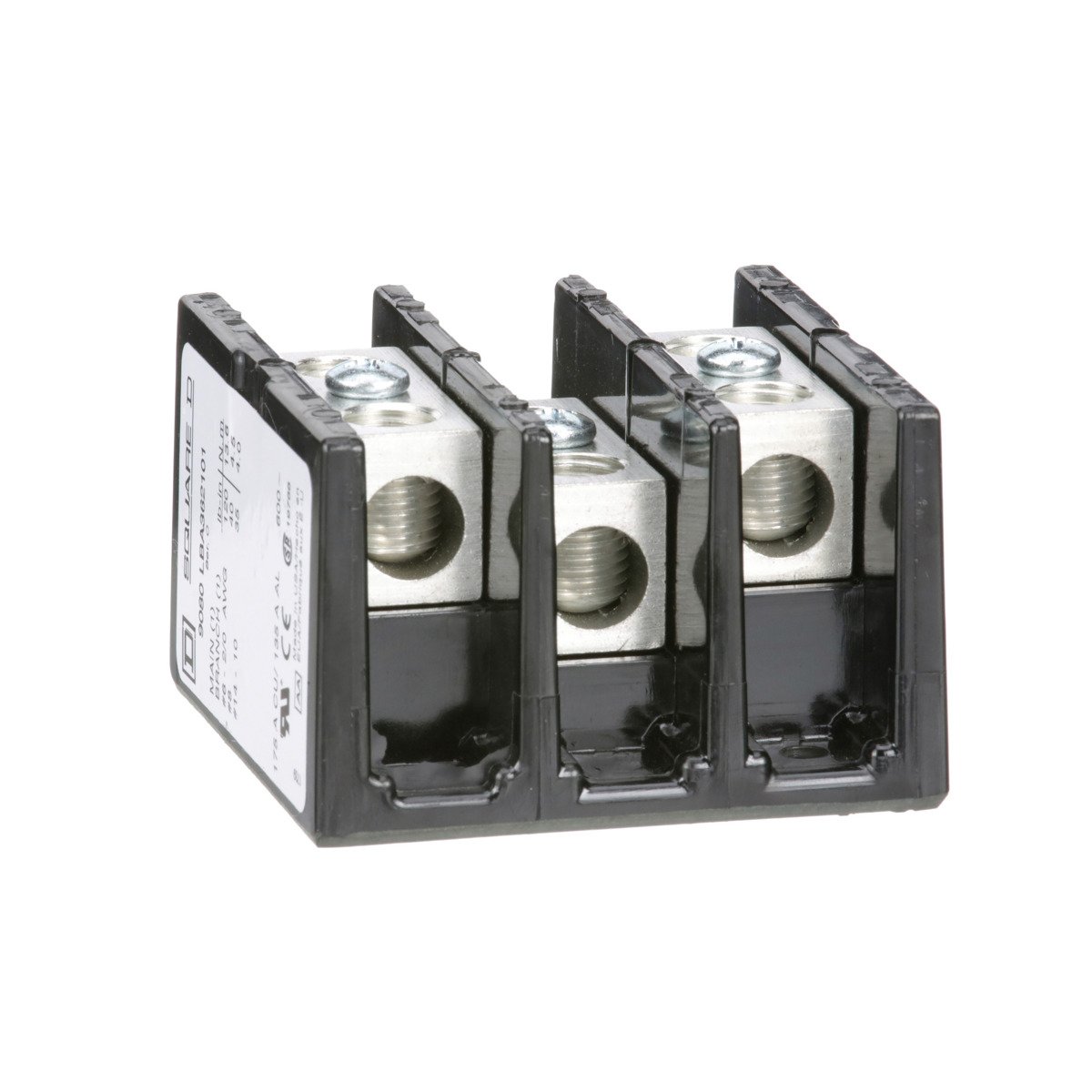

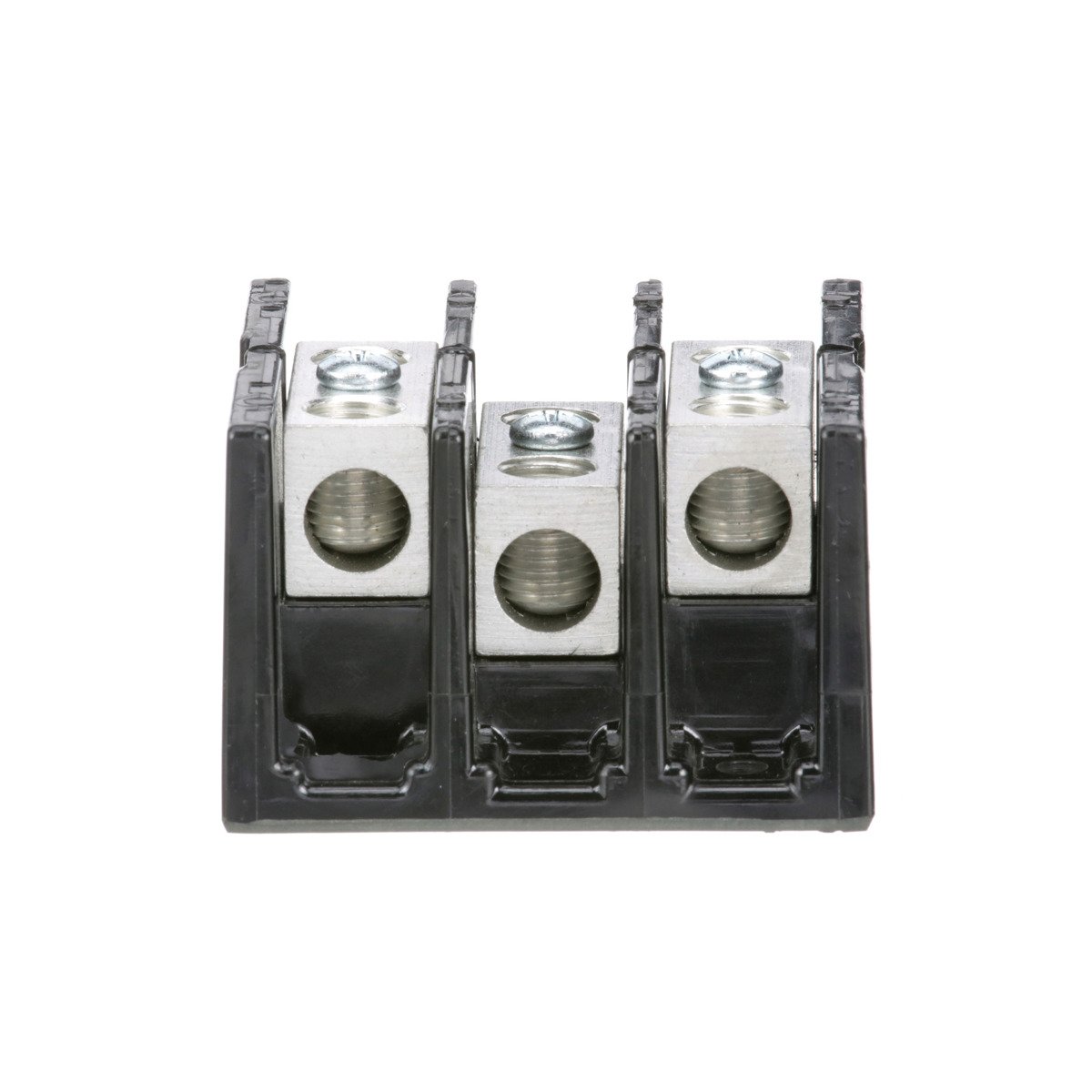

Square D 9080LBA362101 is a power distribution block designed for electrical wire termination. This model supports both copper and aluminum connections. It includes three poles and is compatible with NEMA standards. The block has a line side lug rated for one or two AWG fourteen to two aught wires. The load side lug accommodates one AWG fourteen to two aught wire. Each lug is composed of aluminum, ensuring reliability and efficiency. This distribution block is recognized by UL and certified by CSA, making it a trusted choice for various applications.

• Rated for 175 amperes with copper wire and 135 amperes with aluminum wire.
• Housing made from durable phenolic material.
• Designed for surface mounting.

Product Highlights

Ideal for efficient wire management in electrical installations.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: 9080LBA362101

Technical Specifications

• Voltage: 600 Volt
• Current Ratings: 175 Amp for copper, 135 Amp for aluminum
• Material: Phenolic housing
• Depth: 1.78 inches
• Width: 1.94 inches
• Height: 2.88 inches
• Weight: 0.46 lb
• Wire Size: Line #14 to 2/0 AWG; Load #14 to 2/0 AWG
• Country of Origin: USA
• Mounting Type: Surface Mount
