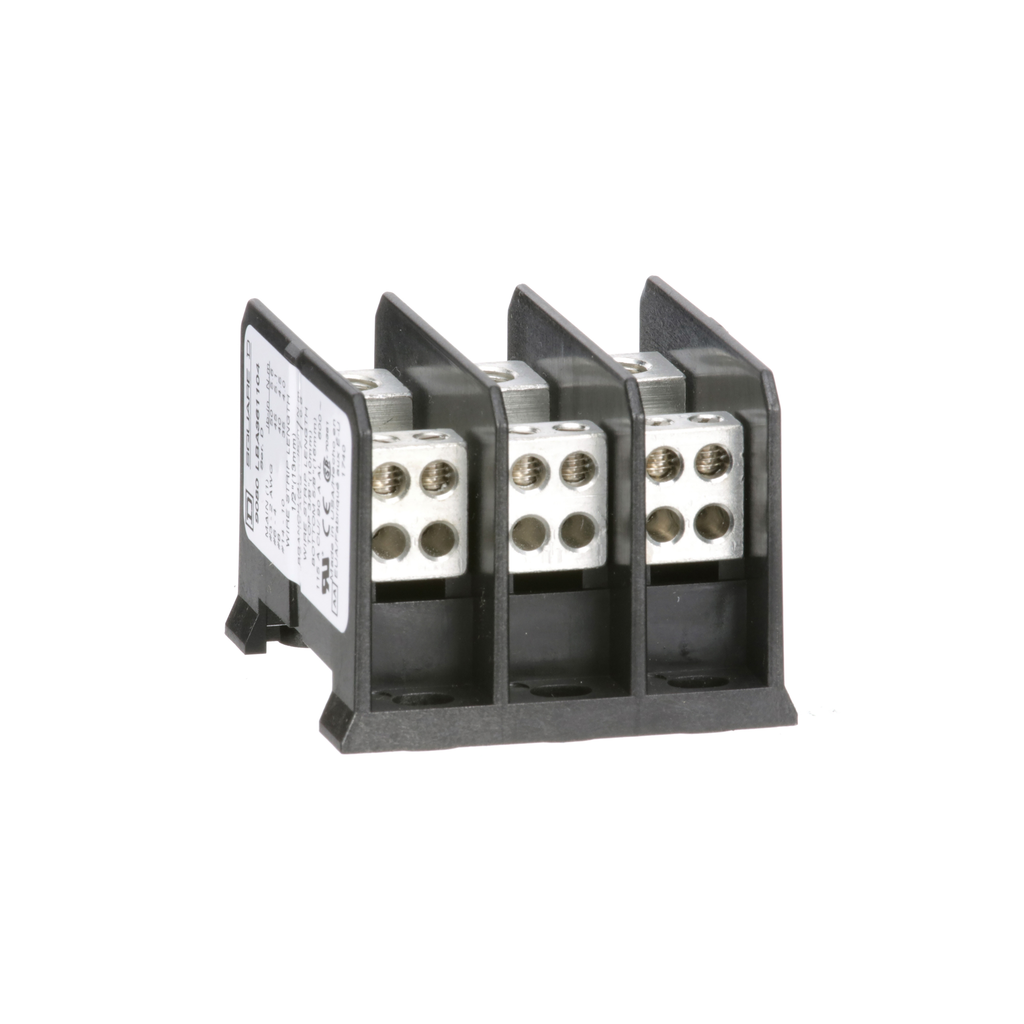

Square D 9080LBA361104 Power Distribution Block 115 Amp 600 Volt

Product Description

The Square D 9080LBA361104 is a power distribution block designed for terminating wires. This block operates under NEMA standards and features a three-pole design. There is one lug opening on the main line side and four openings for the load side. The line side lug accommodates one #14 to #2 copper or aluminum wire. Each load side lug allows for one #18 to #10 copper or aluminum wire. The construction uses aluminum lugs rated for up to 115 amperes with copper wire and 90 amperes with aluminum wire. It has a maximum voltage rating of 600 volts. The housing consists of high-impact thermoplastic material. This product is UL component recognized and CSA certified.

• Designed to NEMA standards
• UL recognized and CSA certified
• Rated for 115A (copper) and 90A (aluminum)

Product Highlights

The power distribution block is suitable for various applications requiring reliable wire terminations in electrical systems.

Product Information

Standard Information

• Catalog Number: 9080LBA361104
• Brand: Square D

Technical Specifications

• Voltage Rating: 600 Volt
• Current Rating: 115 Amp (copper), 90 Amp (aluminum)
• Number of Poles: 3
• Wire Size: Line 1, AWG 14 to AWG 2; Load 4, AWG 18 to AWG 10
• Material: Thermoplastic
• Width: 2.12 inches
• Height: 2.29 inches
• Depth: 1.62 inches
