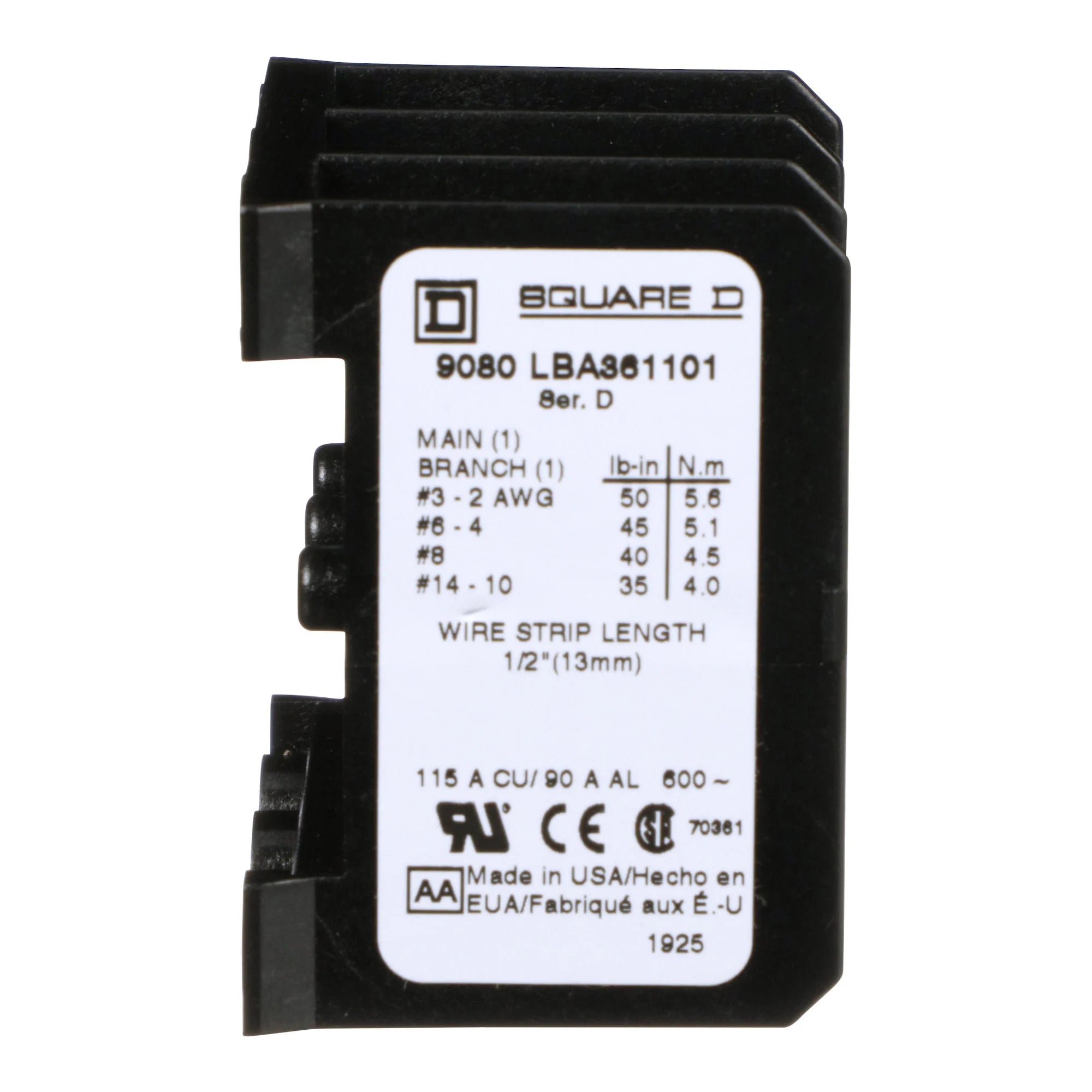

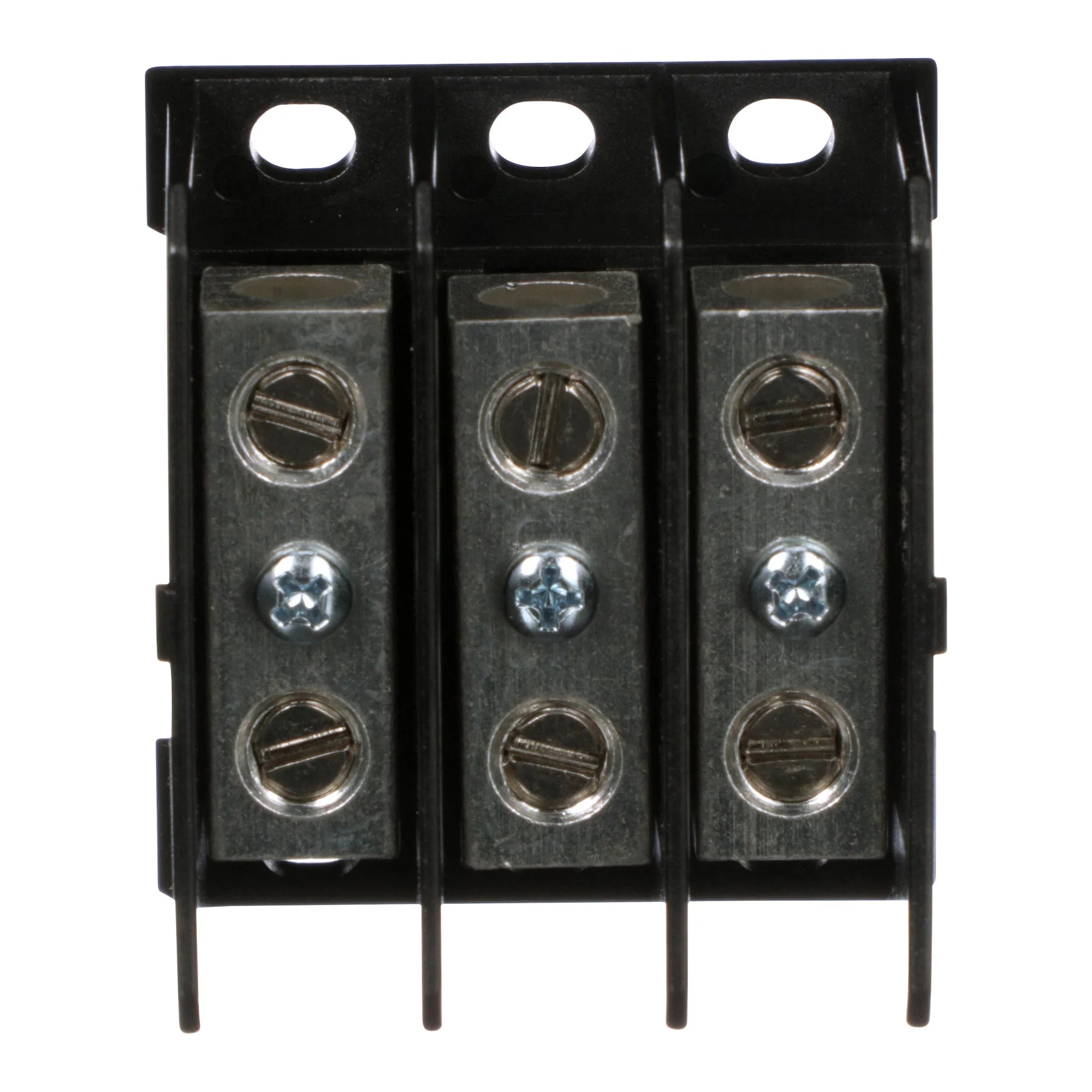

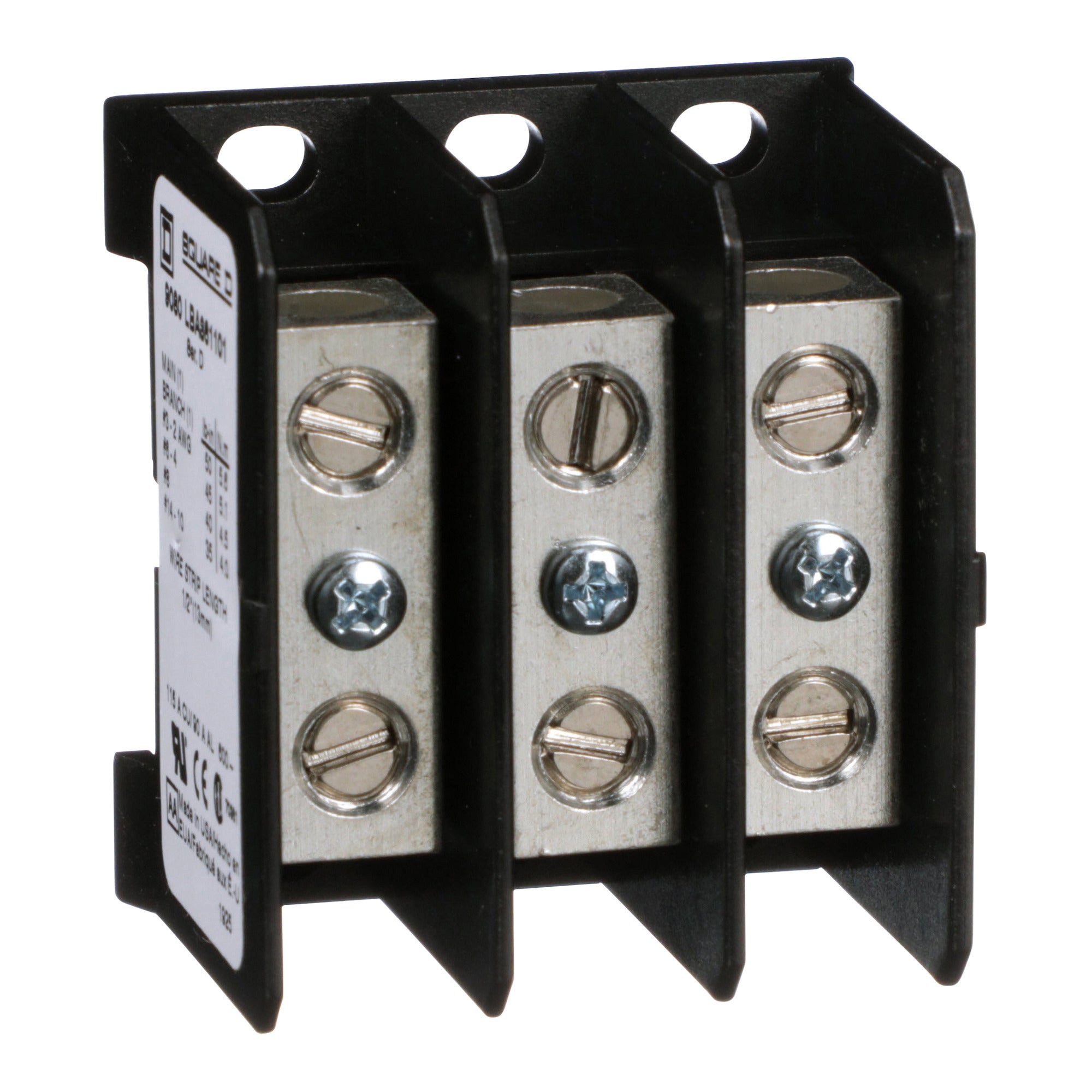

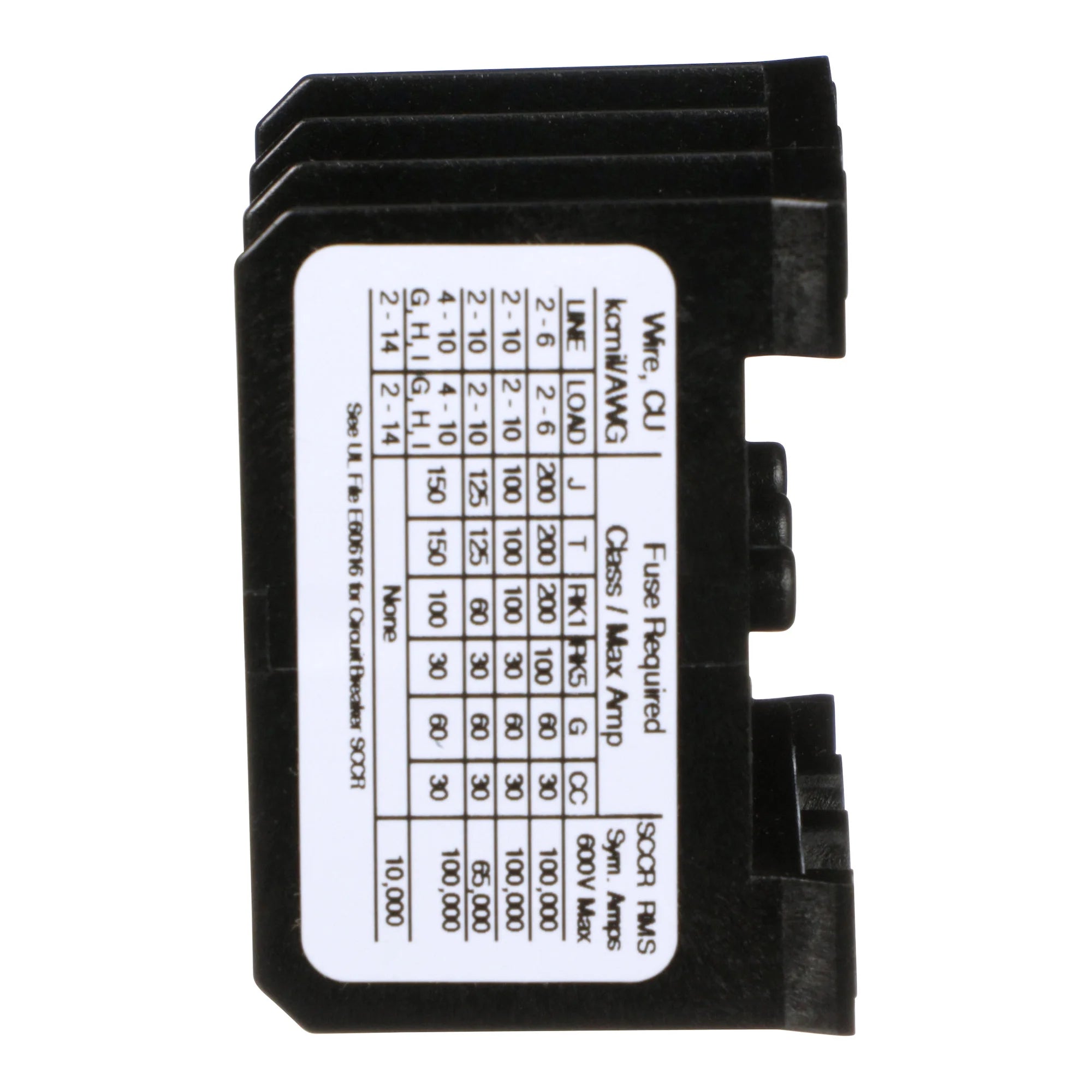

Square D 9080LBA361101 Primary Thermoplastic 3-Pole Miniature Power Distribution Block 115 Amp 600 Volt

Product Description

Square D offers the 9080LBA361101, a three-pole miniature power distribution block suitable for wire termination. This block complies with NEMA standards. It features one lug opening for line side and one for load side connections. The line side lug supports wire sizes from fourteens to twos in either copper or aluminum. The load side lug has the same wire size capability. These aluminum lugs can handle currents of up to one hundred fifteen amperes for copper wire and ninety amperes for aluminum, all rated for six hundred volts. The casing is constructed from high-impact thermoplastic, ensuring durability. This power distribution block is UL recognized and CSA certified.

• Three-pole configuration for versatile connections
• Compatible with wire sizes from 14 AWG to 2 AWG
• Rated for 115 Amperes (copper) and 90 Amperes (aluminum)

Product Highlights

Square D 9080LBA361101 is ideal for electrical wiring in various applications. Its robust design and compliance with safety standards make it suitable for professional use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA361101
• Current Rating: 115 Amperes (Copper), 90 Amperes (Aluminum)
• Voltage Rating: 600 Volts
• Wire Size: 14 AWG to 2 AWG
• Number of Poles: 3
• Material: Thermoplastic
• Mounting Type: Surface Mount
• Warranty Length: 18 months
