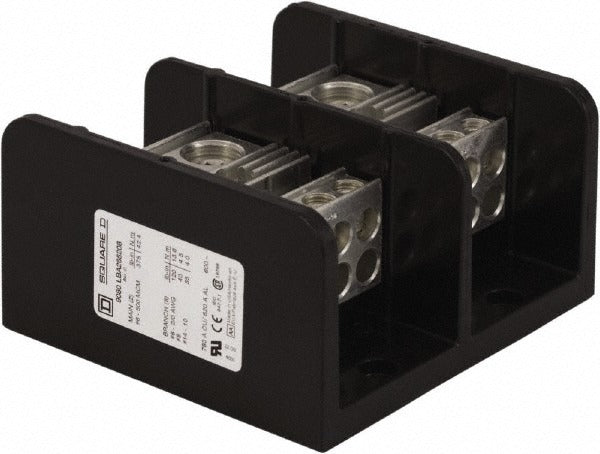

Square D 9080LBA265208 Power Distribution Block 2P 600V

Product Description

The SQUARE D 9080LBA265208 is a 2-pole phenolic power distribution block rated for 620 amps with aluminum conductors and 760 amps with copper conductors at 600 VAC. It provides a centralized point for distributing power from a single source to multiple branch circuits. The phenolic housing offers solid electrical insulation and mechanical durability in panel and enclosure environments. Licensed electricians install this type of block during service panel builds, industrial control cabinet wiring, and commercial distribution projects where organized, code-compliant branch terminations are required.

This distribution block is suited for use in residential service panels, commercial electrical enclosures, and light industrial control cabinets operating at up to 600 VAC. With 2 primary connections and 8 secondary connections, it supports a main-feed-in, multi-branch-out wiring topology. The phenolic body makes it compatible with standard DIN-rail or direct-mount enclosure installations where flame-resistant, non-conductive housing is required.

Key Features

• Rated 620 amps with aluminum conductors and 760 amps with copper conductors
• 2-pole design with 2 primary connections and 8 secondary connections
• 600 VAC voltage rating for broad panel and enclosure compatibility
• Phenolic housing provides flame resistance and electrical insulation
• Meets CE, CSA, RoHS, and UL Listed standards for compliant installations

Compatibility

Designed as an OEM-style replacement or new-install distribution block for electrical enclosures and panelboards requiring a 2-pole, 600 VAC rated block with separate aluminum and copper ampacity ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lockout-tagout the circuit before making any terminations. Torque all conductor connections to the values specified on the block label or in the manufacturer documentation. Verify conductor type (aluminum or copper) matches the rated ampacity being applied before energizing.
