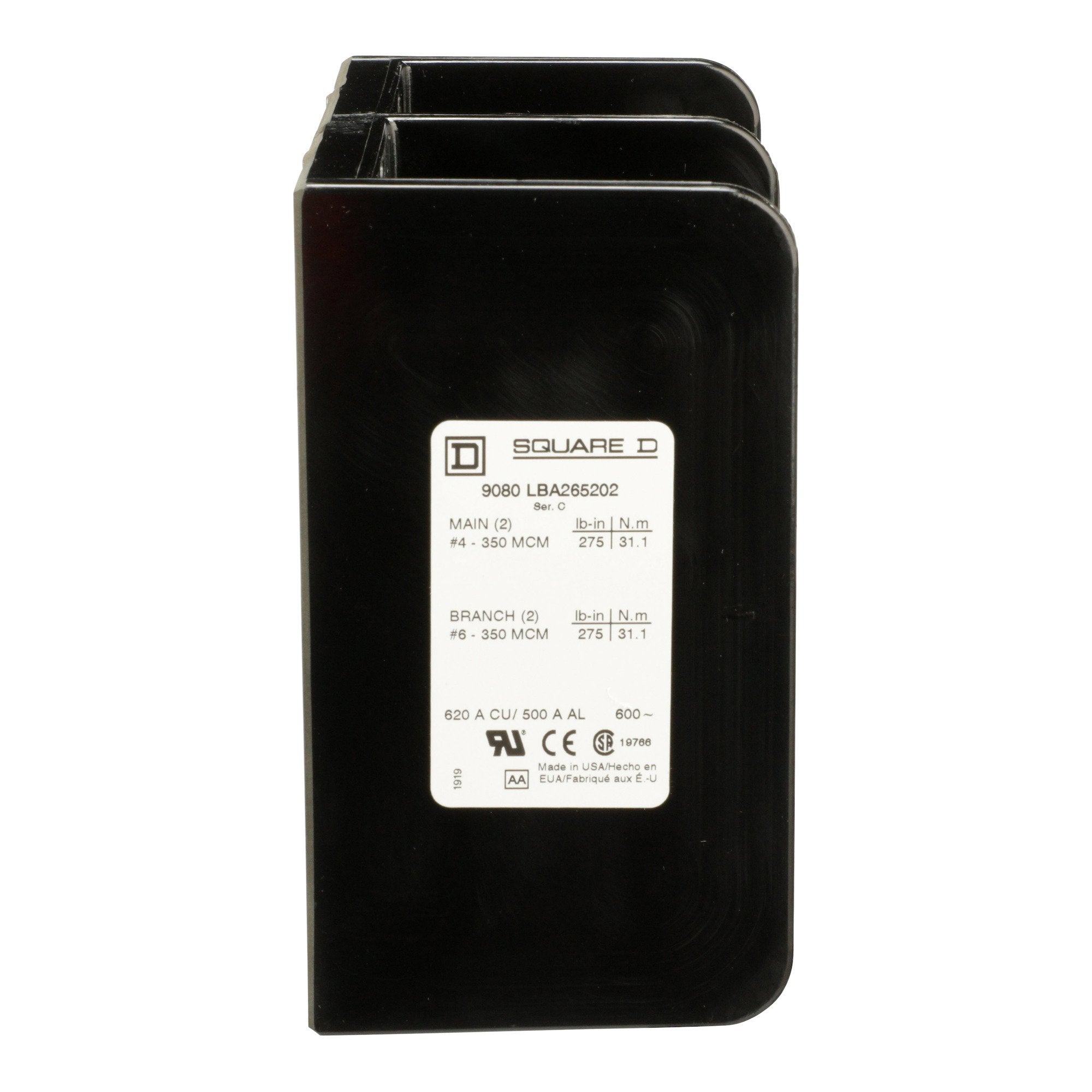

Square D 9080LBA265202 Power Distribution Block 620 Amp 600 Volt Replacement MPN

Product Description

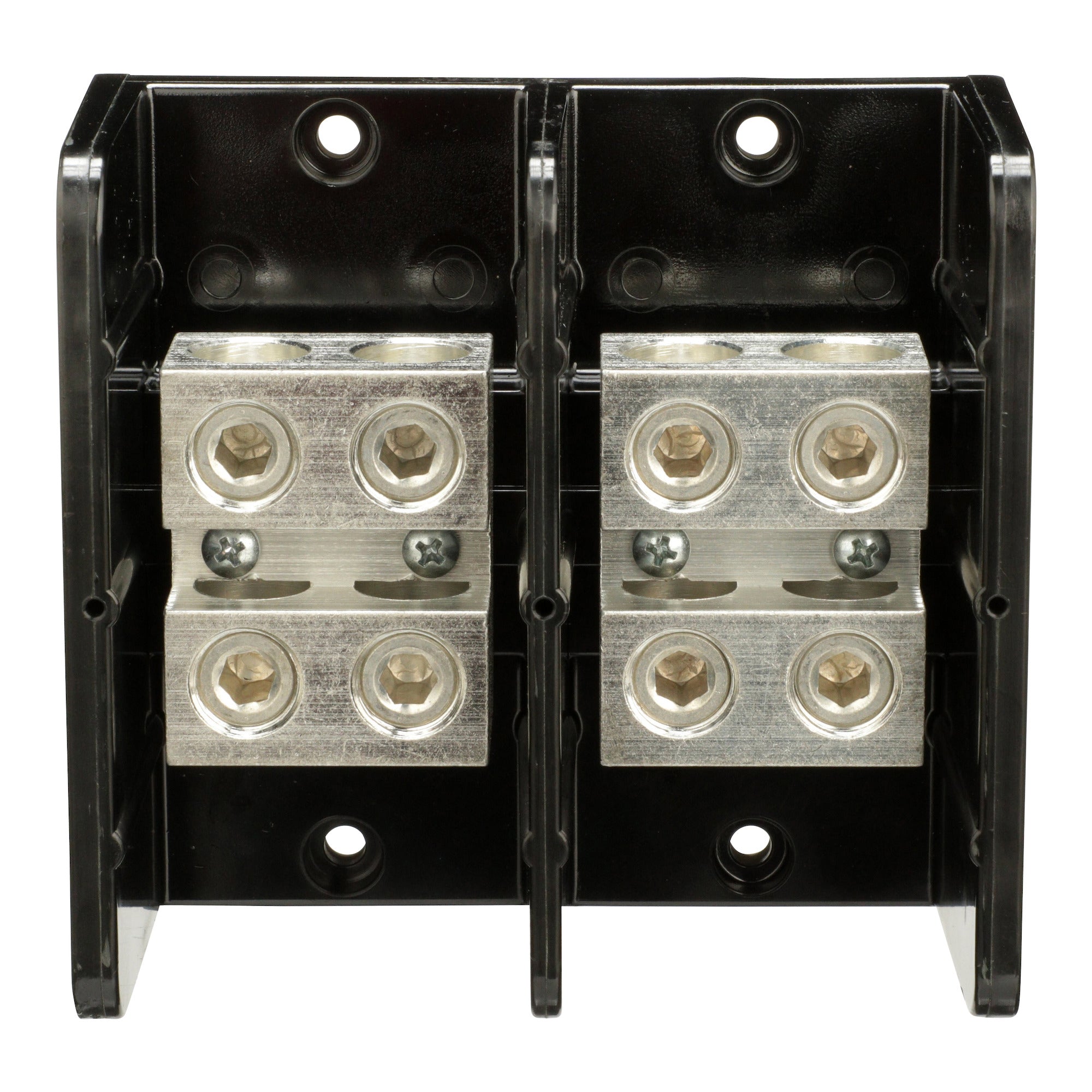

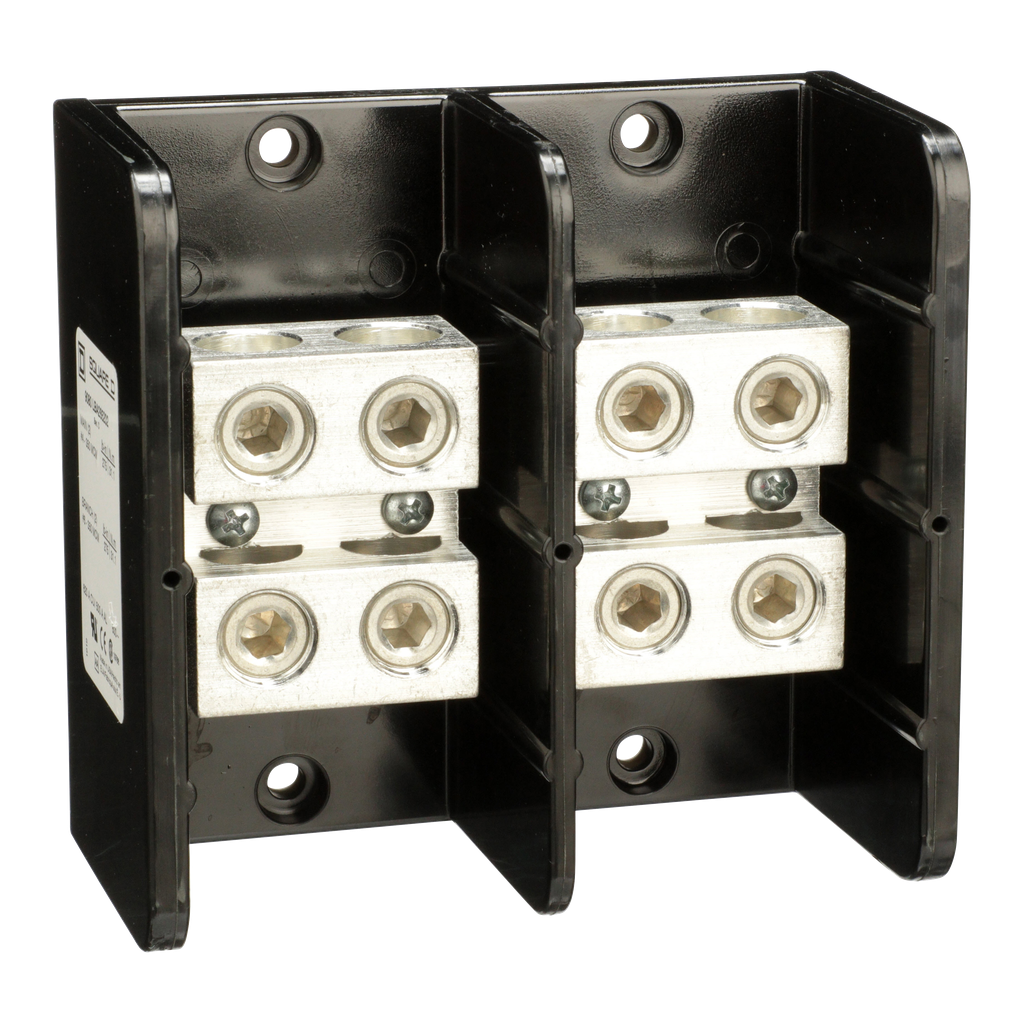

Square D 9080LBA265202 Power Distribution Block is designed for wire termination and complies with NEMA standards. This two-pole block features two lug openings on both the line and load sides. It accommodates copper or aluminum wires ranging in size from 4 AWG to 350 kcmil. The lugs support a rated current of six hundred twenty amperes with copper and five hundred amperes with aluminum, all at a voltage rating of six hundred volts. The robust housing is made from phenolic material, suitable for various electrical applications. This product meets UL component recognition and CSA certification standards.

• Rated for 620 Amps (Copper) and 500 Amps (Aluminum)
• Suitable for wire sizes from 4 AWG to 350 kcmil
• UL Recognized and CSA Certified

Product Highlights

This block is ideal for installations that require strong and reliable connections for power distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA265202
• Current Rating: 620 Amps (Copper), 500 Amps (Aluminum)
• Voltage Rating: 600 Volts
• Wire Size: 4 AWG to 350 kcmil
• Material: Phenolic housing
• Number of Poles: 2
• Mounting Type: Surface mount
• Operating Temperature: -40 to 302 degrees F
• Warranty: 18 months
• Country of Origin: USA
