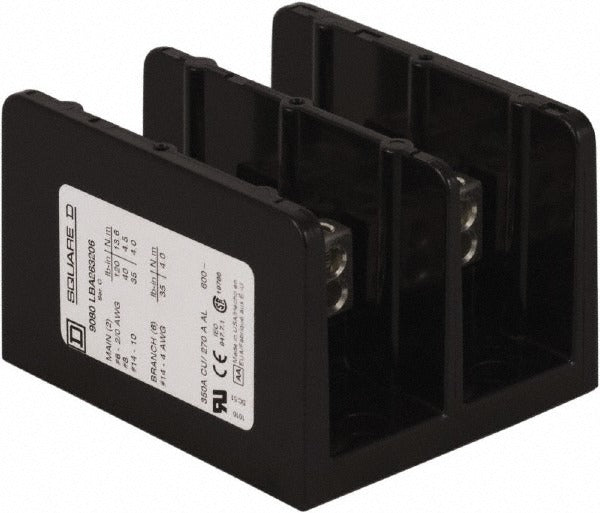

Square D 9080LBA263206 Power Distribution Block 2P 350A

Product Description

The SQUARE D 9080LBA263206 is a two-pole phenolic power distribution block rated for 600 VAC service. It accepts up to 350 amps on copper conductors and 270 amps on aluminum conductors, making it suitable for both conductor types without requiring a separate block. The phenolic housing provides solid dielectric isolation in panel, enclosure, and junction box applications. Electricians use this block to fan out a single incoming feed to multiple branch circuits in a clean, code-compliant termination point. With two primary connections and six secondary connections, it handles common one-in, multiple-out wiring configurations efficiently.

This distribution block fits residential and light commercial electrical panel work, industrial control enclosures, and machine wiring applications where a centralized termination point is needed. It is installed by licensed electricians and industrial maintenance technicians. The two-pole configuration supports both line conductors in a single block assembly, reducing the number of individual components required in the enclosure. Applications include motor control centers, power distribution panels, and sub-feed arrangements where conductor termination density is a priority.

Key Features

• Dual conductor material rating: 350 amps for copper, 270 amps for aluminum
• 600 VAC voltage rating suitable for standard North American distribution systems
• 2 primary connections and 6 secondary connections for one-in, multiple-out wiring
• Phenolic housing provides durable dielectric isolation
• Certified to CE, CSA, RoHS, and UL Listed standards
• Compact form factor at 5.2 x 4.2 x 2.9 inches for enclosure efficiency

Compatibility

Designed as an OEM-style replacement or new-installation distribution block for use in standard electrical enclosures, panel boards, and control cabinets rated for 600 VAC service.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making any terminations. Verify conductor material compatibility with the correct amperage rating — aluminum conductors must be torqued and treated per manufacturer and NEC requirements for aluminum terminations. Do not exceed the rated voltage or amperage for either copper or aluminum conductors.
