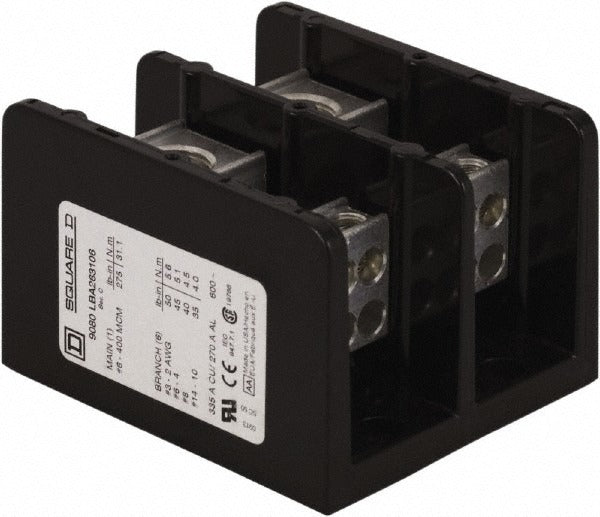

Square D 9080LBA263106 Power Distribution Block 2P 600V

Product Description

The SQUARE D 9080LBA263106 is a two-pole phenolic power distribution block rated for 600 VAC service. It accepts one primary connection and splits the load across six secondary connections, making it a compact solution for distributing power to multiple branch circuits within a panel, enclosure, or junction box. The block is rated at 270 amps for aluminum conductors and 335 amps for copper conductors. The phenolic housing provides solid electrical insulation and mechanical durability in demanding installation environments. Electricians use this block to consolidate wiring runs and reduce the number of lugs required at a single termination point.

This distribution block suits residential, commercial, and light industrial electrical installations where a single feed must supply multiple downstream circuits from one termination point. It is appropriate for use inside load centers, motor control enclosures, disconnect boxes, and custom panel assemblies. The one-in, six-out configuration supports common branch wiring layouts and simplifies conductor management in tight enclosures. With a compact footprint of 5.4 inches in length, 4.4 inches in width, and 3.1 inches in height, it fits in standard enclosure sizes without significant modification.

Key Features

• Dual ampacity rating: 270 amps for aluminum conductors and 335 amps for copper conductors
• 600 VAC voltage rating suitable for standard commercial and industrial feeder circuits
• One primary connection with six secondary connections for efficient load distribution
• Phenolic housing provides electrical insulation and resistance to heat and mechanical stress
• Certified to UL, CSA, CE, and RoHS standards for broad installation compliance
• Compact two-pole design fits standard panel and enclosure footprints

Compatibility

Designed as an OEM-style replacement or new-installation distribution block for 600 VAC electrical enclosures and panel assemblies requiring a two-pole, single-primary to six-secondary conductor arrangement.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making any conductor connections. Verify that conductor material (aluminum or copper) matches the appropriate ampacity rating before terminating. Do not exceed the rated voltage or ampacity for the conductor type being used.
