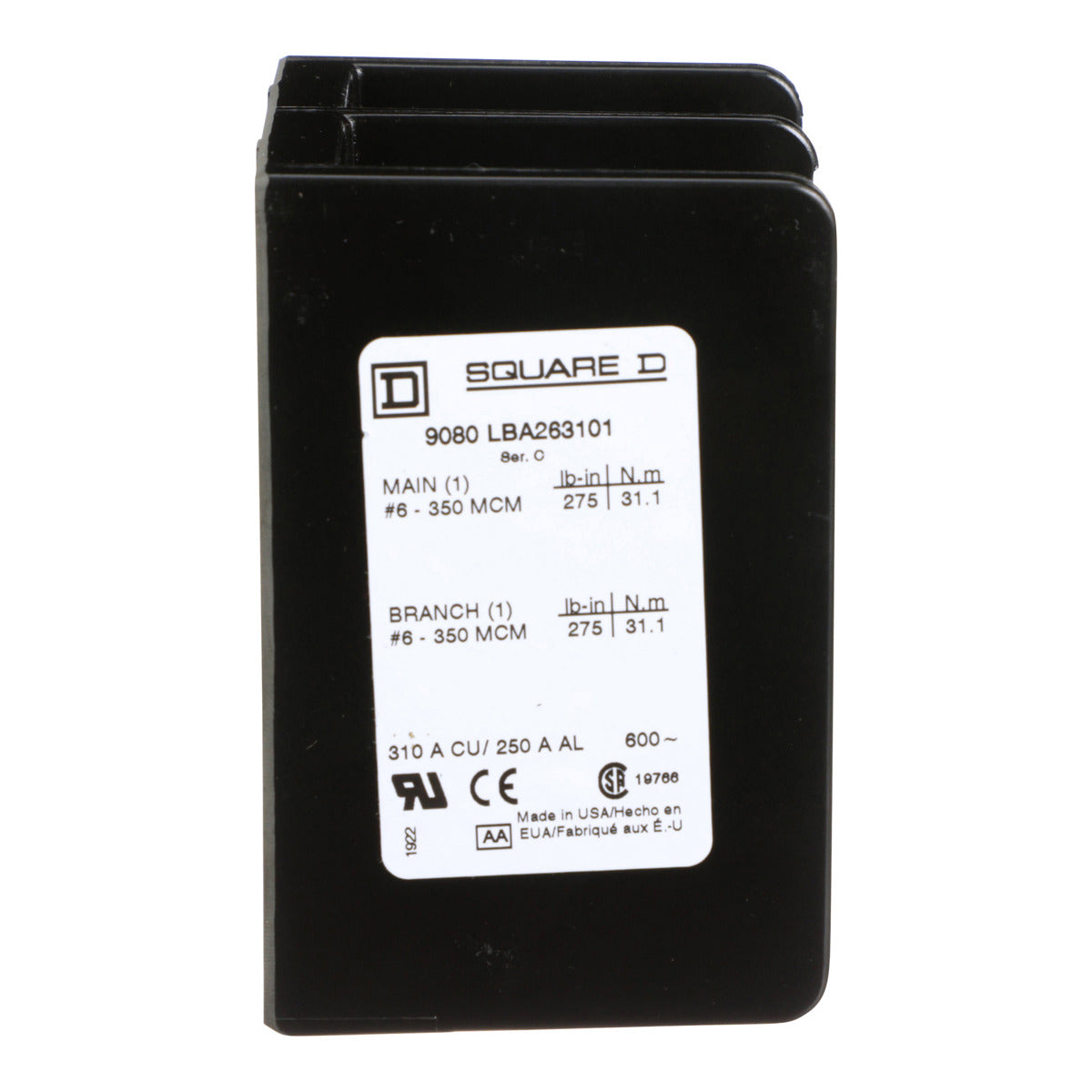

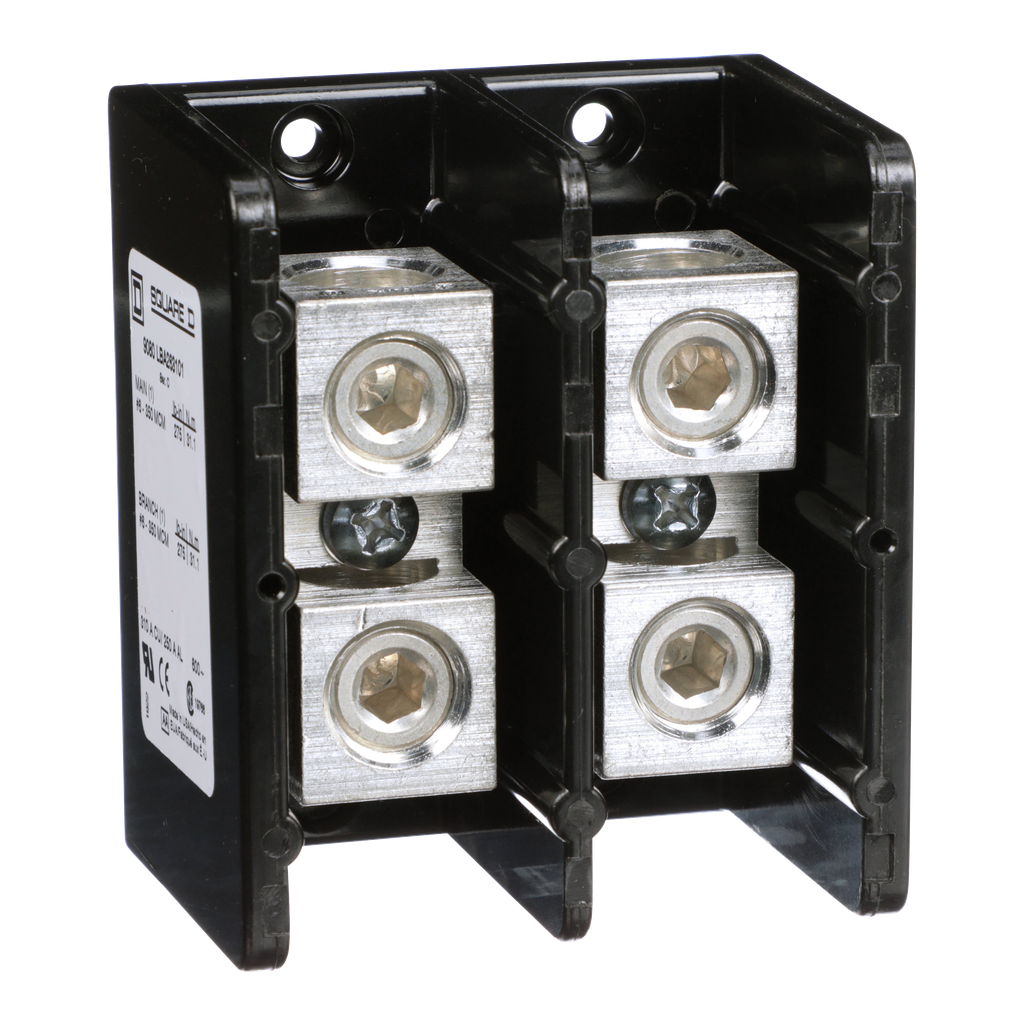

Square D 9080LBA263101 310 Amp 600 Volt 6 AWG to 350 MCM Primary Phenolic 2-Pole Standard Power Distribution Block

Product Description

This Square D 9080LBA263101 power distribution block is designed to securely terminate wires following NEMA standards. It features two lug openings, one for the line side and one for the load side, both rated to accept wire sizes ranging from AWG 6 to 350 kcmil, whether copper or aluminum. The aluminum lugs can carry a current of three hundred ten amperes for copper wires, and two hundred fifty amperes for aluminum wires. The unit is rated for voltages up to six hundred volts. The housing is made of phenolic material and is recognized by UL and CSA.

• UL component recognized and CSA certified
• Designed for wire termination in power distribution applications
• Accepts wire sizes from AWG 6 to 350 kcmil

Product Highlights

This power distribution block is ideal for professionals in electrical systems, ensuring reliable connections for both copper and aluminum wiring.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA263101
• Material: Phenolic
• Mounting Type: Surface Mount
• Current Rating: 310 Amp (Copper), 250 Amp (Aluminum)
• Voltage Rating: 600 Volt
• Wire Size: 6 AWG to 350 kcmil (Copper or Aluminum)
• Number of Poles: 2 Pole
• Country of Origin: China
• Warranty Length: 18 months
