Square D 9080LBA262104 Power Distribution Block 600 Volt 175 Amp

Product Description

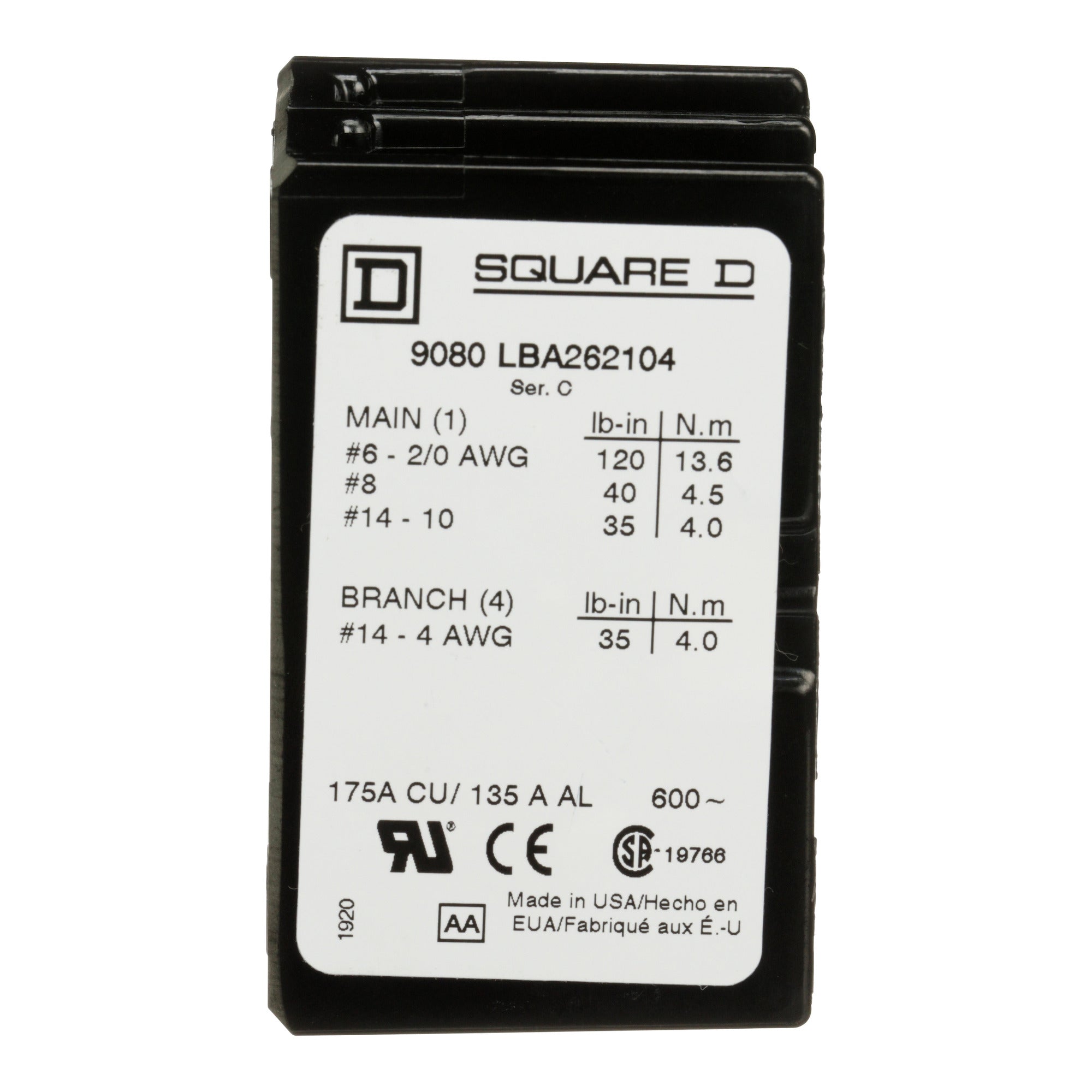

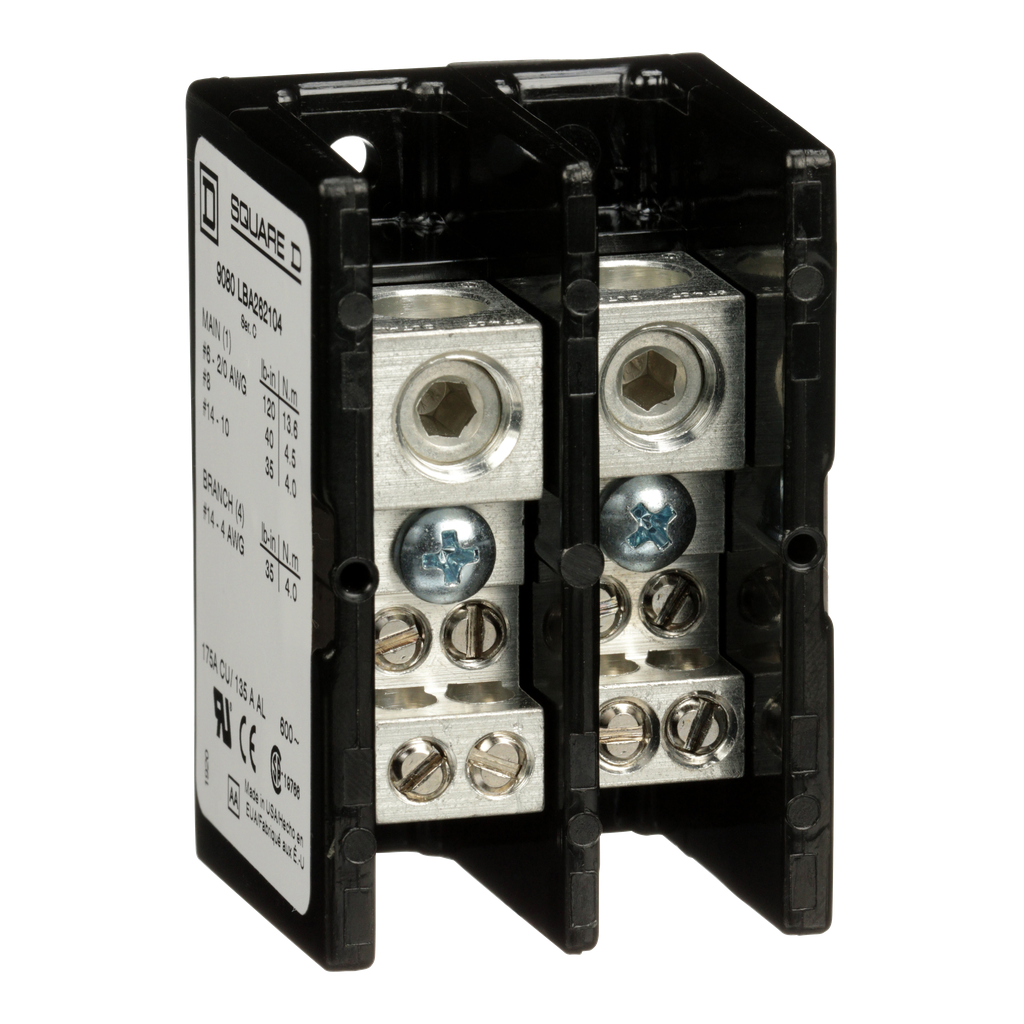

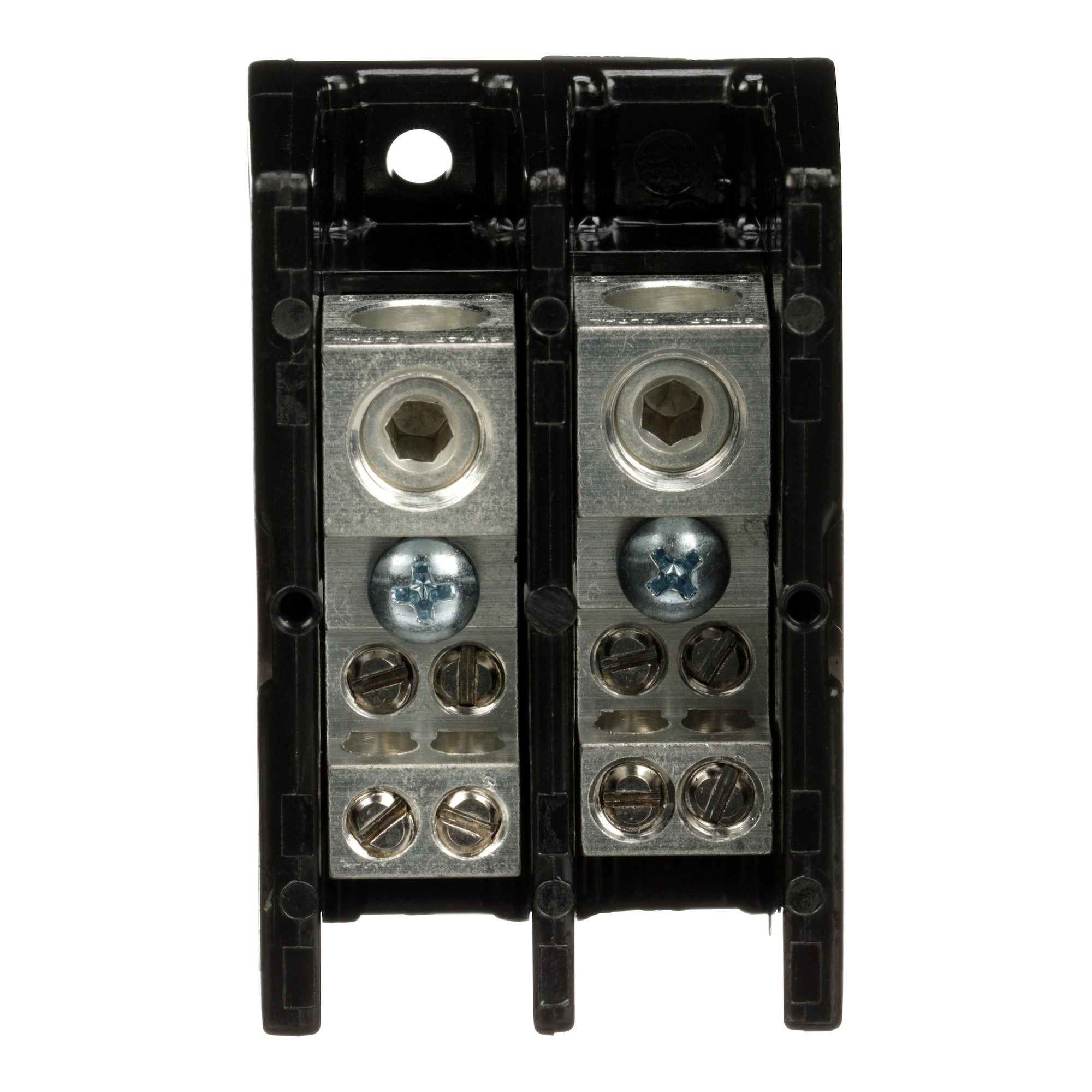

The Square D 9080LBA262104 is a power distribution block designed for wire termination following NEMA standards. This unit features two poles: one lug opening on the line side and four on the load side. It accommodates one #14 to 2/0 copper or aluminum wire on the line side, while the load side accepts one #14 to #4 copper or aluminum wire. Each lug is made from aluminum and is rated for up to 175 amperes with copper wire and 135 amperes with aluminum wire, all while being rated for 600 volts.

• UL component recognized and CSA certified
• Constructed from high impact thermoplastic housing
• Suitable for surface mounting

Product Highlights

This Square D power distribution block is ideal for applications in electrical panels where reliable connections are essential.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA262104
• Voltage Rating: 600 Volts
• Current Rating: 175 Amps Copper, 135 Amps Aluminum
• Wire Size: Line 4 AWG 14 to 2/0; Load 2 AWG 14 to 4
• Material: Phenolic
• Number of Poles: 2
• Housing Material: High impact thermoplastic
• Country of Origin: United States
