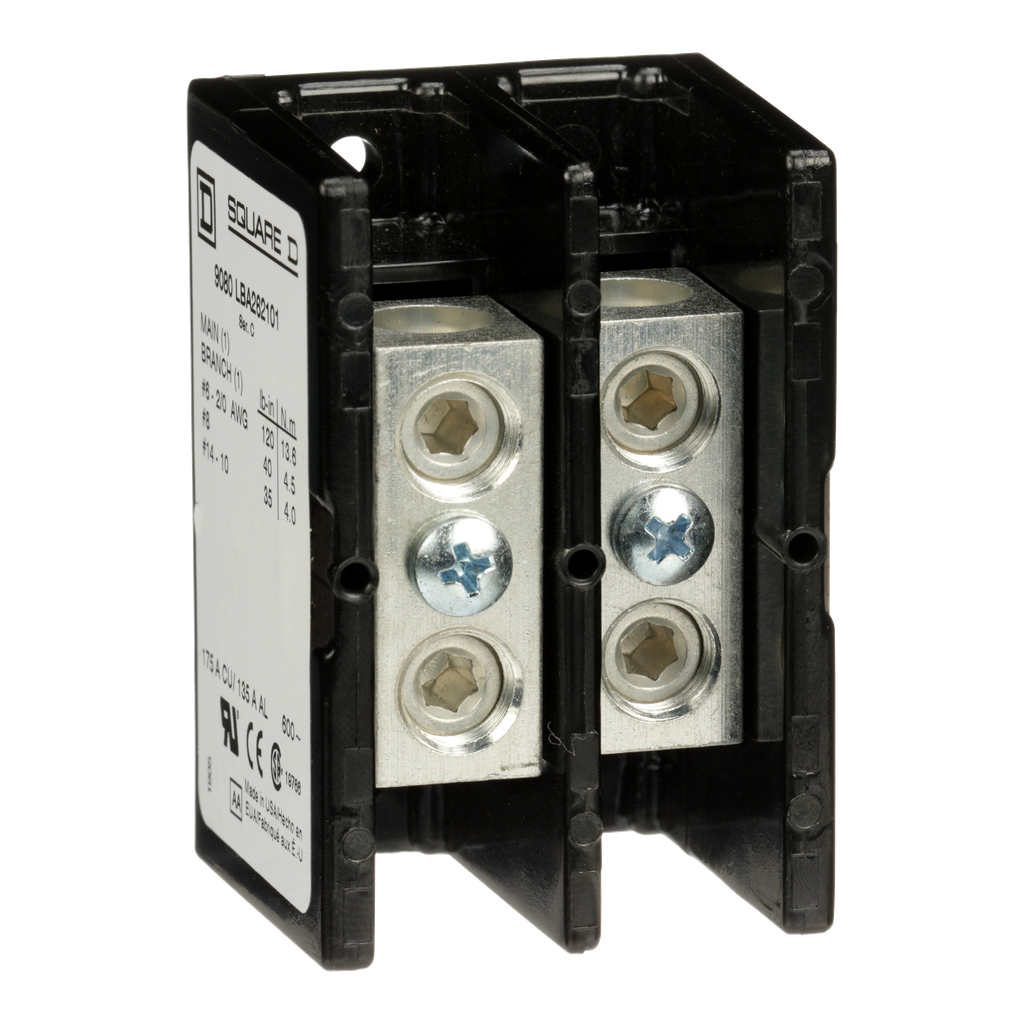

Square D 9080LBA262101 Power Distribution Block 175 Amp 600 Volt

Product Description

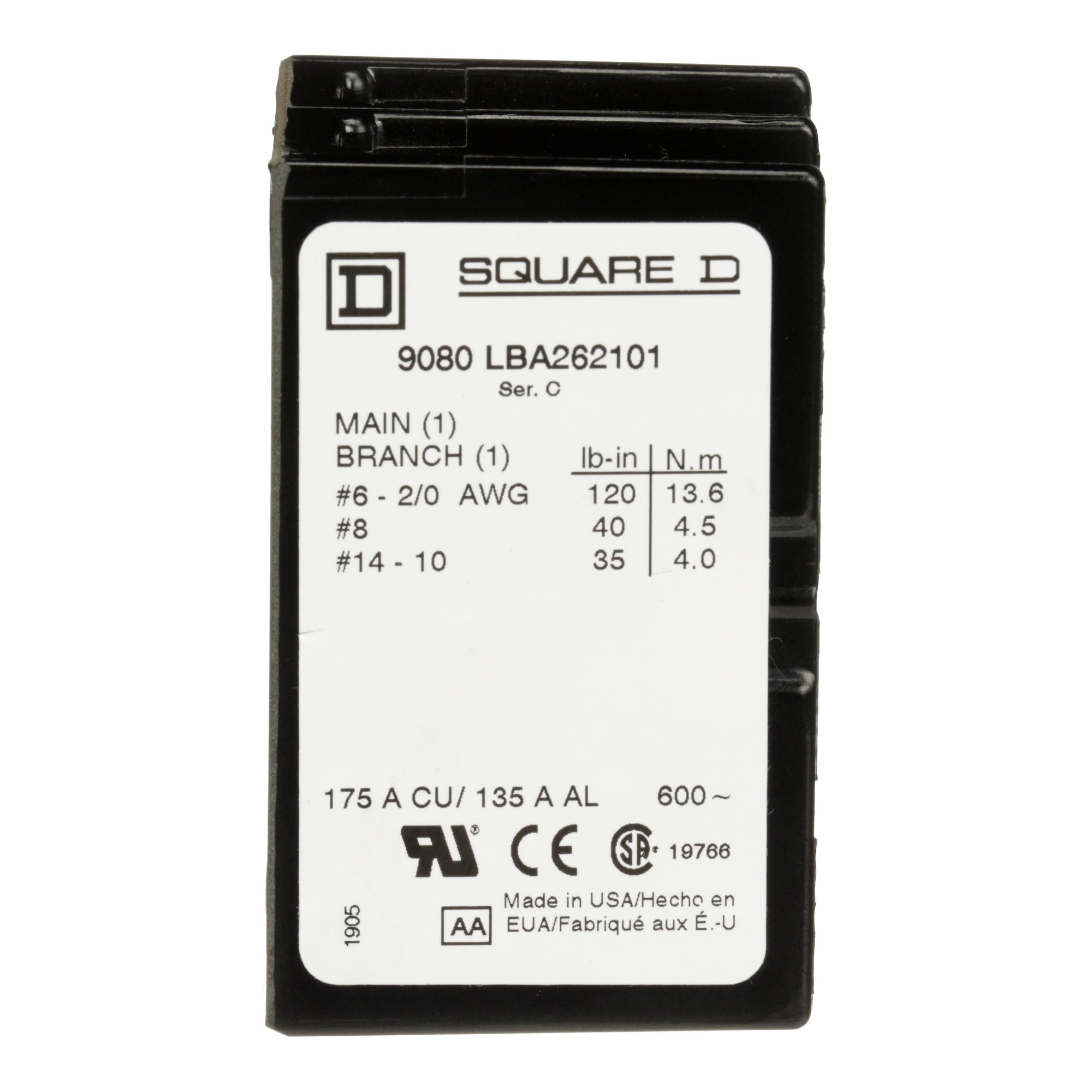

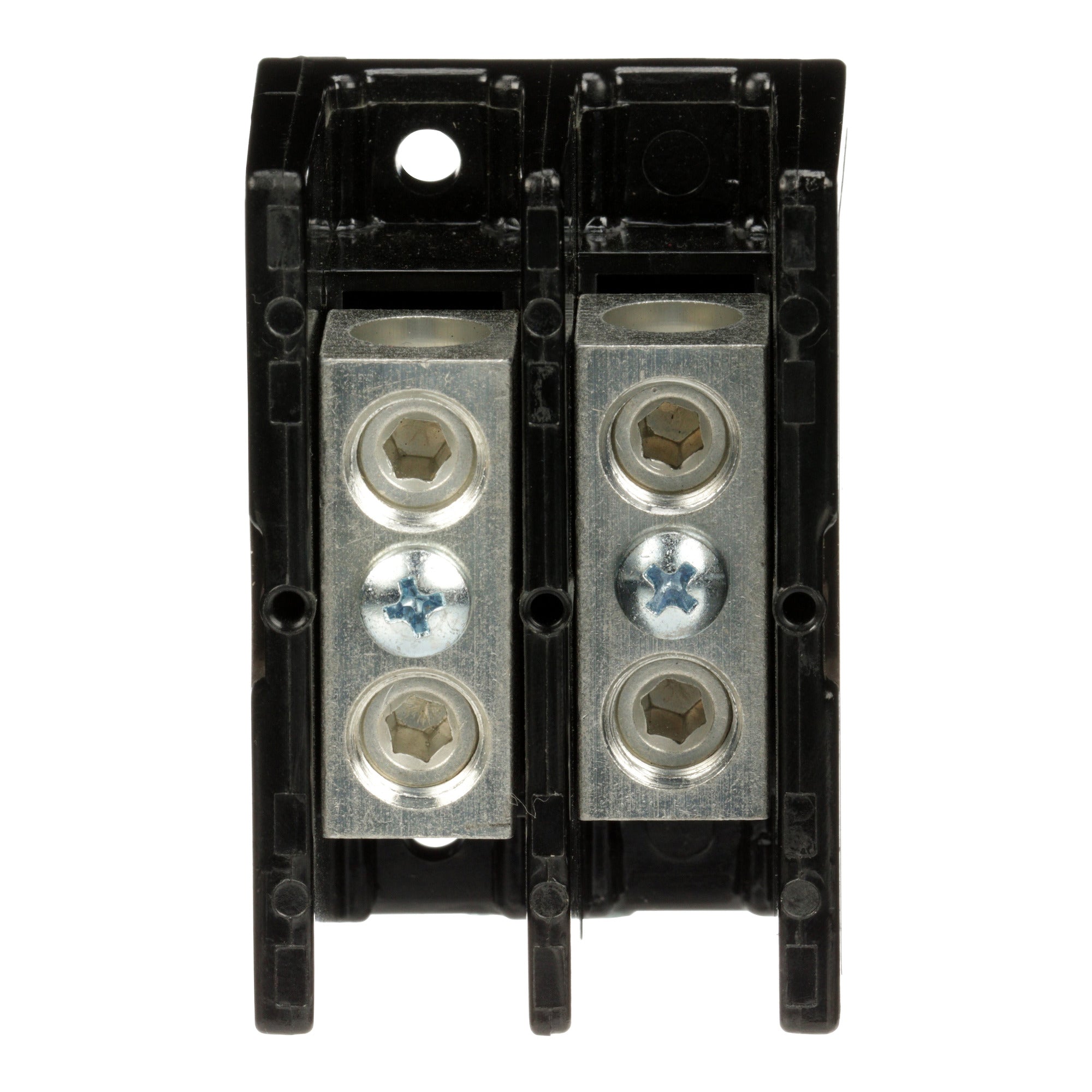

The Square D 9080LBA262101 is a power distribution block designed to meet NEMA standards. It is suitable for terminating wires in various electrical applications. This model features a two-pole configuration with one lug opening on the line side and one on the load side. The line lug can accommodate one or two wires sized from #14 to 2/0 for both copper and aluminum connections. The load lug is designed for a single wire of the same size range. Rated at 175 amperes for copper and 135 amperes for aluminum, this block operates at up to 600 volts.

• Constructed with aluminum lugs for superior conductivity.
• UL recognized and CSA certified for reliable performance.
• Made of phenolic housing for durable usage.

Product Highlights

This power distribution block ensures efficient wire management and safe electrical distribution in various setups.

Product Information

Standard Information

• Catalog Number: 9080LBA262101
• Brand: Square D

Technical Specifications

• Voltage: 600 Volt
• Current Rating: 175 Amp (Copper), 135 Amp (Aluminum)
• Material: Phenolic block
• Wire Size Acceptance: Line 2, AWG 14 to AWG 2/0; Load 1, AWG 14 to AWG 2/0
• Number of Poles: 2
• Mounting Type: Surface Mount
• Country of Origin: USA
• Warranty: 18 months
