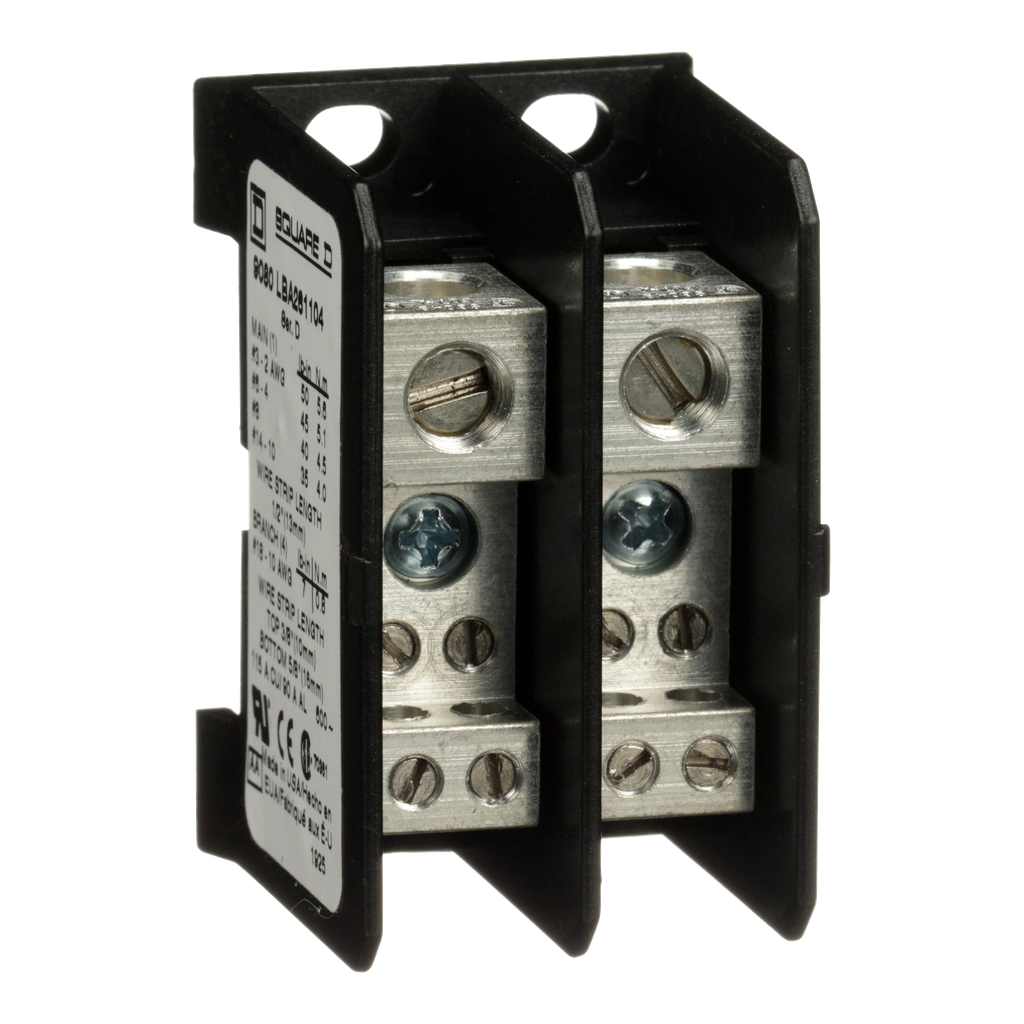

Square D 9080LBA261104 115 Amp 600 Volt 14 to 2 AWG Primary Thermoplastic 2-Pole Miniature Power Distribution Block

Product Description

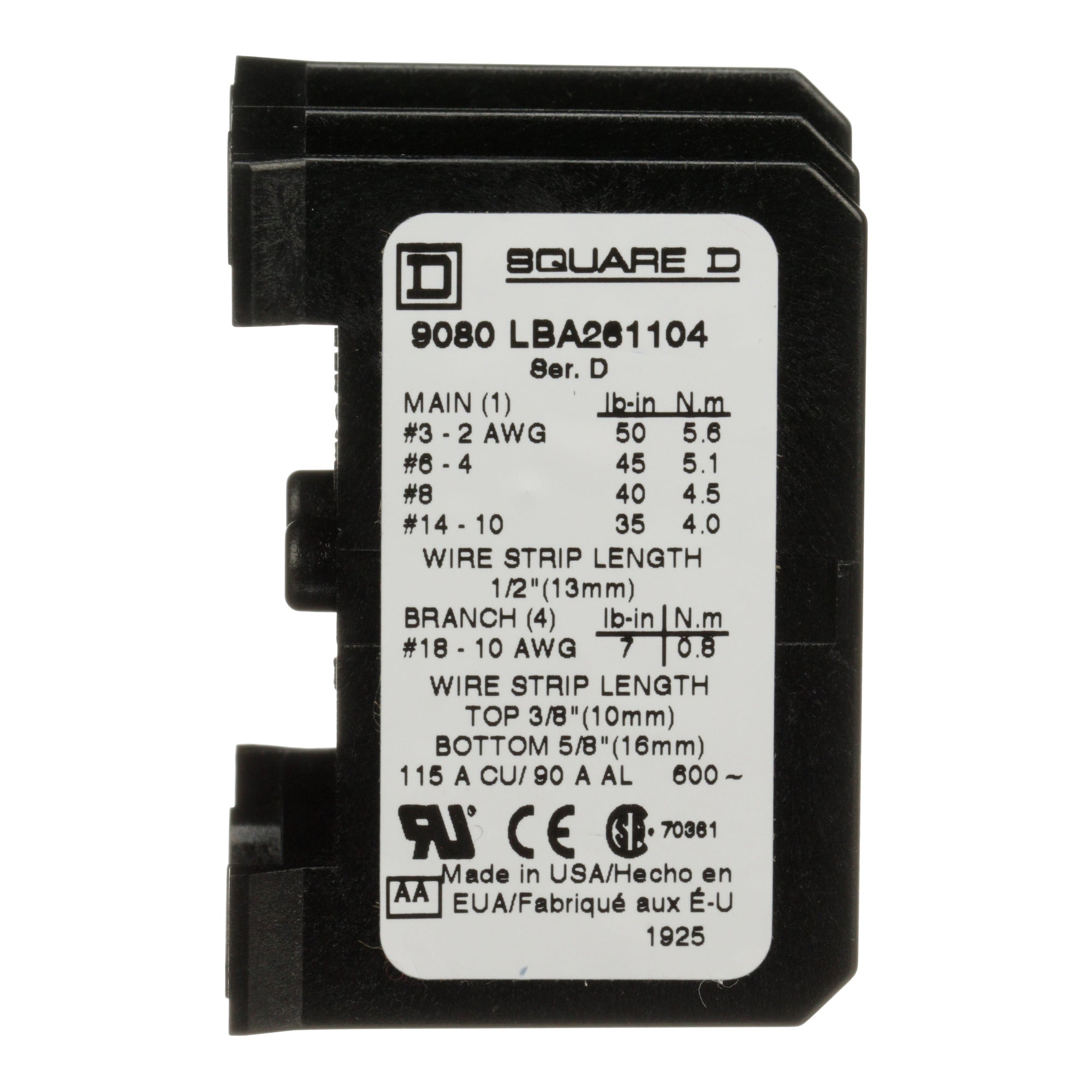

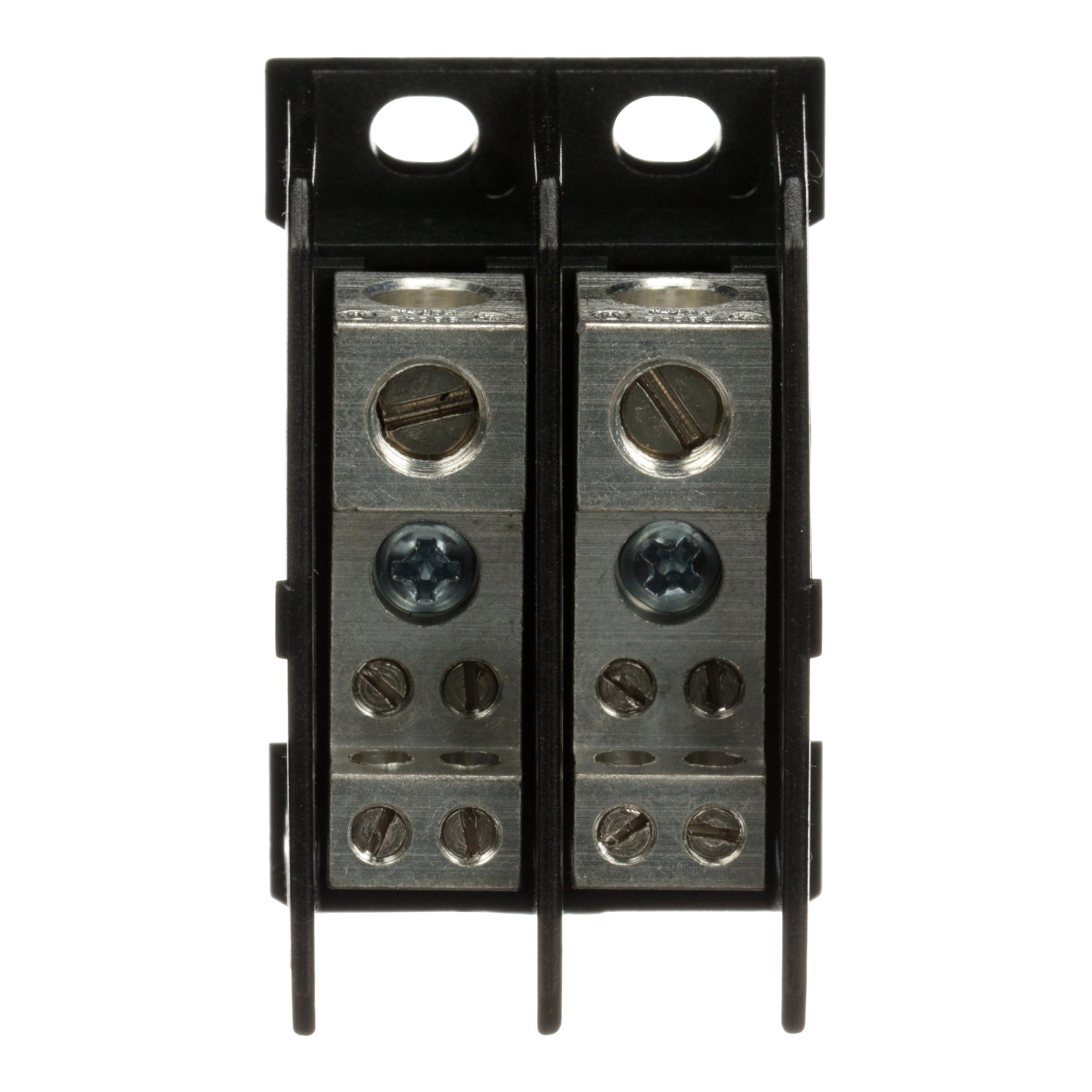

The Square D 9080LBA261104 is a power distribution block designed for wire termination, compliant with NEMA standards. It features a two-pole configuration with one main lug opening and four load side lug openings. The main lug can accommodate a wire size from fourteen to two AWG, whether copper or aluminum. The load lugs support wire sizes from eighteen to ten AWG. This product operates at a current rating of 115 amperes for copper and 90 amperes for aluminum, with a maximum voltage of 600 volts. The block’s materials include high-impact thermoplastic for durability.

• Two-pole design with multiple lug openings
• Current rating of 115 Amperes (Copper) and 90 Amperes (Aluminum)
• UL recognized and CSA certified for safety

Product Highlights

Ideal for various power distribution applications, especially in electrical installations, this power block ensures reliable connectivity and compliance with safety standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9080LBA261104
• Voltage Rating: 600 Volt
• Current Rating: 115 Amp (Copper), 90 Amp (Aluminum)
• Material: Thermoplastic
• Conductor Size: 14-2 AWG (Line), 18-10 AWG (Load)
• Number of Poles: 2 Pole
• Country of Origin: United States
• Warranty: 18 months
