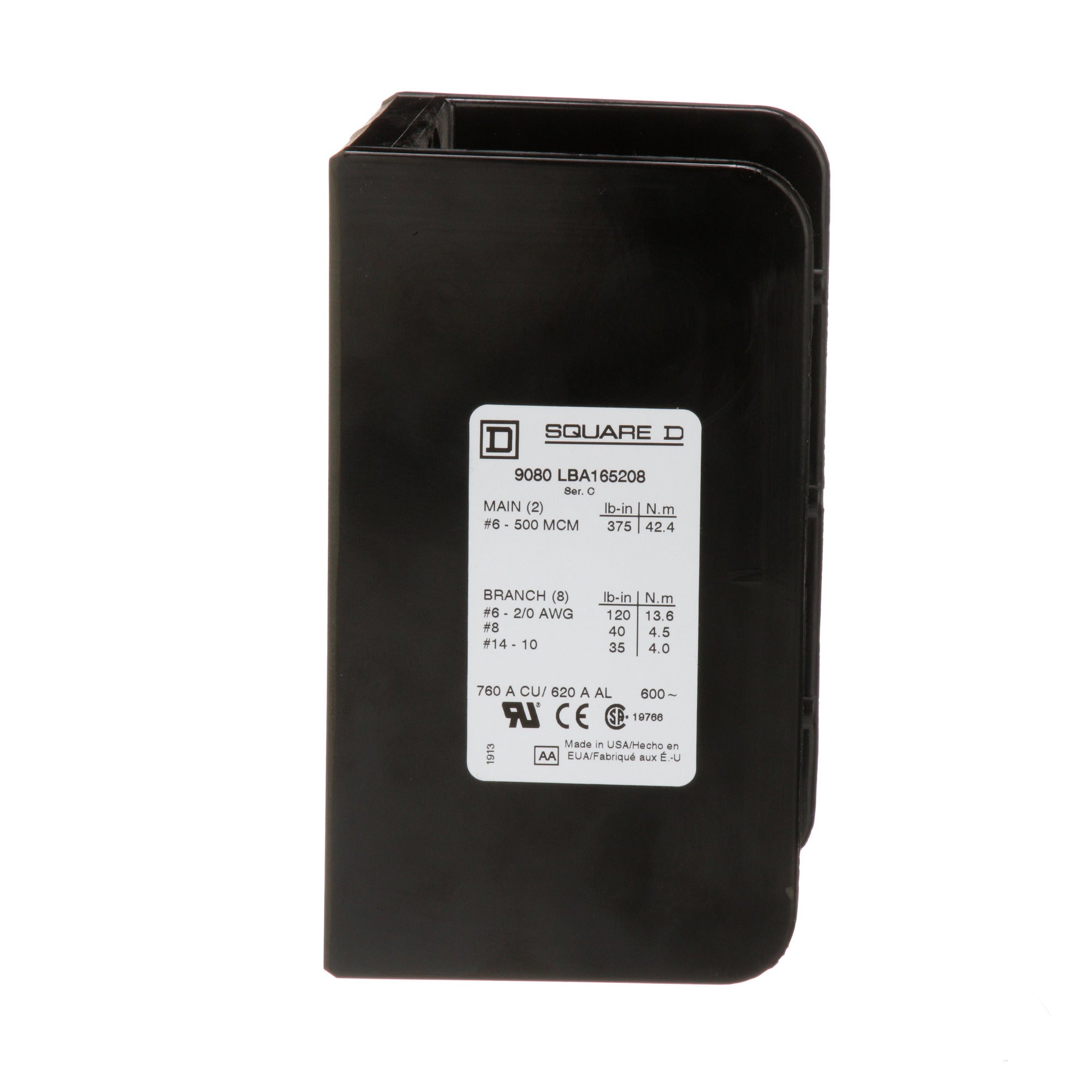

Square D 9080LBA165208 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 1-Pole Standard Power Distribution Block

Product Description

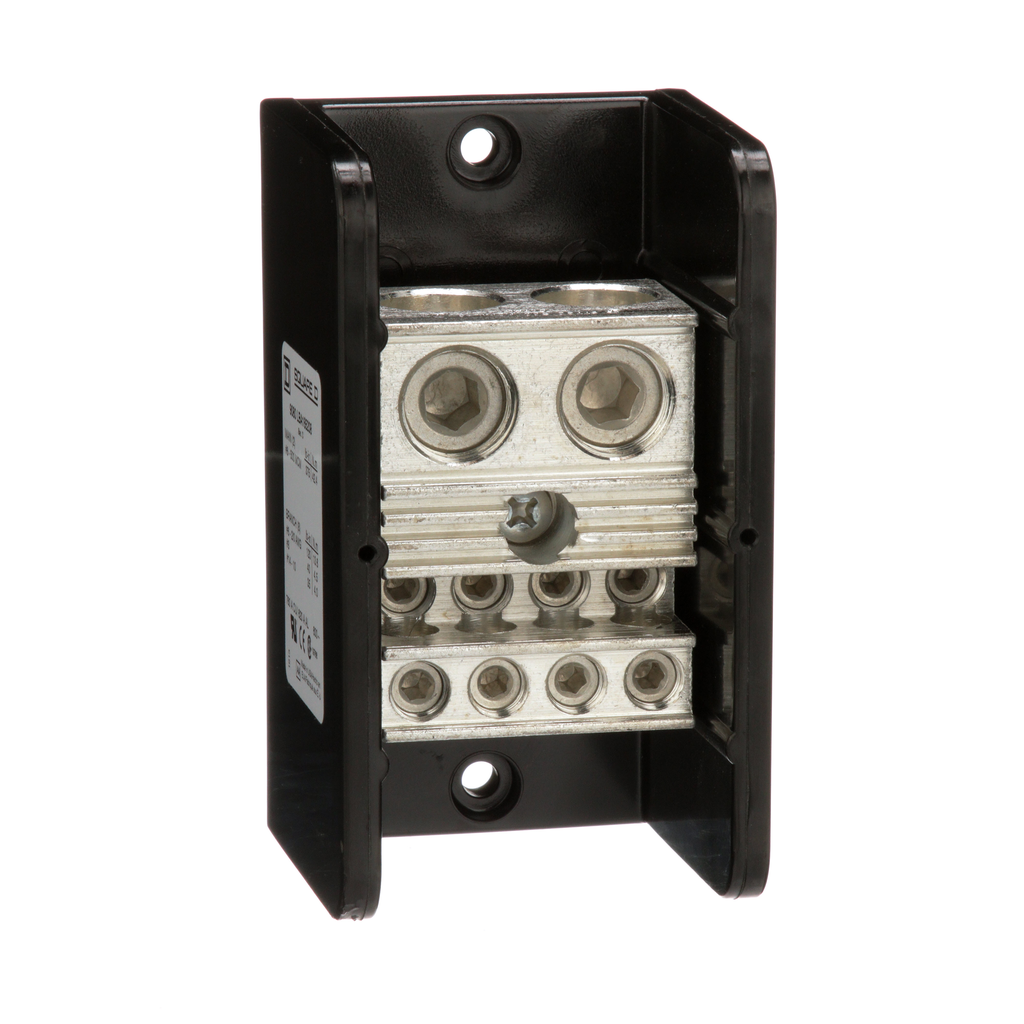

The Square D 9080LBA165208 is a one-pole power distribution block designed to help in wire terminations. It meets NEMA standards for safety and reliability. This block features two lug openings on the line side and eight lug openings on the load side. The line side lug is ready for wires ranging from #6 to 500 kcmil, made from copper or aluminum. The load side lugs accommodate wires from #14 to 2/0, also suitable for copper or aluminum. The block can handle a rated current of 760 amperes for copper wires and 620 amperes for aluminum.

• Rated for 760 amps with copper wire and 620 amps with aluminum wire.
• Suitable for wire sizes from #6 to 500 kcmil on the line side.
• UL component recognized and CSA certified for safe use.

Product Highlights

This power distribution block is ideal for distributing power in various electrical applications. Its robust design ensures reliability and high performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9080LBA165208
• Current Rating: 760 Amperes (Copper), 620 Amperes (Aluminum)
• Voltage Rating: 600 Volts
• Material: Phenolic
• Mounting Type: Surface Mount
• Wire Size (Line): 4 AWG to 500 kcmil, Copper or Aluminum
• Wire Size (Load): 14 AWG to 2/0, Copper or Aluminum
• Number of Poles: 1
• Operating Temperature: -40 to 302 degrees Fahrenheit
