Square D 9080LBA163206 Primary Phenolic Power Distribution Block 350 Amp 600 Volt

Product Description

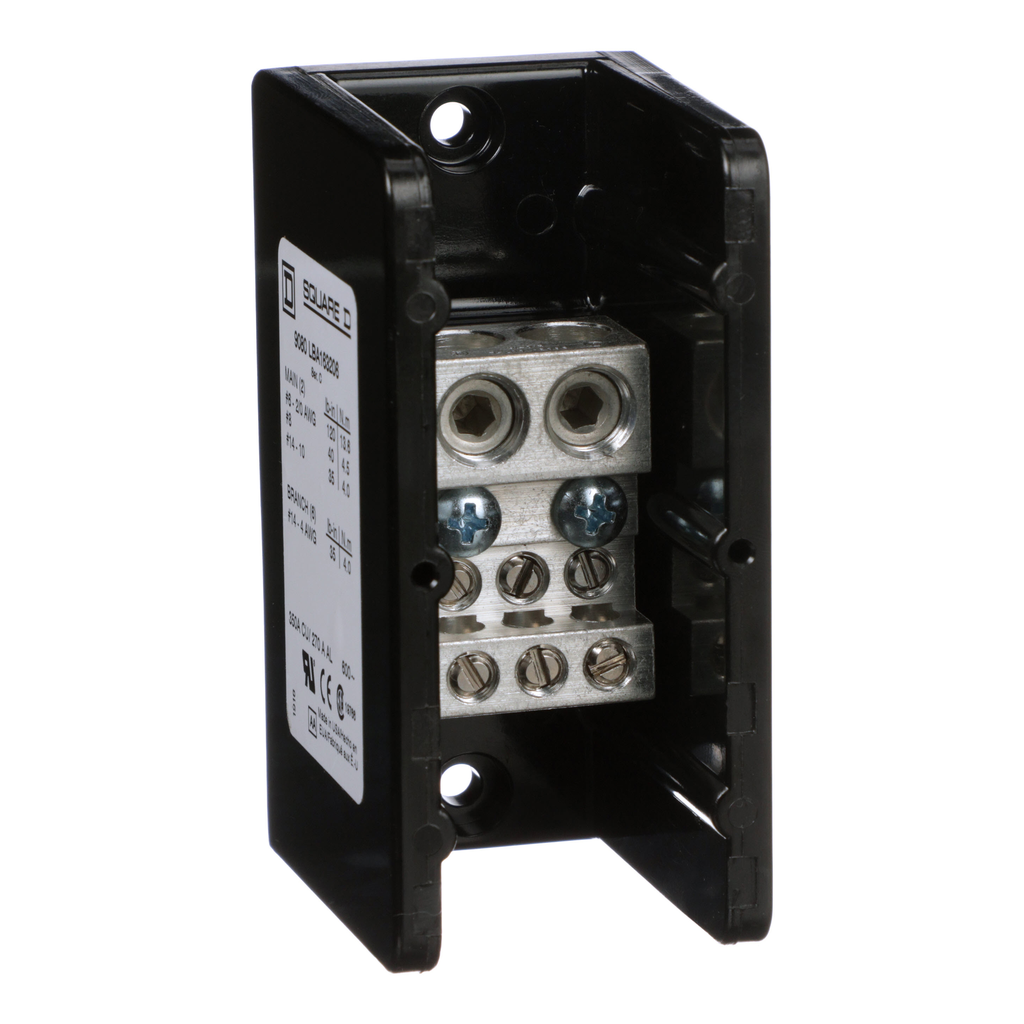

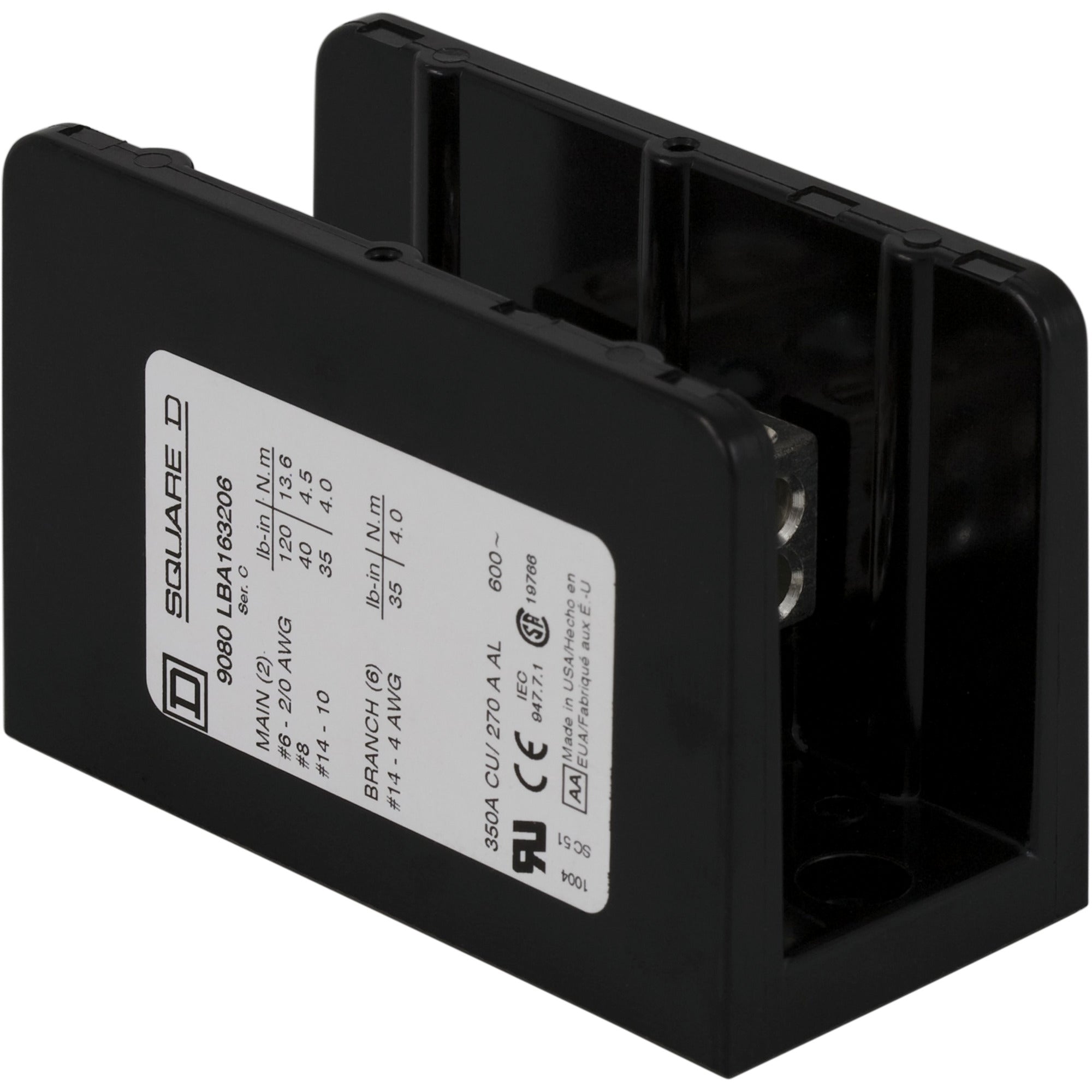

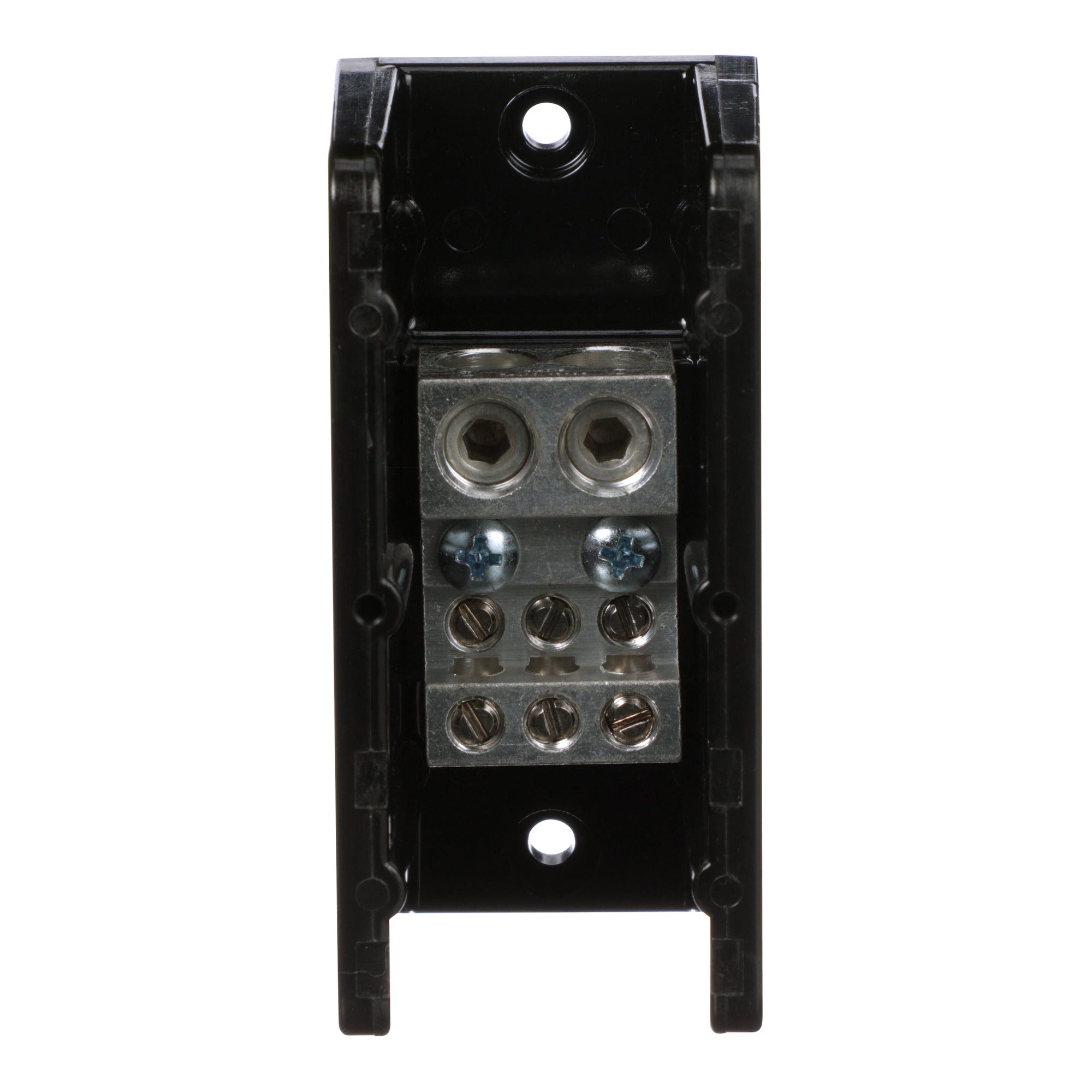

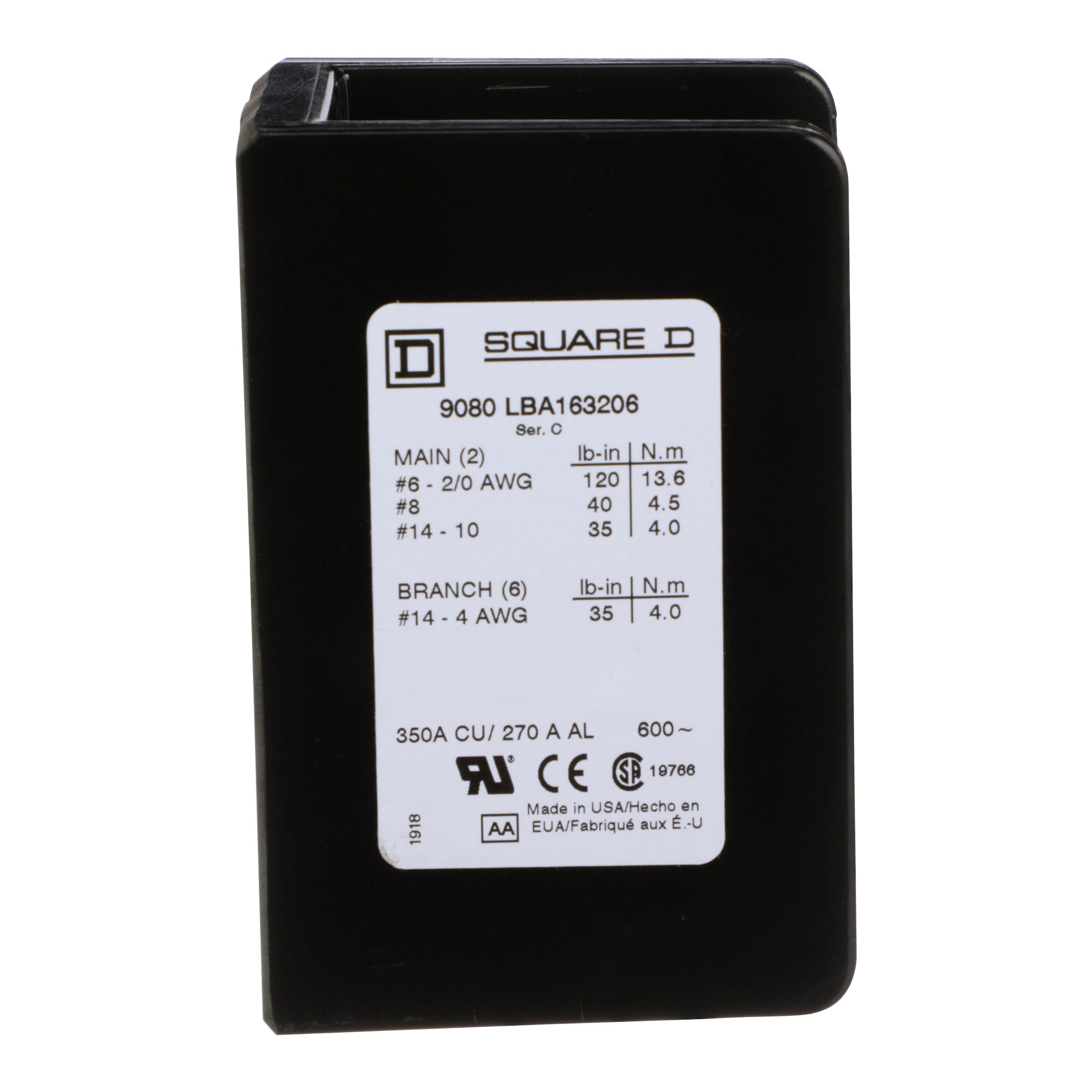

Square D 9080LBA163206 is a primary phenolic power distribution block designed for wire termination. It adheres to NEMA standards and includes one pole, equipped with two lug openings on the line side and six lug openings on the load side. The line side lugs accommodate wire sizes from fourteen AWG to two/o copper or aluminum. The load side lugs accept wire sizes from fourteen AWG to four AWG copper or aluminum. This product is crafted with aluminum lugs and supports a maximum rating of three hundred fifty amperes for copper wiring and two hundred seventy amperes for aluminum wiring, while operating at a voltage of six hundred volts. The block's housing is made of general-purpose phenolic material, ensuring durability and safety.

• UL recognized and CSA certified for safety compliance.
• Suitable for surface mounting in various applications.
• Rated for high amperage use with multiple terminations.

Product Highlights

This power distribution block provides reliable connectivity and is ideal for electrical systems requiring robust wiring solutions.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA163206
• Voltage: 600 Volt
• Amperage: 350 Amp Copper / 270 Amp Aluminum
• Wire Size: Line - 14 to 2/0 AWG; Load - 14 to 4 AWG
• Material: Phenolic
• Dimensions: 1.94 inches width x 2.61 inches depth x 4 inches height
• Number of Poles: 1 Pole
• Country of Origin: USA
