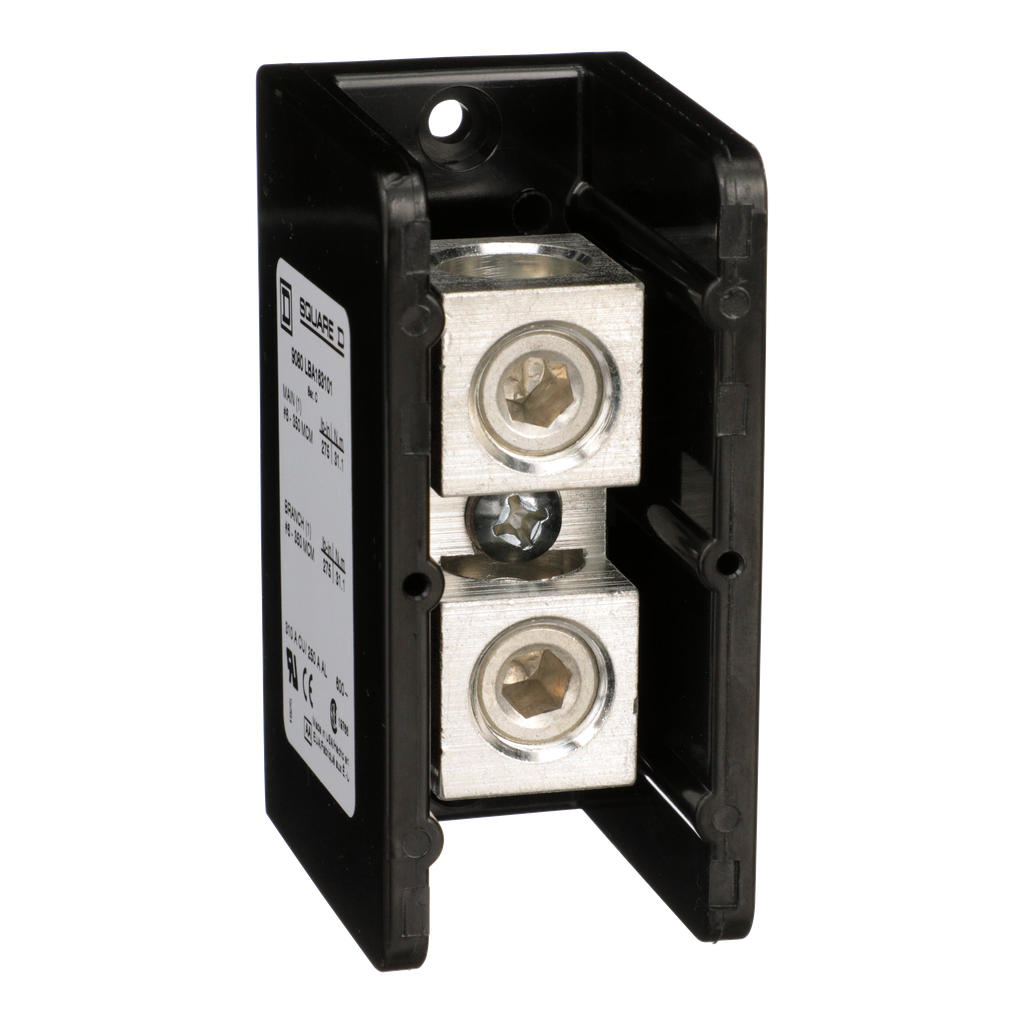

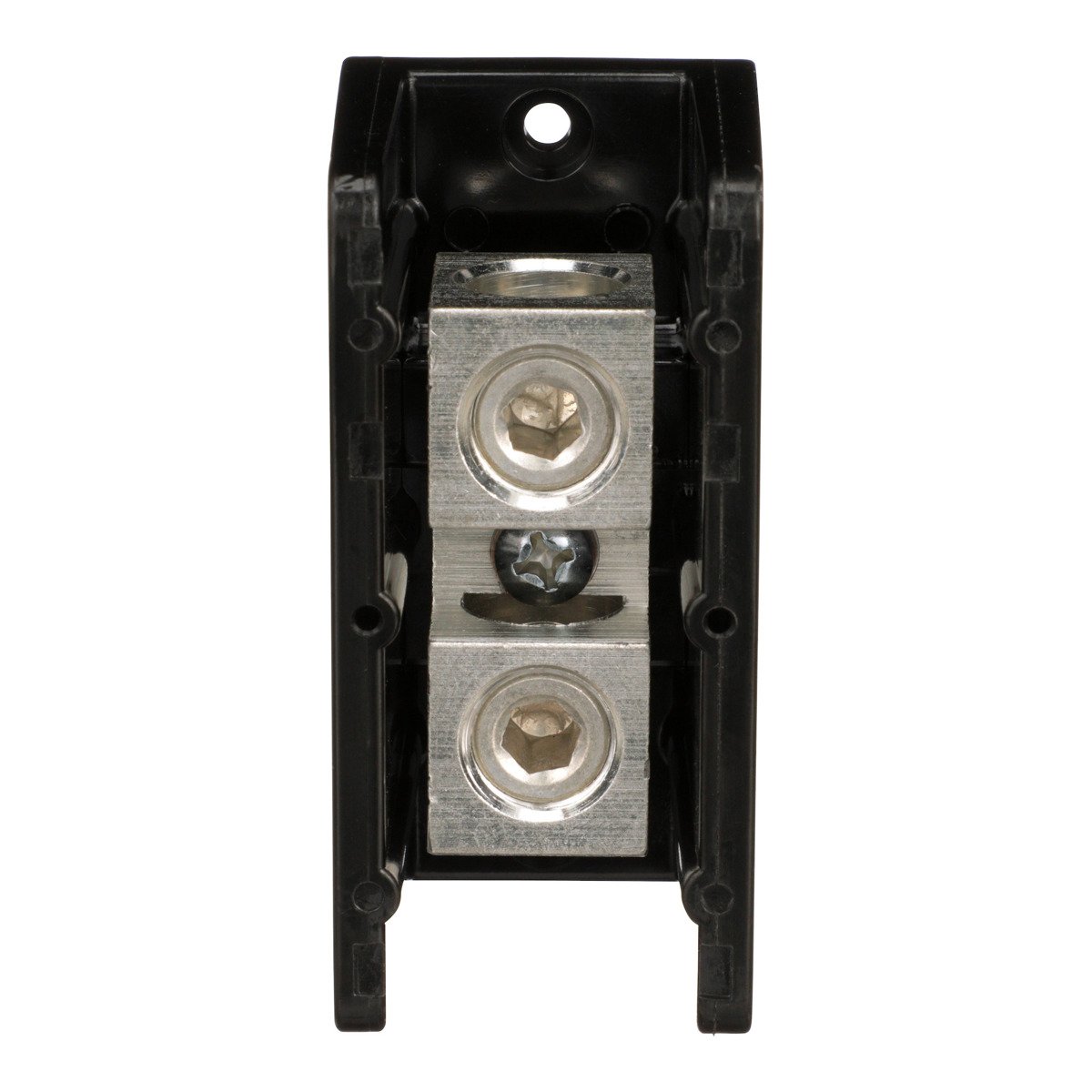

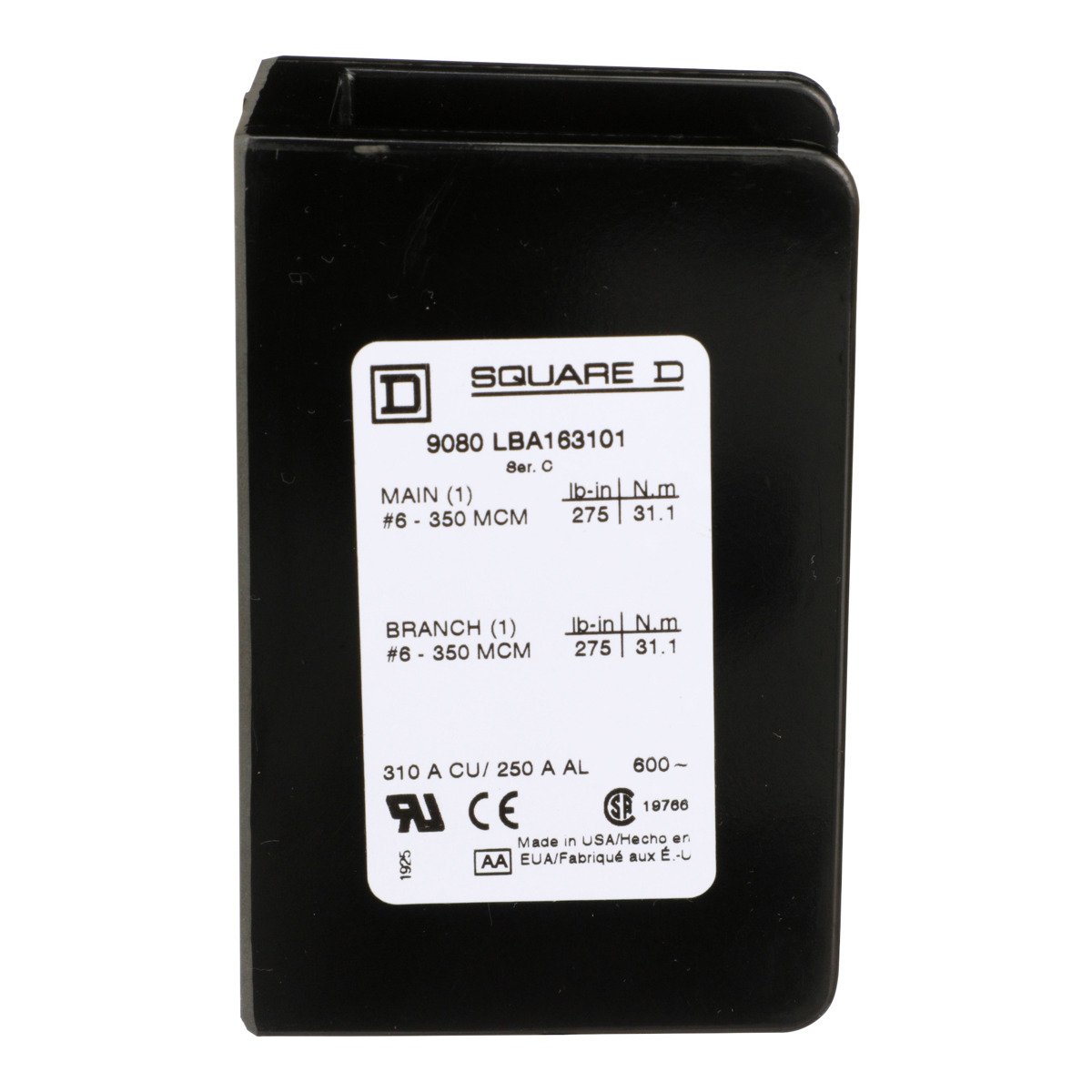

Square D 9080LBA163101 Primary Phenolic 1-Pole Standard Power Distribution Block

Product Description

The Square D 9080LBA163101 is a primary phenolic 1-pole standard power distribution block. This efficient device is for terminating wires and meets NEMA standards. This block features one lug opening on each side. The line side lug accommodates #6 to 350 kcmil copper or aluminum wire. The load side has the same specifications. The lugs are aluminum and rated for 310 amperes with copper and 250 amperes with aluminum wires. Voltage rating is up to 600 volts. The product housing is made from general purpose phenolic material, ensuring durability.

• UL component recognized and CSA certified.
• Suitable for surface mounting.
• Operating temperature ranges from -40 to 302 degrees Fahrenheit.

Product Highlights

Designed for reliable power distribution in various applications, this block features easy installation and compliance with safety standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9080LBA163101
• Material: Phenolic
• Mounting Type: Surface Mount
• Number of Poles: 1
• Current Rating: 310 Amp (Copper), 250 Amp (Aluminum)
• Voltage Rating: 600 Volt
• Wire Size: AWG 6 to 350 kcmil
• Country of Origin: USA
