Product Description

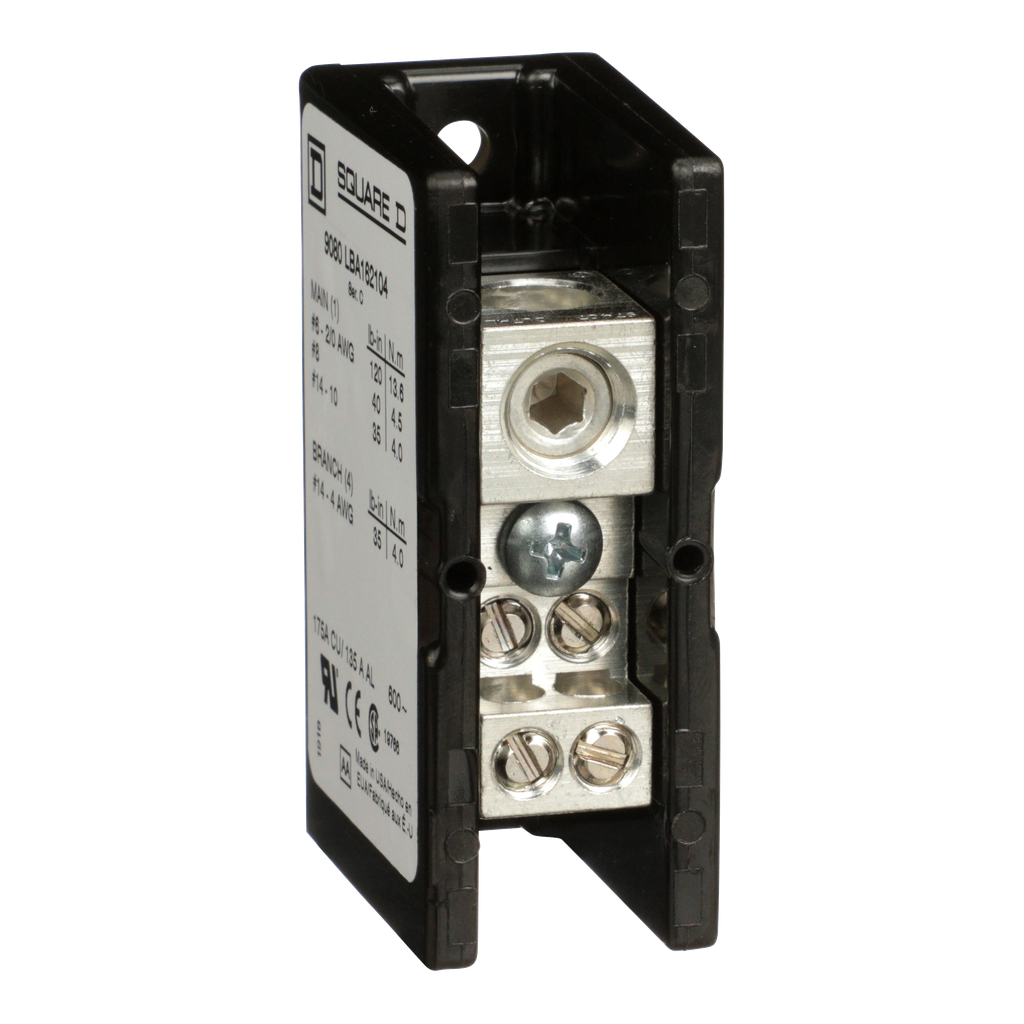

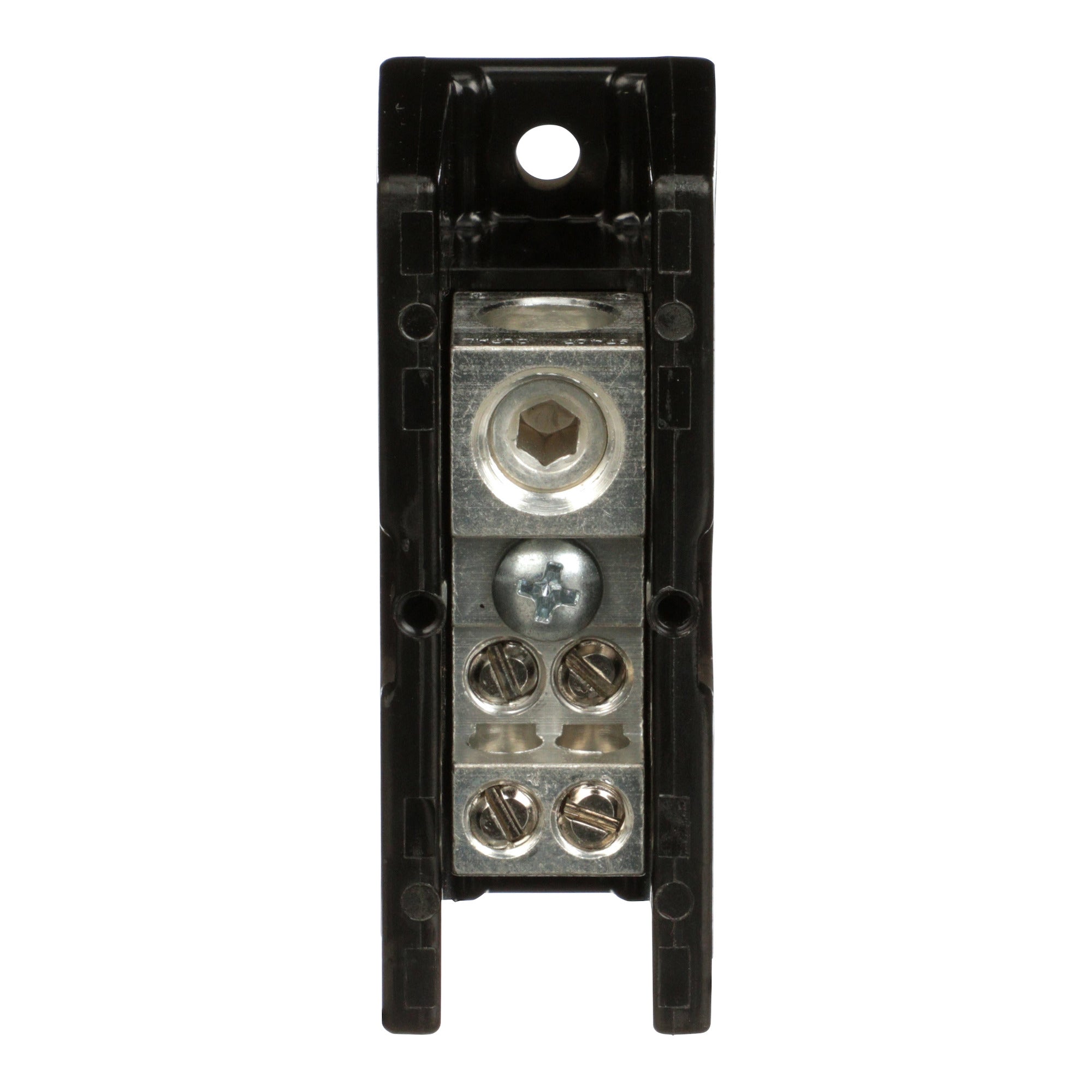

The Square D 9080LBA162104 is a power distribution block designed to terminate wires meeting NEMA standards. This one-pole block features one lug opening on the line side and four openings on the load side. The line side can accept wire sizes from fourteen AWG to two/zero AWG, while the load side is compatible with wire sizes from fourteen AWG to four AWG. The lugs, made from aluminum, support up to 175 amperes for copper wires and 135 amperes for aluminum, with a voltage rating of 600 volts. It is constructed of general purpose phenolic material, ensuring durability and reliability. This power distribution block is UL component recognized and CSA certified.
- Designed for NEMA standards
- Rated for 175 Amps with copper wire
- UL recognized and CSA certified
Product Highlights
This power distribution block is essential for safely managing large electrical loads in various applications, primarily suited for commercial and industrial uses.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Catalog Number: 9080LBA162104
-
Current Rating: 175 Amps (Copper), 135 Amps (Aluminum)
-
Voltage Rating: 600 Volts
-
Wire Size: Line: 14 AWG to 2/0 AWG, Load: 14 AWG to 4 AWG
-
Material: Phenolic
-
Mounting Type: Surface Mount
-
Operating Temperature: -40 to 302 degrees F
-
Number of Poles: 1
