Square D 9080LBA162101 Power Distribution Block 600 Volt 175 Amp

Product Description

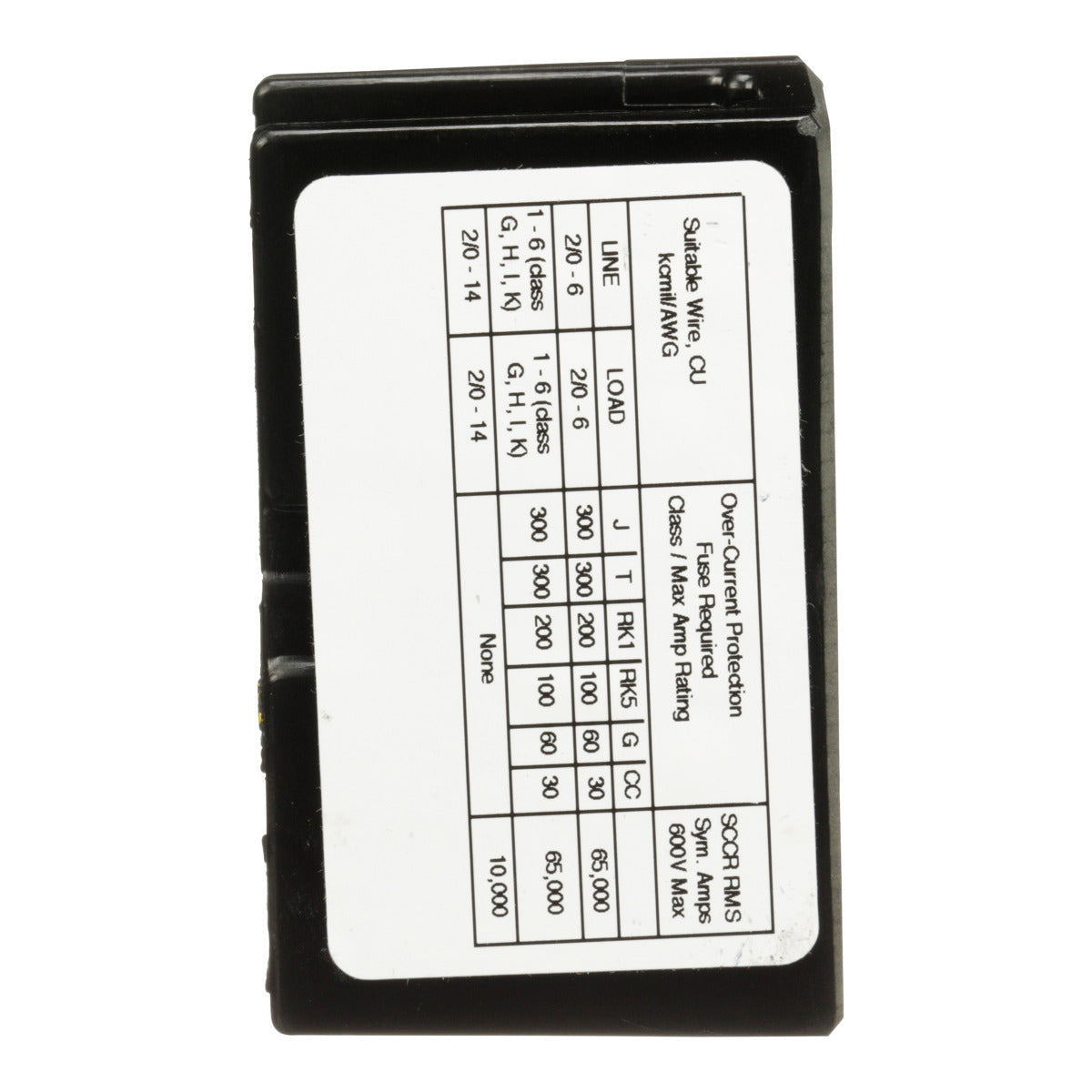

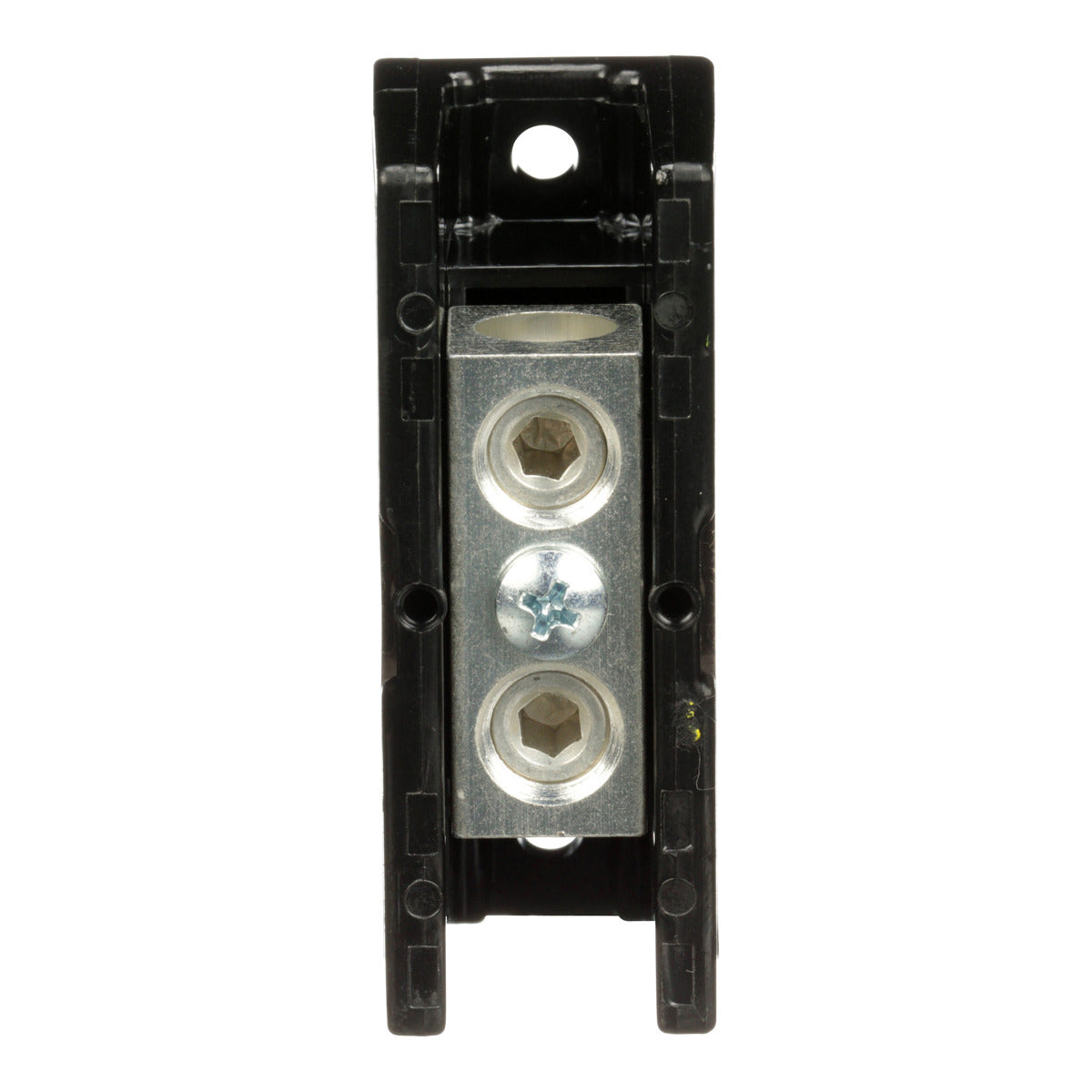

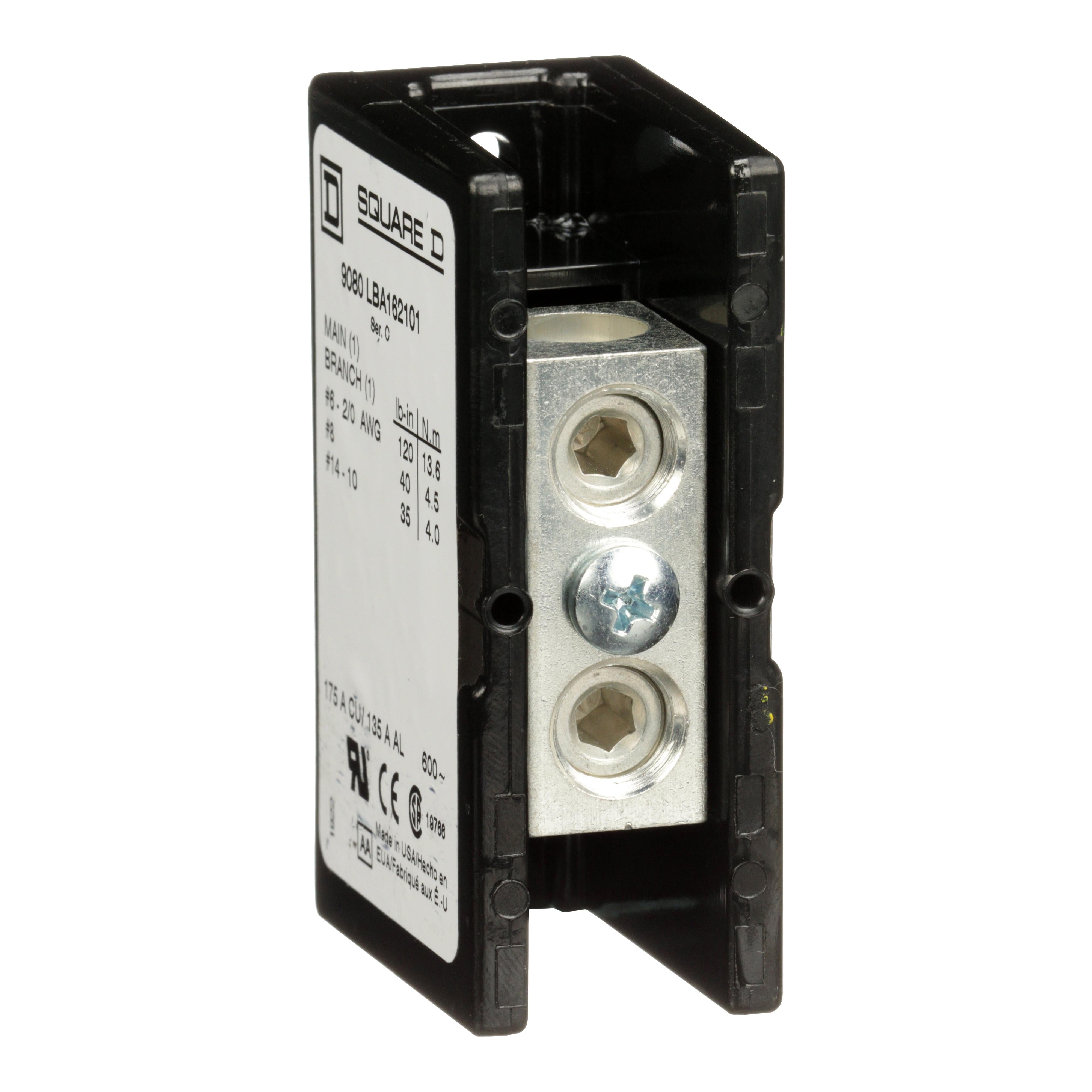

The Square D 9080LBA162101 Linergy power distribution block is designed for terminating wires and adheres to NEMA standards. This one-pole block features one lug opening on the line (main) side and one on the load (branch) side. It accepts one #14 to 2/0 copper or aluminum wire and is UL component recognized and CSA certified.

• Designed to NEMA standards for terminating wires.
• Features one pole block with one lug opening on the line and load side.
• Rated to accept one #14 to 2/0 copper or aluminum wire.

Product Highlights

The Square D 9080LBA162101 power distribution block is rated to 600 volts, with lugs made of aluminum and a housing made of general purpose phenolic.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080LBA162101
• Country of Origin: USA

Technical Specifications

• Type: Power Distribution Block
• Brand: Square D
• Depth: 1.78 Inch
• Width: 1.13 in
• Height: 2.88 Inch
• Voltage: 600 Volt AC/DC
• Material: Phenolic: Block
• Wire Size: 14 to 2/0 AWG
• Applications: 9080LB,9080LB21
• Strip Length: 0.5 in
• Mounting Type: Surface Mount
• Certifications: CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
• Conductor Size: 14-2/0 AWG
• Number of Poles: 1
• Country of Origin: USA
• Operating Temperature: -40-302 degrees F
• Short Circuit Current: 65 kA
• Number of Terminations: 1
• Catalog Number: 9080LBA162101
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Mounting: Surface
• UPC: 785901097297
• GTIN: 00785901097297
• Item Type: Power Distribution Block
• Voltage Rating: 600V AC
• Current Rating: 135 Amp (Aluminum), 175 Amp (Copper)
• Number of Primary Openings per Pole: 1
• Primary Opening Wire Size: 14 to 2/0 AWG
• Number of Secondary Openings per Pole: 1
• Secondary Opening Wire Size: 14 to 2/0 AWG
• Conductor Material: Aluminum/Copper
• Cover Type: 9080LB21 Clear Plastic
• Temperature Rating: -40 to 302 Deg F
• Connector Material: Tin Plated Aluminum
• Housing Material: Phenolic
• Approval: UL, CSA, CE
• RoHS Compliant: Yes
• Terminal Type: Lug
• Amps: Al conductor: 135 A; Cu Conductor: 175 A
• Item: Power Distribution Block
• Length: 2.88 in
• Features: Mercury Free
• Max. Amps: 175 A
• Standards: CE Marked, CSA File 70361 Class 6228-1, UL File E60616 Guide XCFR2
• Overall Depth: 1.78 in
• Overall Width: 1.13 in
• Overall Length: 2.88 in
• Maximum Voltage: 600 V AC/DC
• Terminal Material: Aluminum
• Wire Strip Length: Line 0.5 in; Load 0.5 in
• Number of Circuits: 1
• Primary Wire Range: 14 to 2/0 AWG
• Load Side Wire Range: 14 AWG - 2/0 AWG
• Max. Operating Temp.: 302°F
• Min. Operating Temp.: -40°F
• Secondary Wire Range: 14 to 2/0 AWG
• Line Connections/Pole: 1.0
• Load Connections/Pole: 1.0
• For Conductor Material: Aluminum, Copper
• Primary Connections/Pole: 1.0
• Primary Wire Range (AWG): 14 to 2/0 AWG
• Length (Straight Wireway): 2.88 in
• Line Side Connection Type: Lug
• Line Side Wire Size Range: 14 AWG - 2/0 AWG
• Load Side Connection Type: Lug
• Secondary Connection/Pole: 1.0
• Secondary Wire Range (AWG): 14 to 2/0 AWG
• Maximum Operating Temperature: 302 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Power Distribution Block Design: Open
• Maximum Current - Copper Conductor: 175 A
• For Line Copper Wire Size - Maximum: 2/0 AWG
• For Line Copper Wire Size - Minimum: 14 AWG
• For Load Copper Wire Size - Maximum: 2/0 AWG
• For Load Copper Wire Size - Minimum: 14 AWG
• Maximum Current - Aluminum Conductor: 135 A
• For Line Aluminum Wire Size - Maximum: 2/0 AWG
• For Line Aluminum Wire Size - Minimum: 14 AWG
• For Load Aluminum Wire Size - Maximum: 2/0 AWG
• For Load Aluminum Wire Size - Minimum: 14 AWG
• Part Number #: 9080LBA162101
• Series: 9080LB
• Number of Primary Connections: 1
• Number of Secondary Connections: 1
• Standards Met: CSA; UL Listed; CE; RoHS
