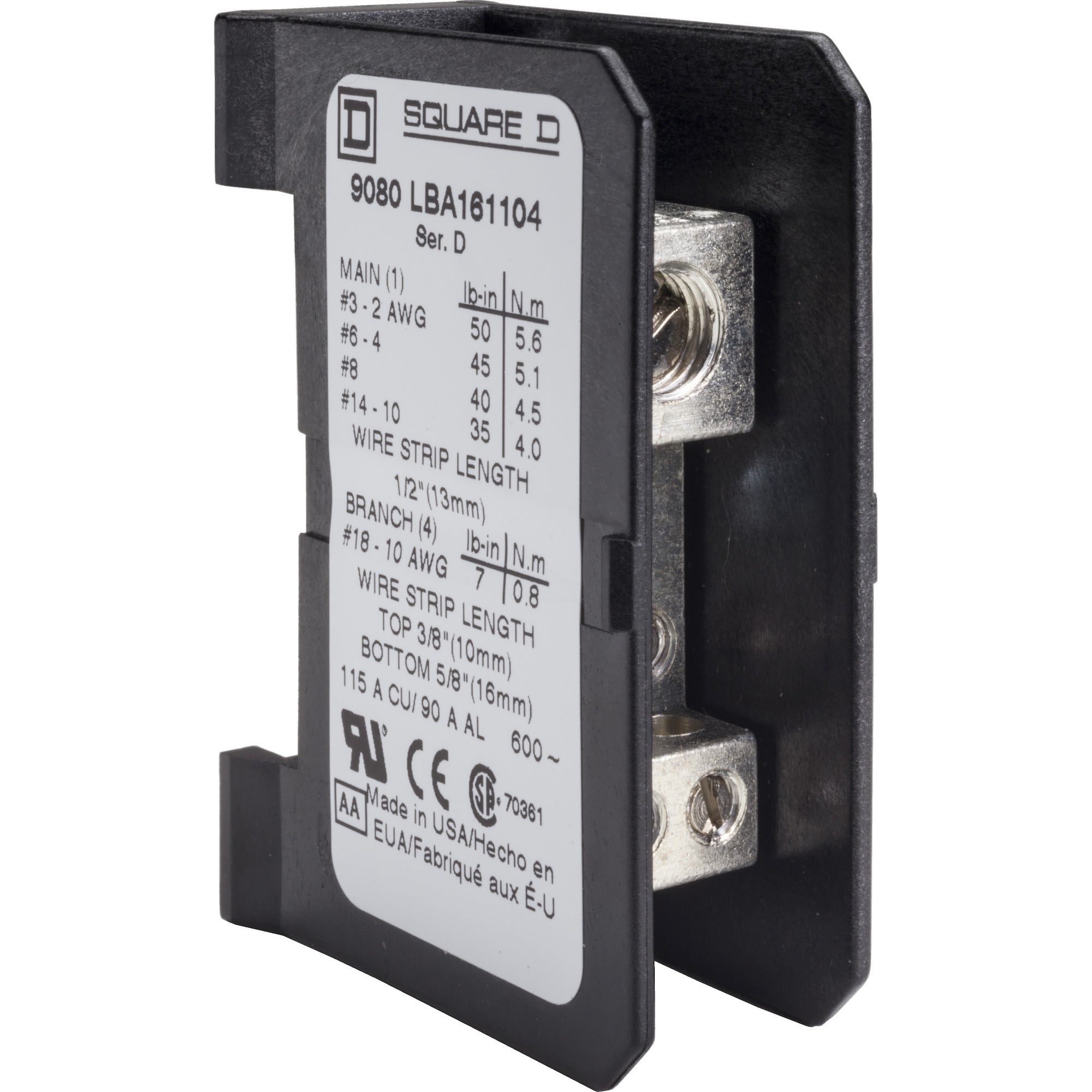

Square D 9080LBA161104 Power Distribution Block 115 Amp 600 Volt 1-Pole

Product Description

The Square D 9080LBA161104 Miniature Power Distribution Block is an essential device for optimized wiring solutions, facilitating efficient power distribution. Constructed by premier manufacturer Schneider Electric, this product adheres to stringent NEMA standards for reliability and safety.

• Supports aluminum and copper wiring, accommodating a broad range of wire sizes.
• Features a high impact thermoplastic housing for superior durability.
• UL recognized and CSA certified, ensuring compliance with North American standards.

Product Highlights

This power distribution block allows for secure and organized electrical connections with its one-line, four-load configuration. It supports up to 115 amps for copper wires and 90 amps for aluminum wires, making it versatile for various applications.

Product Information

Standard Information

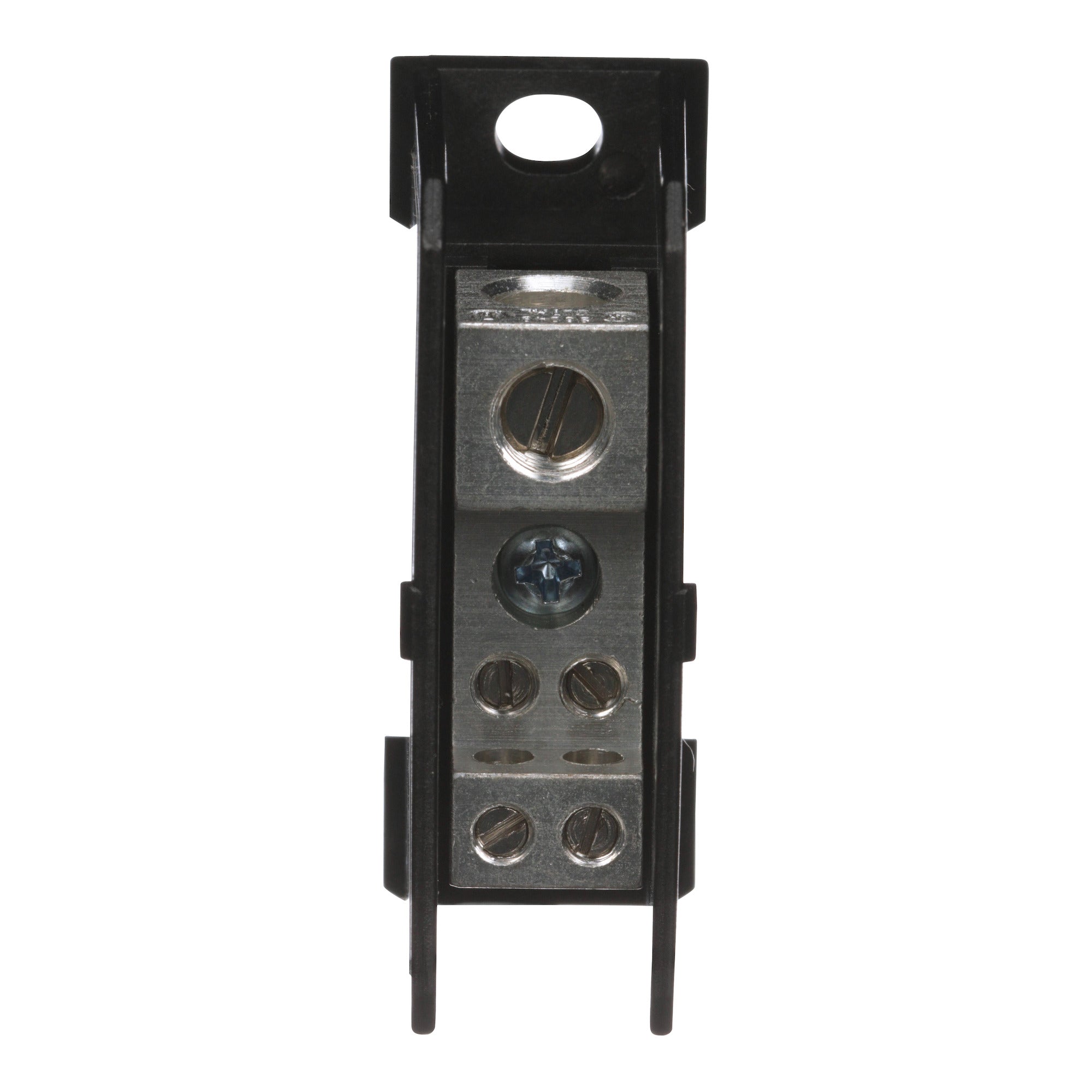

• Connection: Tin plated aluminum lugs with varying torque specifications.
• Material: Durable thermoplastic block.

Technical Specifications

• Current: 115 Amp copper, 90 Amp aluminum.
• Voltage: Rated up to 600 volts.
• Wire Size: Accepts 14-2 AWG and 18-10 AWG.
• Mounting Type: Surface mounted for ease of installation.
• Dimensions: Depth 1.62 inches, Width 0.85 inches, Height 2.29 inches.
• Certifications: CE, CSA, UL.
