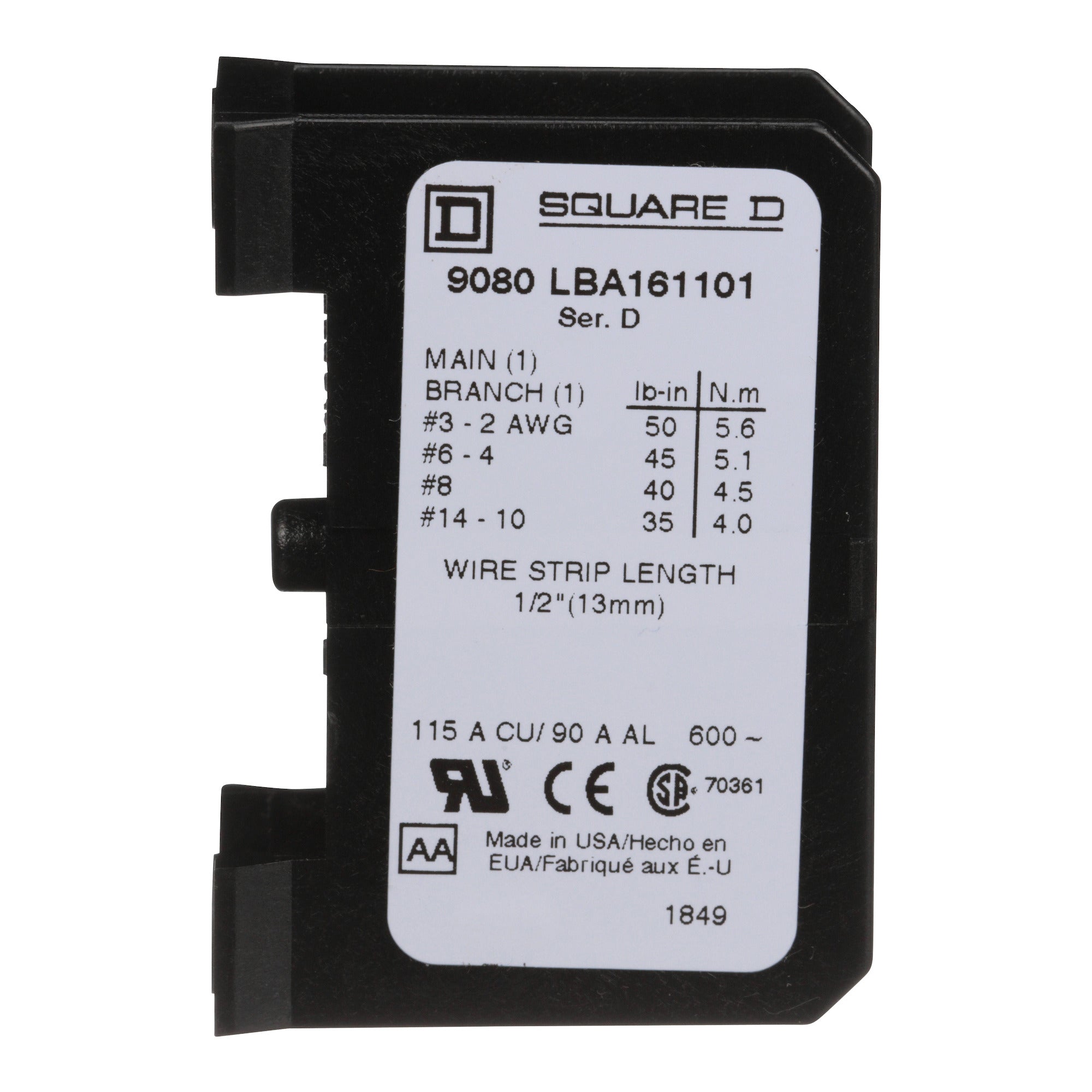

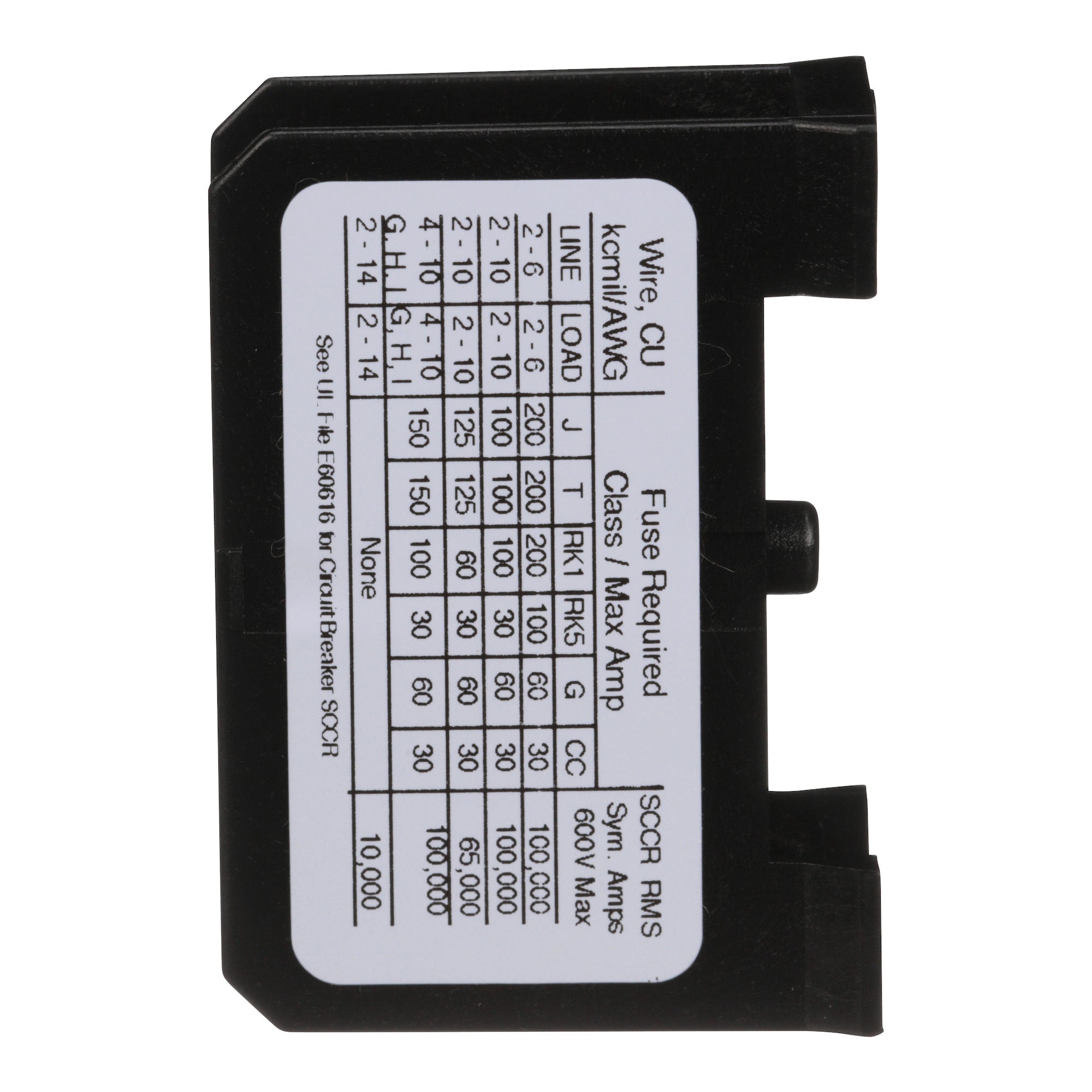

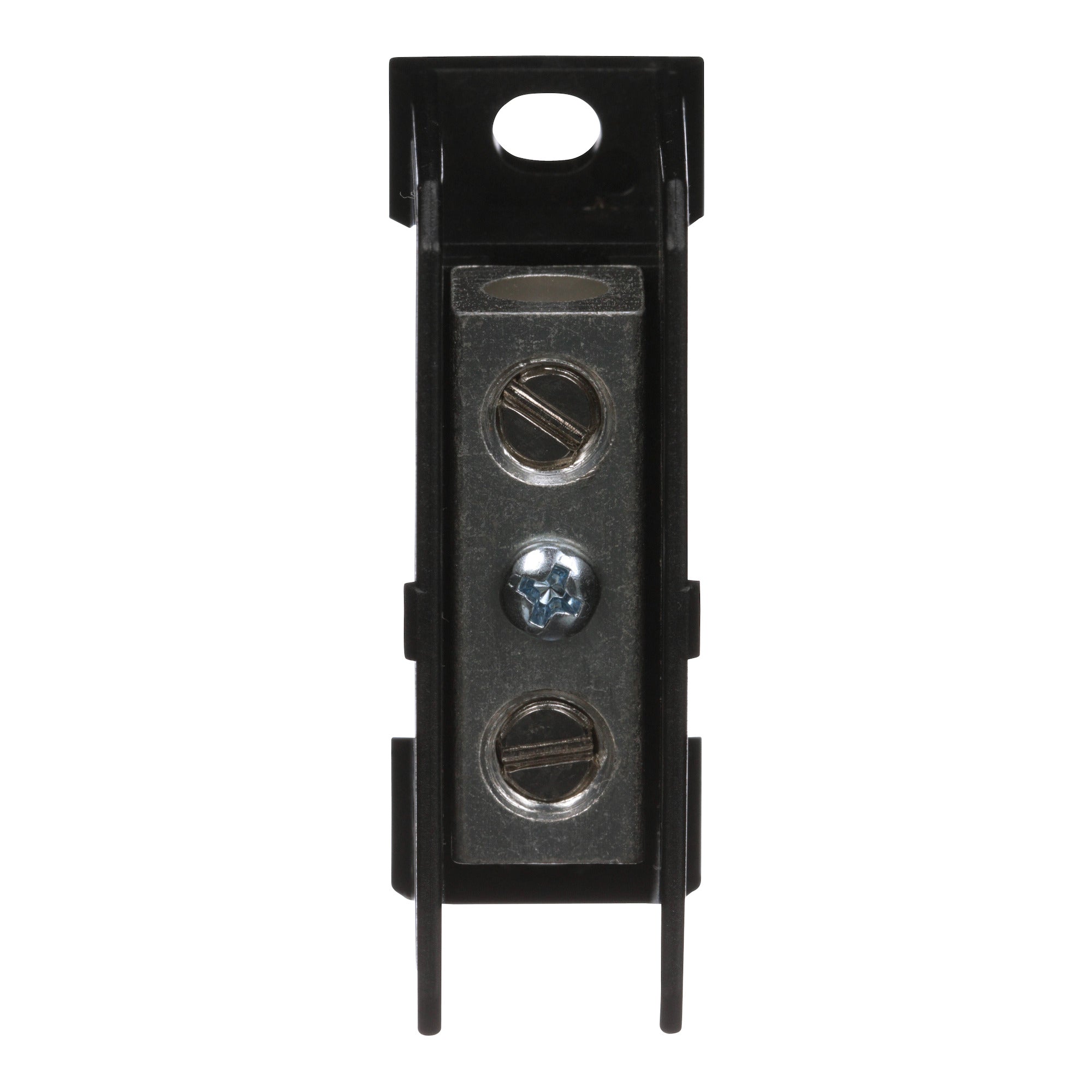

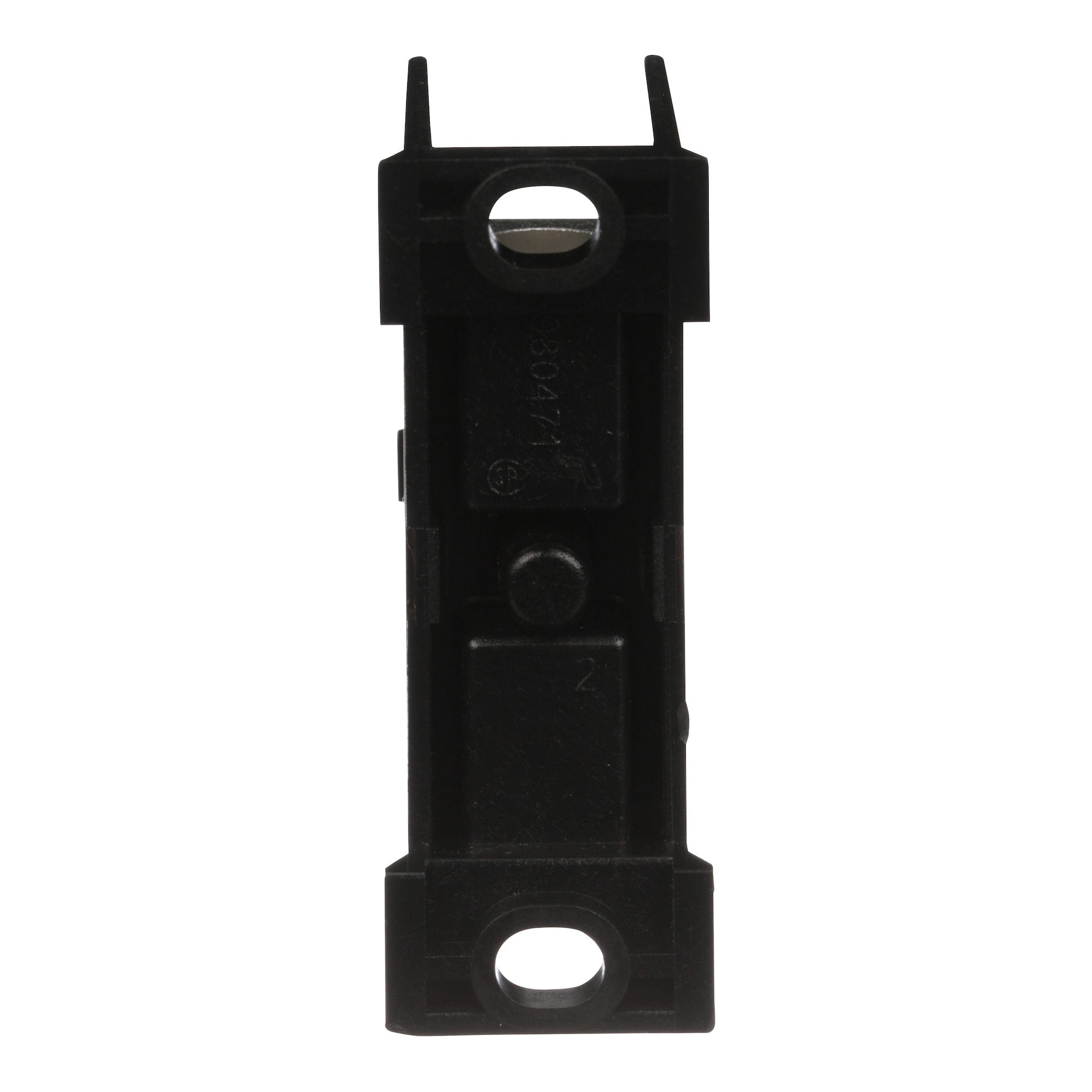

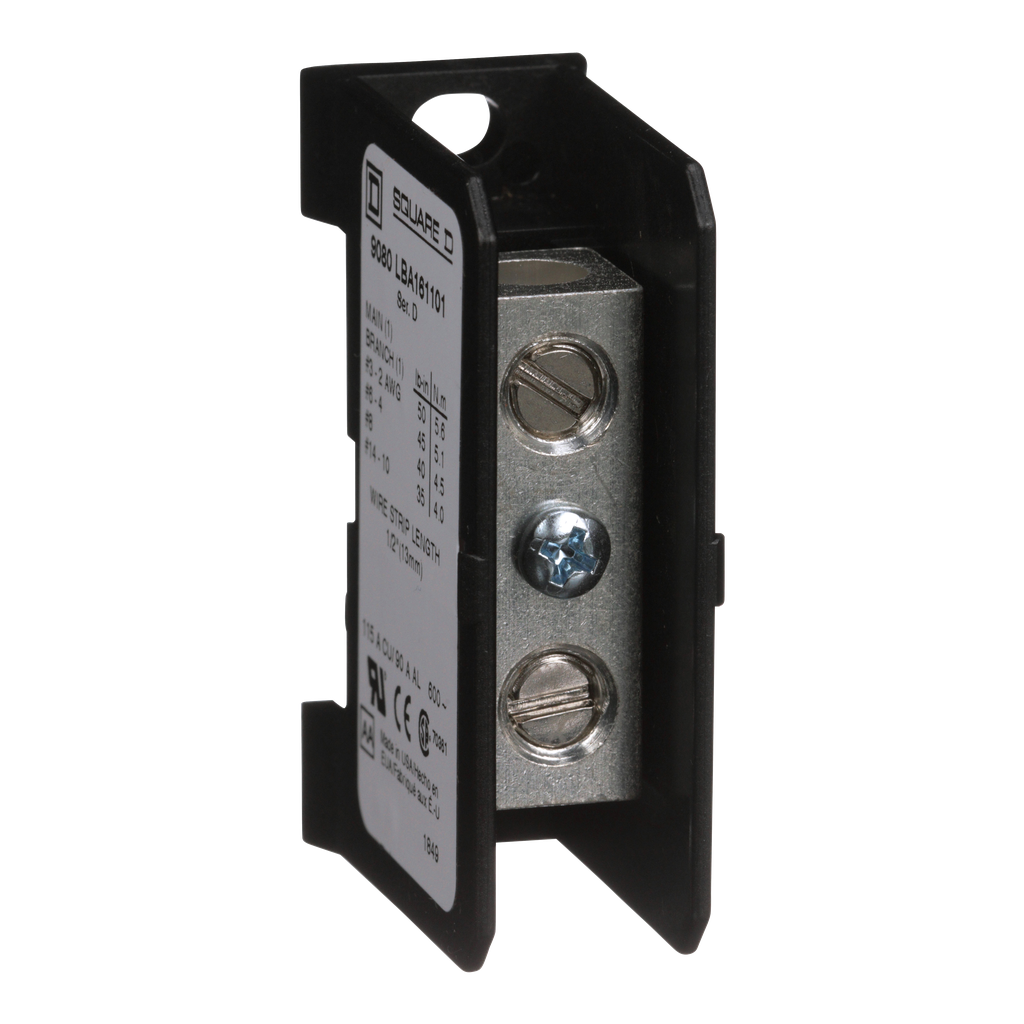

Square D 9080LBA161101 Primary Thermoplastic Power Distribution Block 115 Amp 600 Volt 14 to 2 AWG

Product Description

The Square D 9080LBA161101 is a one-pole primary power distribution block. It is designed for terminating wires in electrical systems that adhere to NEMA standards. The block has one lug opening on the line side and one on the load side.

• Accepts wire sizes from fourteen to two AWG copper or aluminum.
• Rated for 115 amperes with copper wire and 90 amperes with aluminum wire.
• UL recognized and CSA certified for safety and reliability.

Product Highlights

The housing is made of high-impact thermoplastic, providing durability in various applications. The design supports easy mounting on surfaces and offers effective wire management for efficient power distribution.

Product Information

Standard Information

• Catalog Number: 9080LBA161101
• Manufacturer: Schneider Electric

Technical Specifications

• Material: Thermoplastic
• Current Rating: 115 amp
• Voltage Rating: 600 volts
• Wire Size Compatibility: 14 to 2 AWG, copper or aluminum
• Length: 1.62 inches
• Width: 0.85 inches
• Height: 2.29 inches
• Country of Origin: Mexico
• Warranty: 18 months
• Connections: Tin plated aluminum lugs
