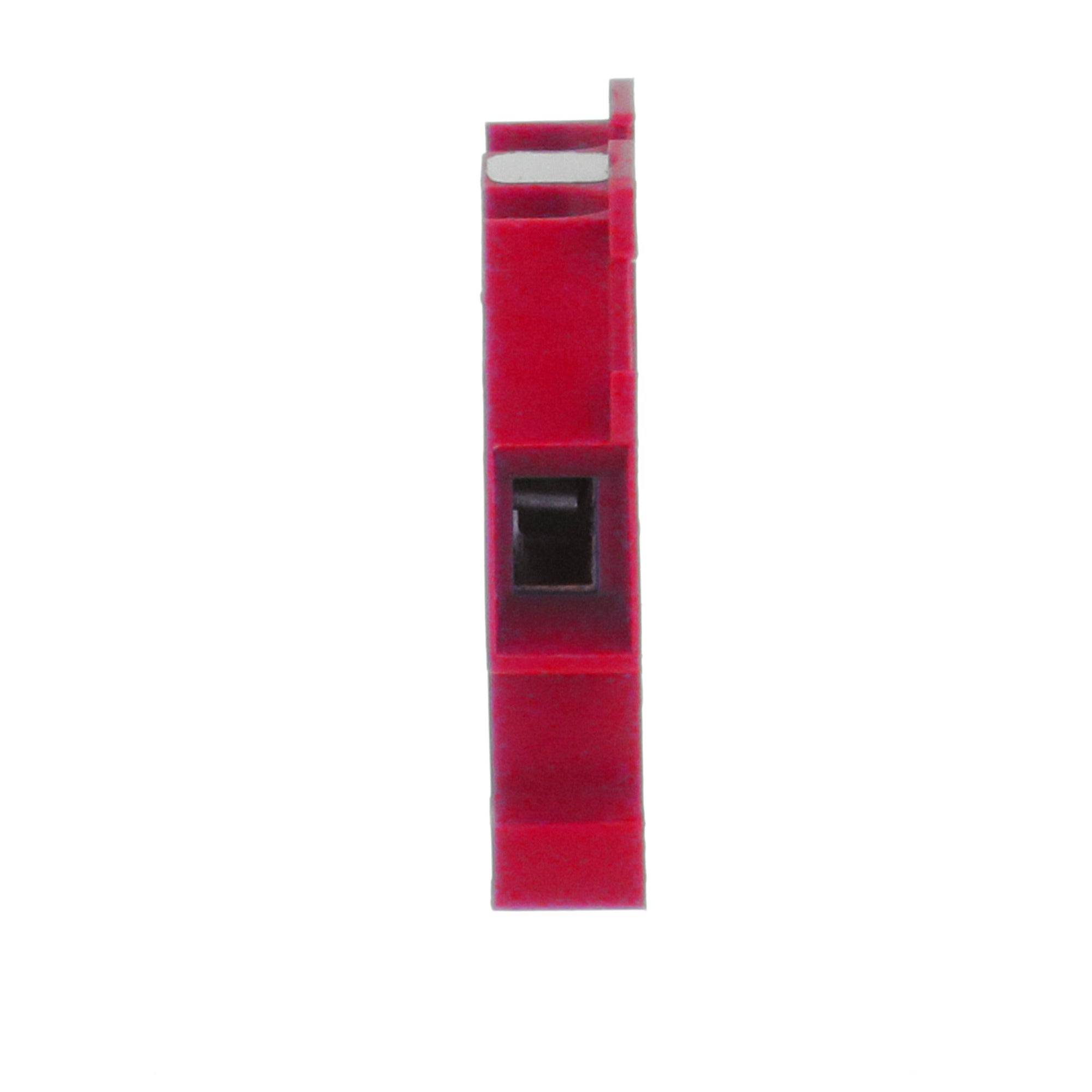

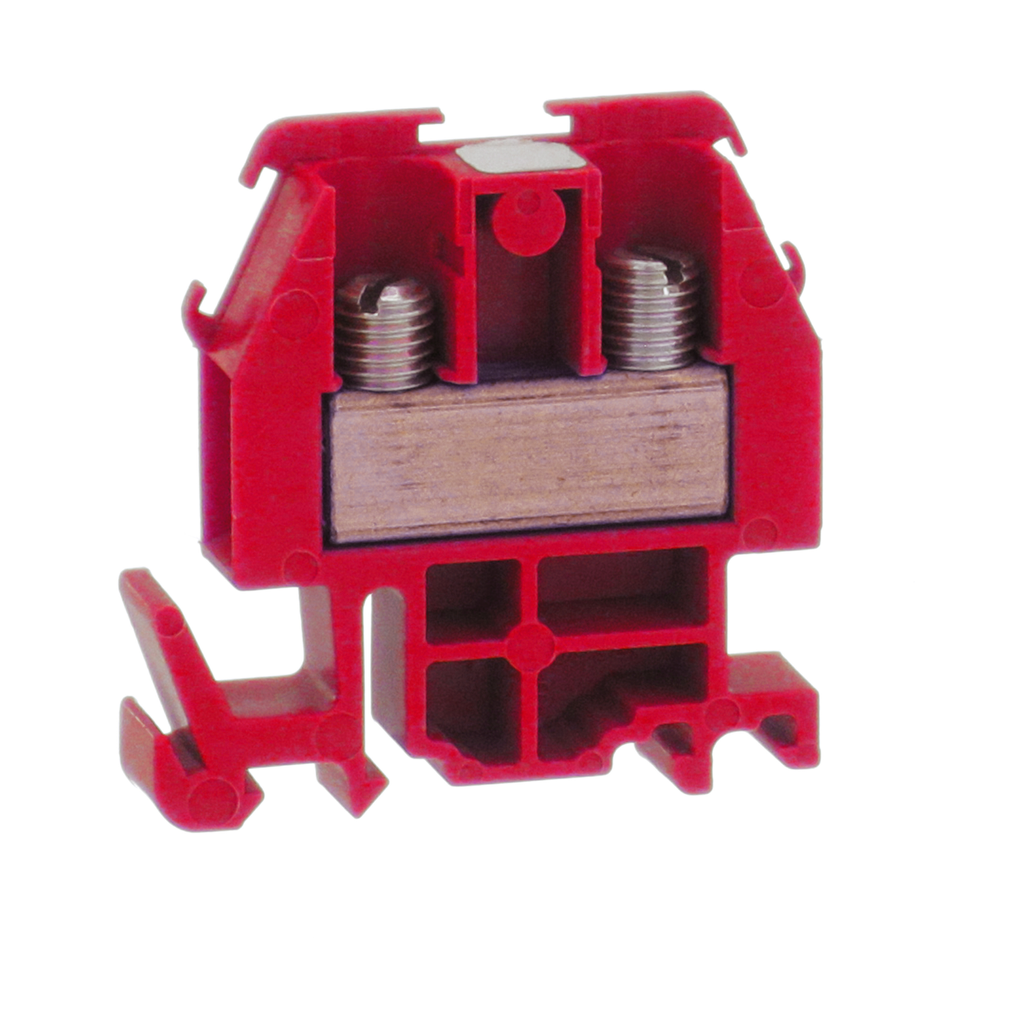

Square D 9080GRR6 600 Volt 60 Amp 22 to 8 AWG Din Rail Terminal Block

Product Description

Square D offers the MPN 9080GRR6, a terminal block designed for terminating wires in control panels. This component complies with NEMA standards and is suitable for solid or stranded copper conductors ranging from twenty-two AWG to eight AWG. The box lug connector enables flexibility in wire combinations, allowing each terminal to accommodate various conductor sizes. This terminal block also features a durable nylon construction.

• UL component recognized for safety
• CSA certified for up to sixty amperes
• Designed for installation on thirty-five millimeter DIN rails

Product Highlights

This terminal block is ideal for applications requiring reliable wire connections in control systems and electrical panels.

Product Information

Standard Information

• Catalog Number: 9080GRR6
• Manufacturer: Schneider Electric

Technical Specifications

• Material: Nylon
• Current Rating: 60 Amp
• Voltage Rating: 600 Volt
• Wire Size Compatibility: AWG 22 to AWG 8 copper
• Dimensions: 1.72 inches wide, 1.82 inches high, 0.35 inches deep
• Country of Origin: Mexico
• Certifications: UL, CSA
