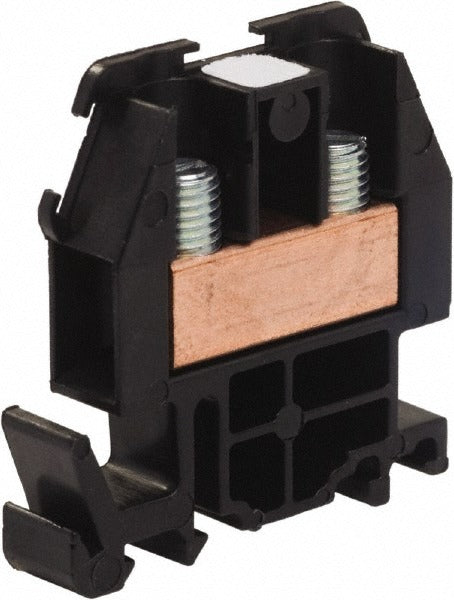

Square D 9080GRB6 Din Rail Terminal Block 600V 60A

Product Description

The SQUARE D 9080GRB6 is a standard DIN rail mount terminal block rated for 600 VAC and 60 amps. It is built with a nylon body and copper contacts, offering reliable electrical connection in control panels, distribution enclosures, and industrial wiring applications. The block accepts wire sizes ranging from 22 AWG to 8 AWG, making it compatible with a wide range of conductor gauges used in low-voltage control and power circuits. The operating temperature range spans -40 degrees F to 275 degrees F, allowing installation in environments subject to thermal stress. Licensed electricians and panel builders install this component as part of terminal strip assemblies in commercial and industrial electrical systems.

This terminal block is suited for use in control panels, machine wiring, and industrial enclosures where DIN rail termination is standard. Its compact footprint — 1.82 inches high by 1.72 inches deep — allows dense installation on standard 35 mm DIN rail. The single-row, 2-contact configuration is commonly used in modular terminal strip layouts where individual circuits are terminated and organized within an enclosure. This part is appropriate for both new panel construction and replacement of failed or damaged terminal blocks in existing assemblies.

Key Features

• Rated 600 VAC and 60 amps for high-capacity circuit termination
• Nylon block construction with copper contacts for durable, low-resistance connections
• Accepts 22 AWG to 8 AWG wire for versatile conductor compatibility
• DIN rail mounting for fast, tool-assisted installation in standard enclosures
• Operating range of -40 degrees F to 275 degrees F suits demanding environments
• CE Marked, CSA Certified, RoHS Compliant, and UL Listed for broad code acceptance

Compatibility

Designed as an OEM-style replacement or new-installation terminal block for standard DIN rail assemblies in commercial and industrial control panel applications.

Installation Notes

This terminal block is installed by licensed electricians in accordance with applicable NEC requirements for terminal and wiring methods. De-energize and lock out the panel before inserting or removing terminal blocks from a DIN rail assembly. Verify that conductor gauge and insulation rating are appropriate for the circuit voltage and ampacity before terminating wires. Do not exceed the rated 60-amp or 600 VAC limits for the installed circuit.
