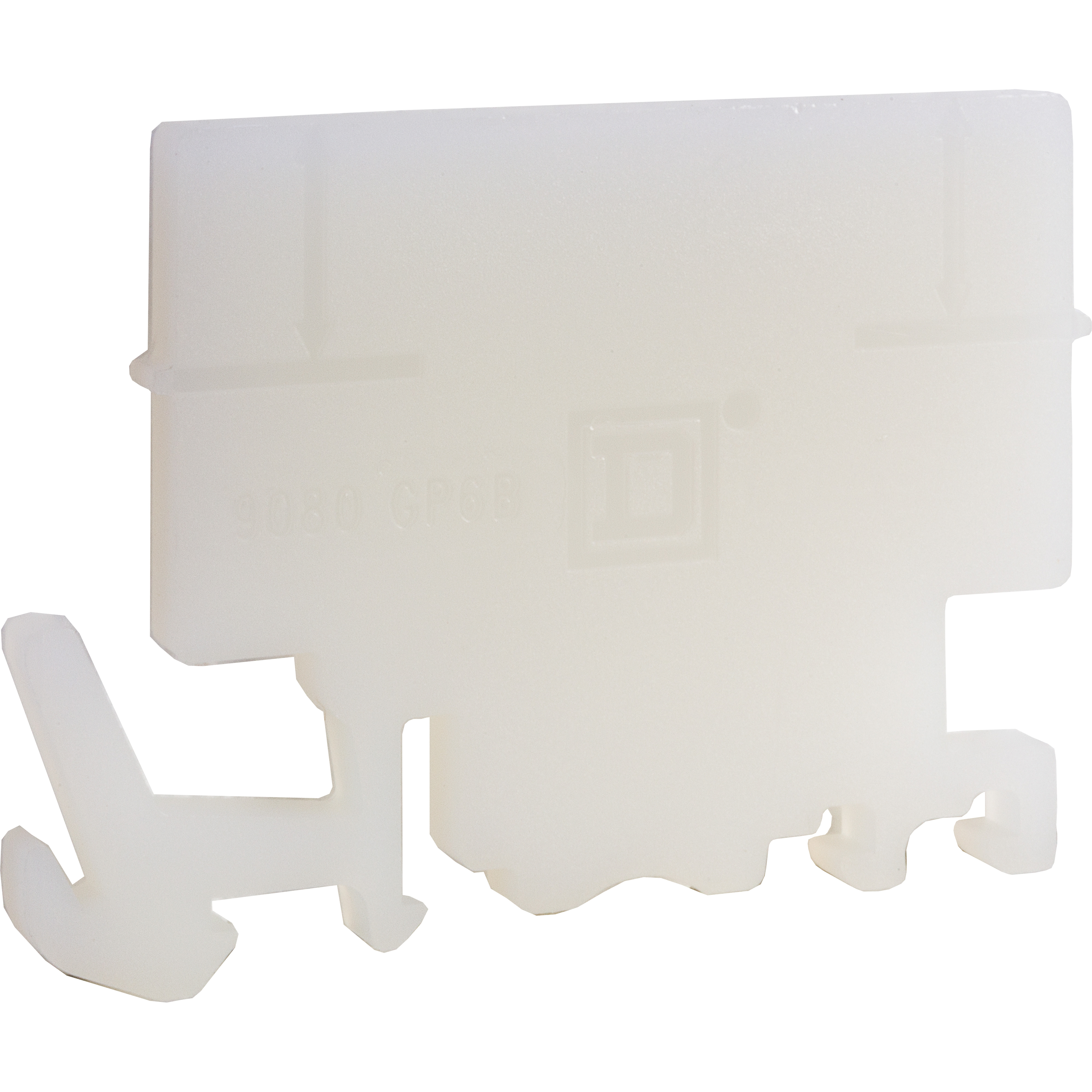

Square D 9080GP6B Terminal Block End Barrier Set of 10

Product Description

The Square D 9080GP6B is a Linergy NEMA sectional terminal block end barrier designed to NEMA standards. This end barrier covers the open side of the 9080GA6 or 9080GP6 terminal block. It is required at the end of all assemblies of these blocks to meet UL and CSA certification requirements. The end barrier is molded in a natural nylon color.

• Linergy NEMA sectional terminal blocks
• Designed to NEMA standards
• Used to cover the open side of the 9080GA6 or 9080GP6 terminal block

Product Highlights

The Square D 9080GP6B terminal block end barrier ensures safety and compliance for terminal block assemblies.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9080GP6B
• Country of Origin: Mexico

Technical Specifications

• Type: End Barrier
• Brand: Square D
• Color: Natural
• Depth: 0.12 Inch
• Width: 1.8 in
• Height: 1.33 Inch
• Pkg Qty: Set of 10
• Material: Nylon
• Applications: 9080G
• Mounting Type: 35 Mm DIN Rail,9080GH Track
• Size: 0.12 in
• Catalog Number: 9080GP6B
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• UPC: 785901155362
• GTIN: 00785901155362
• Standards: REACH
• Thickness: 0.12 in
• For Use With: 9080GA6, Mfr. No. 9080GP6
• Overall Depth: 0.12 in
• Overall Width: 1.8 in
• Overall Length: 2.3 in
• RoHS Compliant: Yes
• Compatible with Series: 9080G
• Length (Straight Wireway): 2.3
• Compatible with Product Type: Terminal Block
• Maximum Operating Temperature: 257 Degrees F
• Minimum Operating Temperature: -40 Degrees F
• Compatible Manufacturer Model Number: 9080GA6, 9080GP6
• Construction: Standard NEMA
• Used On: Class 9080GP6 NEMA Type Terminal Block
• Approval: UL, CSU
• Mounting: 35 MM DIN 3 Track
• IGCC: 4547
• Brand Name: 9080G
• Family group: TERMINAL BLOCKS
• Quantity Per Set: Set of 10
• Temperature Rating (Degrees F): 40 to 257, 40 to 257 deg F
• Mounting type: Lug Box/DIN Rail/Track
• UNSPSC: 39121410
• Manufacturer Part Number: 9080GP6B
• Numeric ID: 2510411
• Series: Class 9080 Series
• UPC Code: 785901155362
