Square D 9080GMG6 Square D 600 Volt 30 Amp 22 to 10 AWG 35 mm Din Rail Terminal Block

Product Description

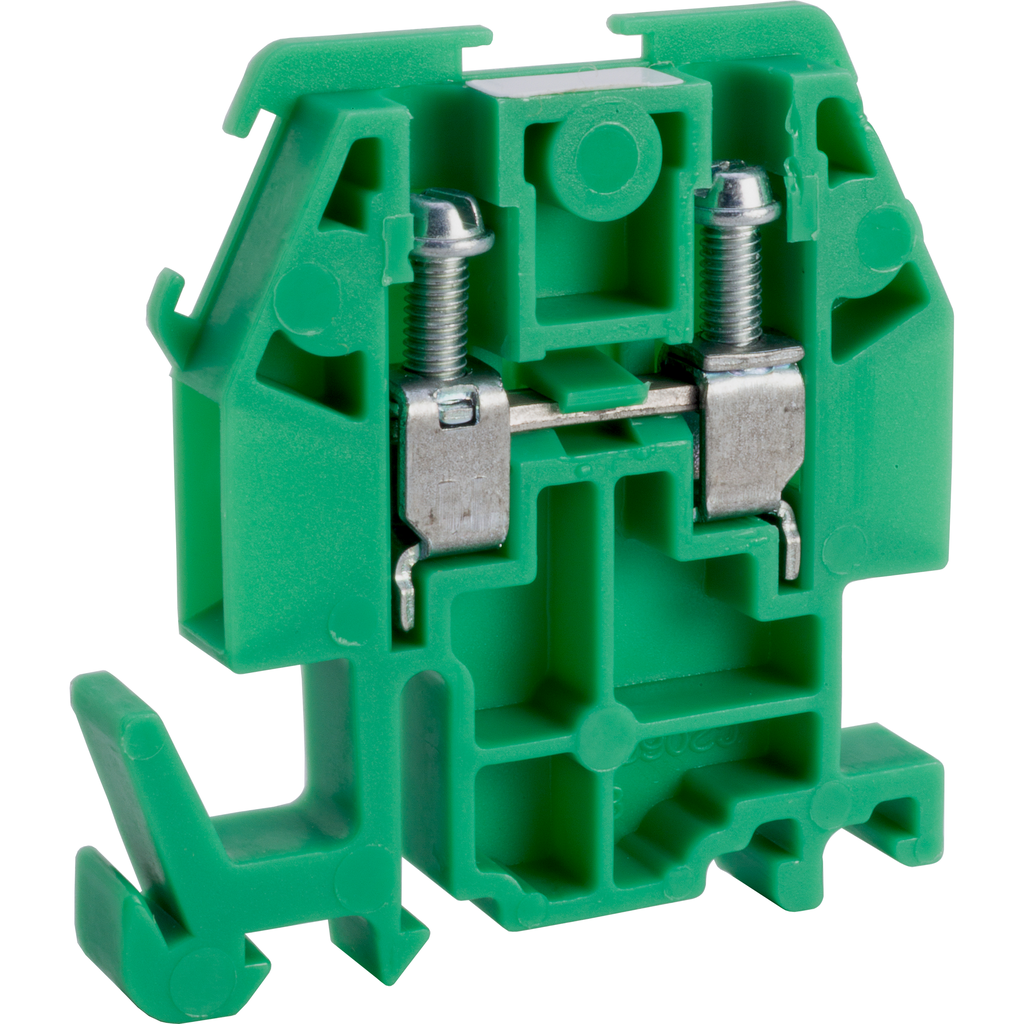

The Square D 9080GMG6 is a terminal block designed for use in control panels, compliant with NEMA standards. This block is suitable for solid or stranded copper wires sized from twenty-two to ten AWG. The block features a box lug connector which accommodates various wire combinations, making it versatile for different electrical applications. Each box lug can accept one of the following: ten AWG, twelve AWG, fourteen AWG, one or two sixteen AWG, one or two eighteen AWG, one to five twenty AWG, or one to eight twenty-two AWG. The block is molded from nylon in green and is UL recognized as a component. The block is CSA certified to handle up to thirty amperes with voltage up to six hundred VAC or VDC.

• Compatible with wire sizes AWG 22 to AWG 10
• UL recognized and CSA certified
• Designed for use on 35 mm DIN rail

Product Highlights

This terminal block offers flexibility in wire management and ensures safety and reliability in electrical systems.

Product Information

Standard Information

• Catalog Number: 9080GMG6
• Manufacturer: Schneider Electric

Technical Specifications

• Current: 30 Amp
• Voltage: 600 Volt
• Material: Nylon
• Wire Size: AWG 22...AWG 10 copper
• Mounting Type: 35 mm DIN Rail
• Certifications: CE, CSA File 62144 Class 6228 01, UL Recognized E60616 CCN XCFR2
• Country of Origin: Mexico
• Warranty Length: 18 months
