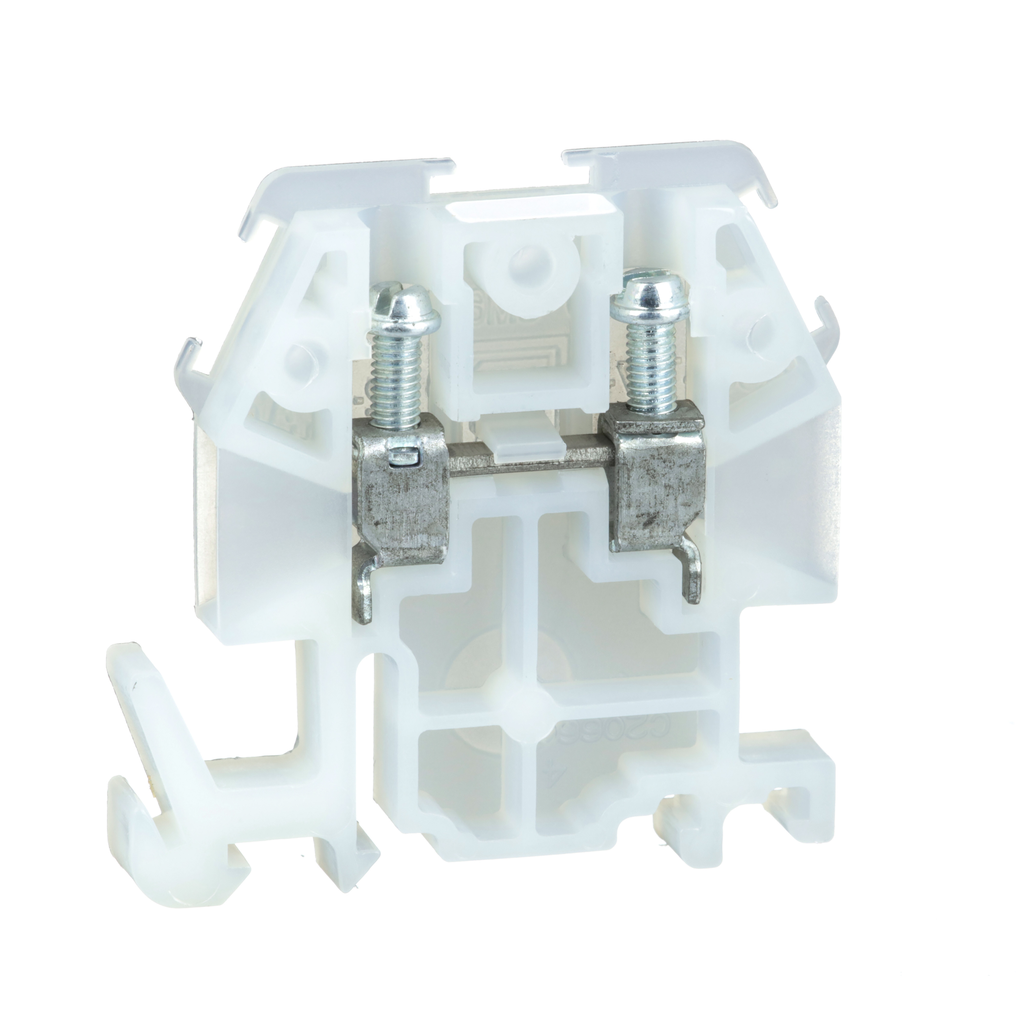

Square D 9080GM6 Terminal Block 600 Volt 30 Amp 22 to 10 AWG

Product Description

The Square D 9080GM6 is a terminal block designed for wire termination in control panels. It meets NEMA standards and is suitable for solid or stranded copper wires sized from twenty-two to ten AWG. This terminal block features a box lug connector, allowing flexibility in wire combinations.

• Accepts up to five wires: one ten AWG, one twelve AWG, one fourteen AWG, or multiple sixteen and twenty AWG wires.
• Constructed from natural nylon and UL recognized for component usage.
• Rated for up to thirty amperes and six hundred volts AC or DC.

Product Highlights

This terminal block enhances the safety and organization of control panels, supporting multiple wiring applications efficiently.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9080GM6
• Wire Size: 22-10 AWG copper
• Current Rating: 30 Amp
• Voltage Rating: 600 Volt
• Material: Nylon
• Mounting Type: 35 mm DIN rail or 9080GH track
• Certifications: UL, CSA, CE
• Country of Origin: Mexico
